Endurance® External Grade Pipe Labels
Endurance® External Grade Pipe Labels

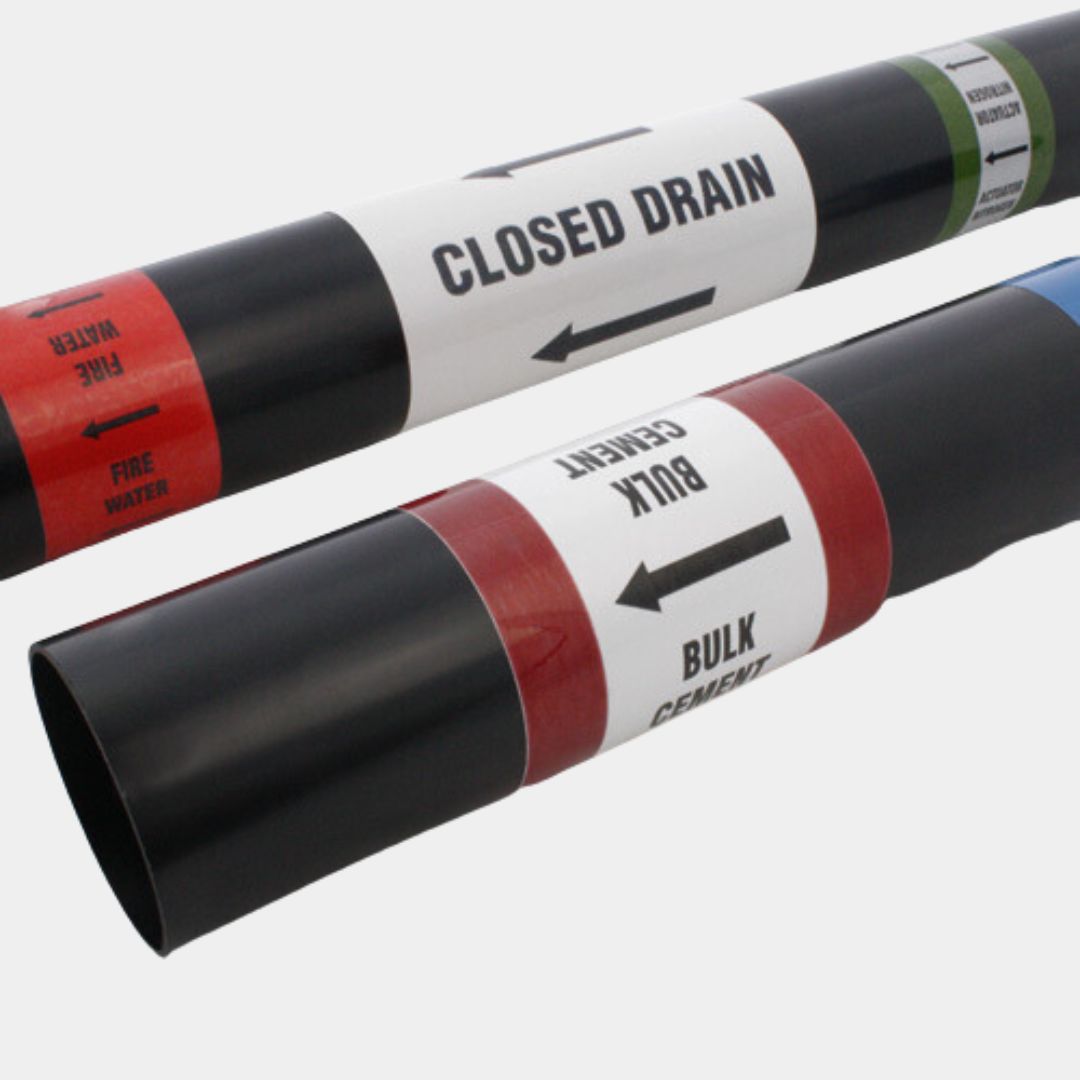

Silver Fox Endurance® External Grade Pipe Labels are made for demanding environments. Typically this solution would be used in the oil and gas industry to identify process pipes both on and offshore, or other critical applications.
- 6500 hours accelerated UV testing
- Match RAL/Pantone colour specifications
- Made from durable polyester
- Strong acrylic adhesive
- Custom made to your requirements
Share
The Endurance® Range is Trusted by...
Time Saving with Endurance® External Grade Pipe ID
We take pride in our in-house manufacturing facility located right here in the UK. By producing locally, we can ensure fast turnaround times from production to delivery and ensure that the labels meet your exact requirements.
-
6500 Accelerated UV Testing
Pipe tape colors & pipe markings used are taken from the BS 1710 (BS 4800 colors), ISO 14726 standards, and the ASME (ANSI) A13.1 2007 North American Pipe Marking Standard.
-
Strong PVC Adhesive
Endurance® External Grade Pipe ID tape has been designed and manufactured to ensure maximum durability for long-term bonding and quality of print.
-
Easy Peel Release Liner
Endurance® External Grade Pipe ID use a specially designed release liner so that you can quickly and easily peel the label ready for application.
Technical Information
Material Specification
- Material: Self-adhesive Polyester
- Thickness: 50 micron
Available Dimensions
- Widths (inches): 1.97, 3.94
- Lengths (feet): 82, 164
Product Testing
- Reach: Reach Compliant
- Elevated Temperature: MIL-STD-202G Method 108A - 2000 hours @ 158°F to 212°F*
- Low Temperature: MIL-STD-810F Method 502.4 - 72 hours @ -40°F
- Moisture Resistance: MIL-STD-202G Method 106G
- Salt Mist Spray: IEC60068-2-52 Test Kb Salt Mist (Cyclic)
- UV Weathering: ISO 4982 Part 3 Method A Cycle 1 - 6500 hours
- H2S Sour Gas: Exposure (2% H2S)
Printing & Software Requirements
- Produced bespoke in our factory to your exact requirements. Order quantities from 1 roll x 82 feet. For more information call our Sales Team on +1 (833) 848-8484 or email sales@silverfoxlabeling.com
Available Colors
Pipe labeling colors & pipe markings used are taken from the BS 1710 (BS 4800 colors), ISO 14726 standards and the ASME (ANSI) A13.1 2007 North American Pipe Marking Standard.
We can also match your RAL/Pantone color specifications along with any service message/arrows you require.
Storage Instructions
- Storage Instructions: Store between 50ºF (10ºC) and 77ºF (25ºC)
- Conditions: Keep in dark conditions
- Humidity Resistance: 35% to 65% RH
Typical Applications
Typically this solution would be used in the oil and gas industry to identify process pipes both on and offshore, or other critical applications.
We've Got You Covered...
Our custom pre-print service helps free-up valuable extra resource. We will pre-print your labels then deliver to your sites across the US, making a very real contribution by helping you to meet tight project deadlines.
