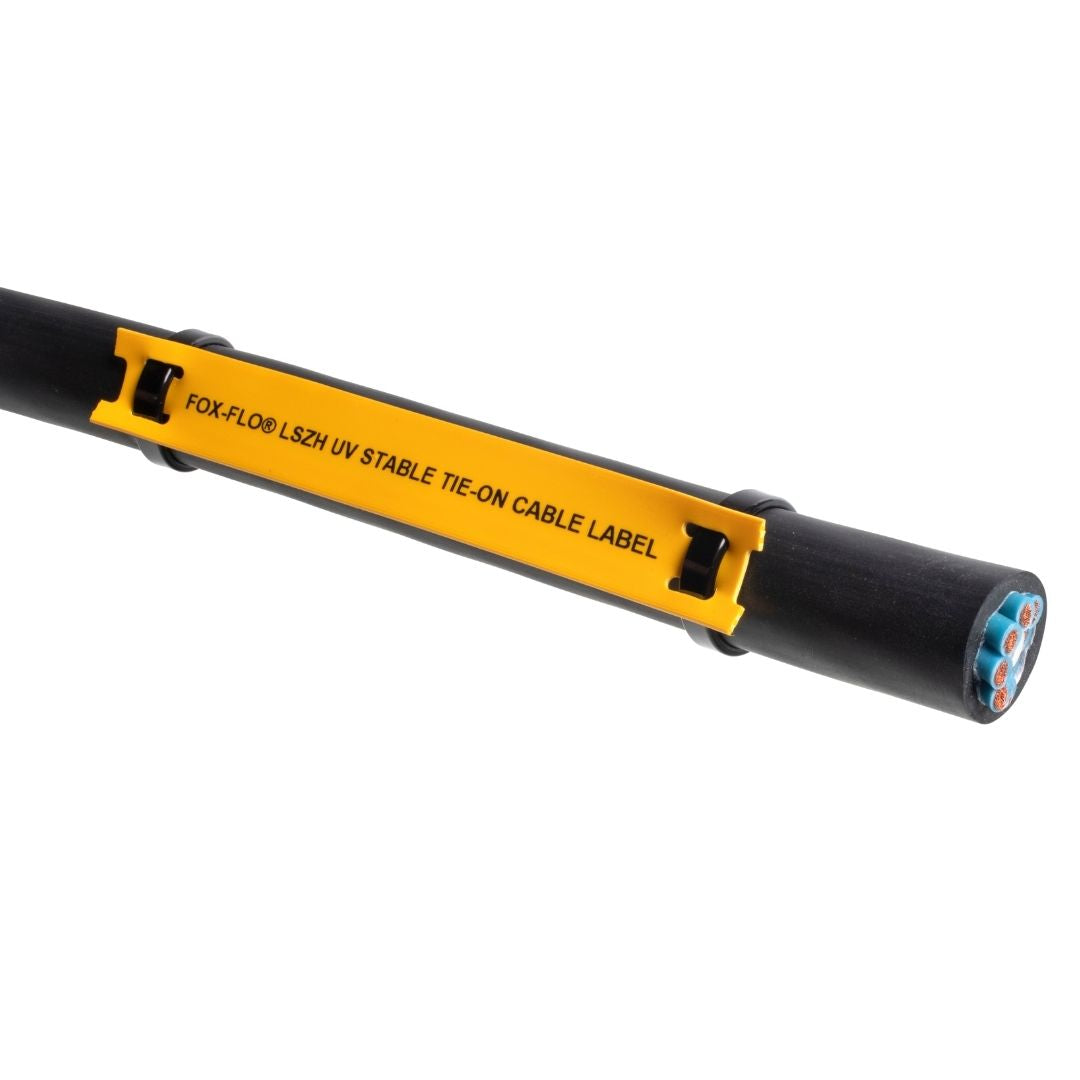

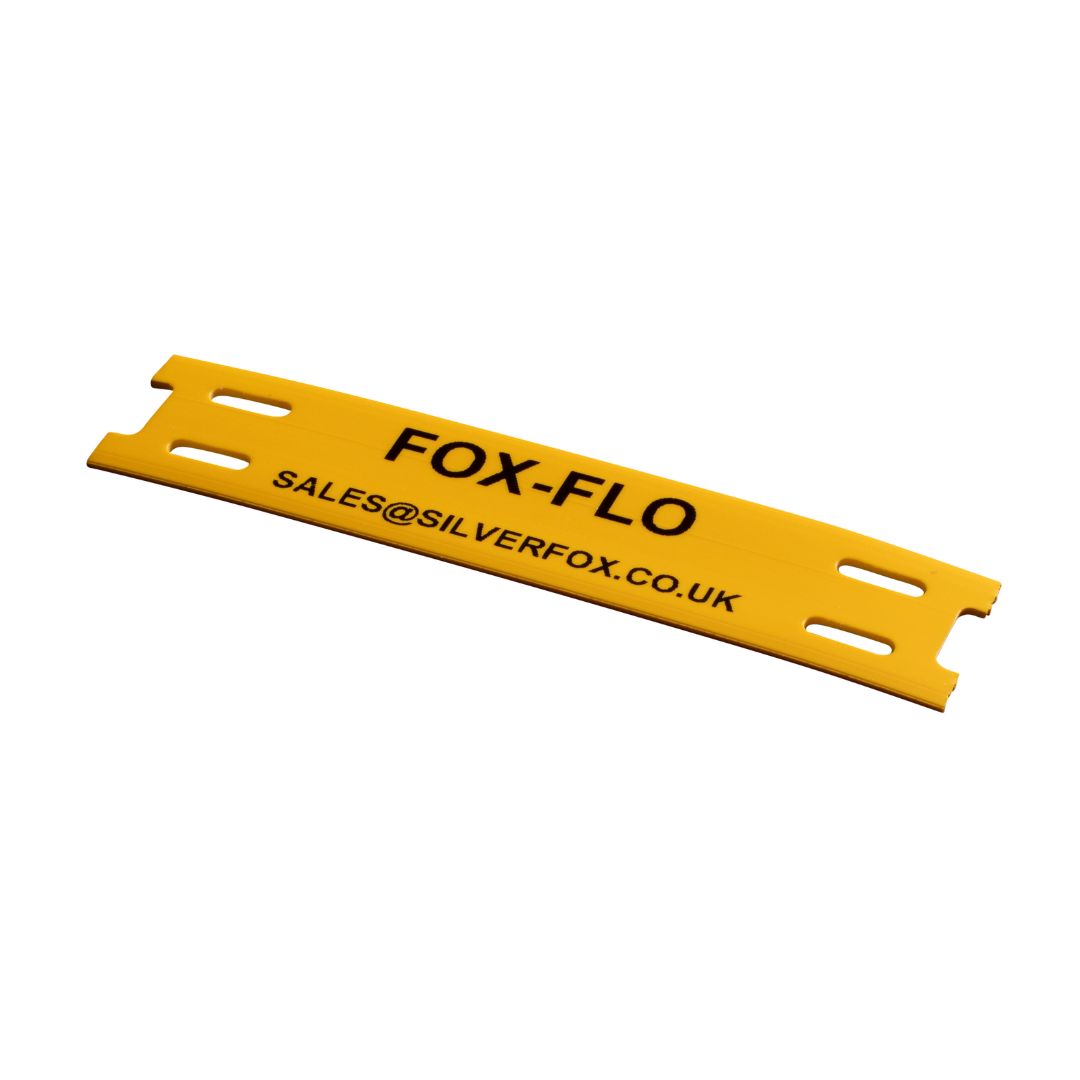

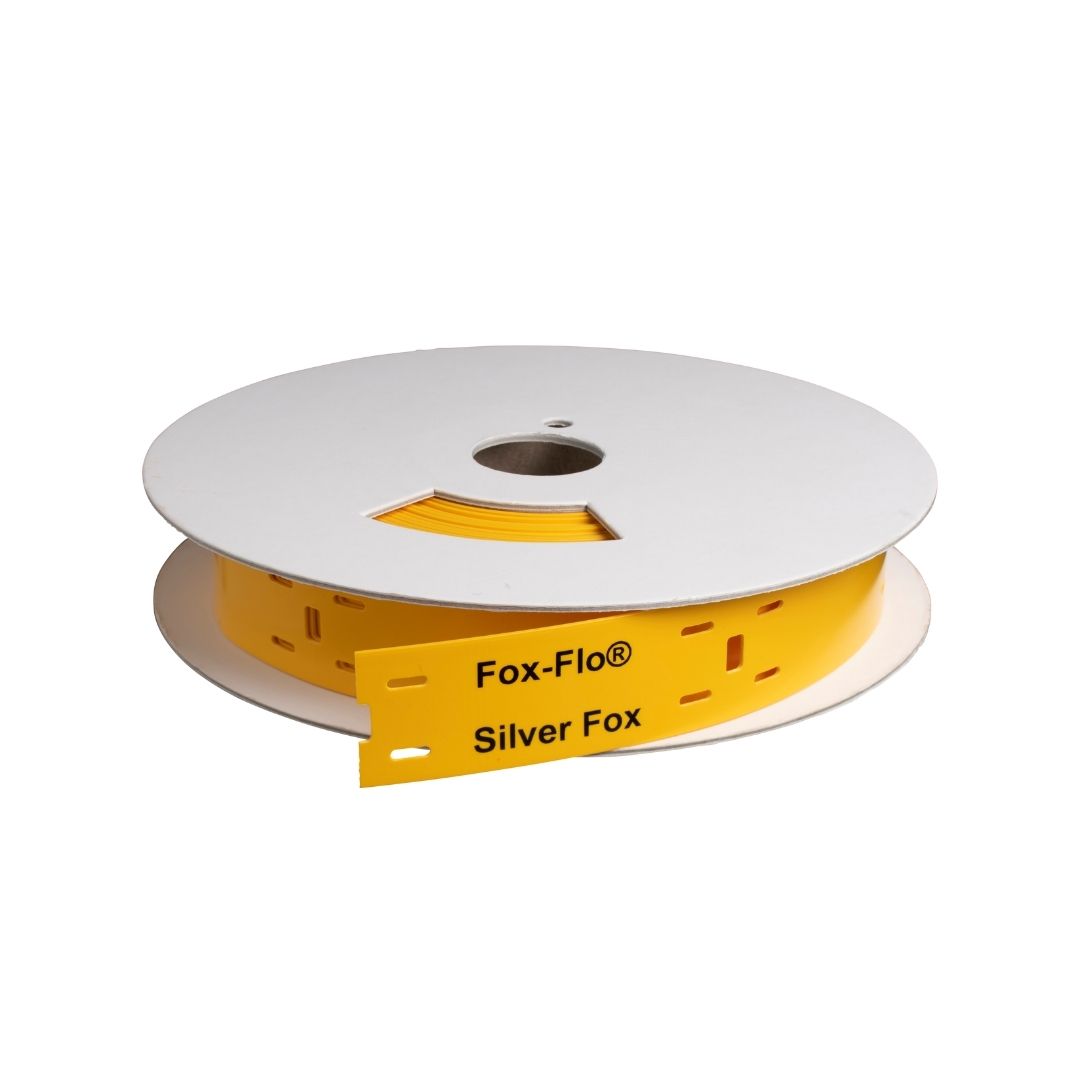

Fox-Flo® UV Stable, LSZH Tie-on Cable Labels

Fox-Flo® UV Stable, LSZH Tie-on Cable Labels

$629.93 USD
$629.93 USD
Sale Sold out

Fox-Flo® is one of the highest-tested labels on the market. Manufactured only by Silver Fox, Fox-Flo® ensures the greatest levels of durability in the most demanding of environments.

  • Plenum Tested
  • Long-Term Outdoor Use (8,000 hrs accelerated UV)
  • Rapid Printing with the Fox-in-a-Box®
  • London Underground Approved

When printing with the Fox-in-a-Box® the user will receive the following, free of charge:

  • Remote training to get you up and running as soon as possible.
  • Ongoing remote support to ensure you hit your project deadlines.
  • Feature updates to future-proof your investment so you stay on trend and don't need to buy a new solution next year.

The LGS4 guidance system is required to print these labels with the Fox-in-a-Box®

Download Datasheet Here

SKU: LCLZ1-5025TY | Labels Per Pack: 480
View full details

Fox-Flo® is Trusted by...

FOX-IN-A-BOX® RANGE

Lower Maintenance & Save Resources

Fox-Flo® tie-on cable labels provide long-lasting performance both internally and externally: reducing the need for frequent replacements and lowering the cost of future maintenance. Click below to save your time with Fox-Flo®.

Purchase Fox-Flo® Today

  • London Underground Approved

    Fox-Flo® labels have undergone rigorous testing to meet the stringent requirements of LUL1-085, ensuring their suitability for London Underground installations.

  • 12-15 Years UV Stability

    Fox-Flo® have been shown to withstand prolonged exposure to sunlight for 8000 accelerated UV hours, which is equivalent to 12-15 years in a Northern European climate.

  • Low Smoke Zero Halogen

    Fox-Flo® labels are made of a premium low smoke zero halogen material - an ideal choice for environments where safety and environmental concerns are paramount.

And that's not all!

  • Includes free of charge training
  • Includes free of charge support

Technical Information

Material Specification

  • Material: Fox-Flo® material, a premium LSZH (Low Smoke, Zero-Halogen) material carefully crafted in-house for its exceptional performance.
  • Operational Temperature:  -40°F to 212°F (-40°C to 100°C)

Available Dimensions

  • X 0.394in. Range (in.): 1.97 × 0.394, 2.76 × 0.394
  • X 0.591in. Range (in.): 1.97 × 0.591, 2.76 × 0.591, 3.54 × 0.591, 4.33 × 0.591, 5.12 × 0.591
  • X 0.984in. Range (in.): 1.97 × 0.984, 2.76 × 0.984, 3.54 × 0.984, 4.33 × 0.984, 5.12 × 0.984
  • X 1.97in. Range (in.): 2.76 × 1.97, 3.54 × 1.97, 4.33 × 1.97, 4.33 × 1.97, 5.12 × 1.97
  • 2 across available only in x 0.394in.
  • 3 across available only in x 0.591in.

Product Testing

  • Reach: Reach Compliant
  • London Underground Approval: Fire Safety Performance of Material requirements of LUL 1-085.
  • BS EN ISO 4589-2:1999 Oxygen Index (Material)
  • BS 6853:1999 Annex D.8.3 Smoke Emission (Material)
  • BS 6853:1999 Annex B.1 Toxic Fume (Material)
  • EN 45545-2 R22 (Material)
  • Tested to UL 94 Section 8 ‘Vertical Burning Test’ Rating V0 (Material)
  • IMO FTPC Part 2 Smoke & Toxicity (Material)
  • IMO FTPC Part 5 Surface Spread of Flames (Material)
  • MIL-STD-810F Method 502.4 Low Temperature 72 hours @ -40°F Followed by manipulation test* (Printed Label)
  • MIL-STD-202G Method 108A High Temperature 2000 hours @ 158°F to 212°F** (Printed Label)
  • H2S Sour Gas Exposure (2% H2S) Hydrogen Sulphide (Printed Label)
  • ISO 4982 Part 3 Method A Cycle 1 UV Weathering 8000 hours (Printed Label)
  • IEC60068-2-52 Test Kb Salt Mist (Cyclic) Salt Mist Spray (Printed Label)
  • Chemical / Solvent Resistance (Printed Label)

Printing & Software Requirements

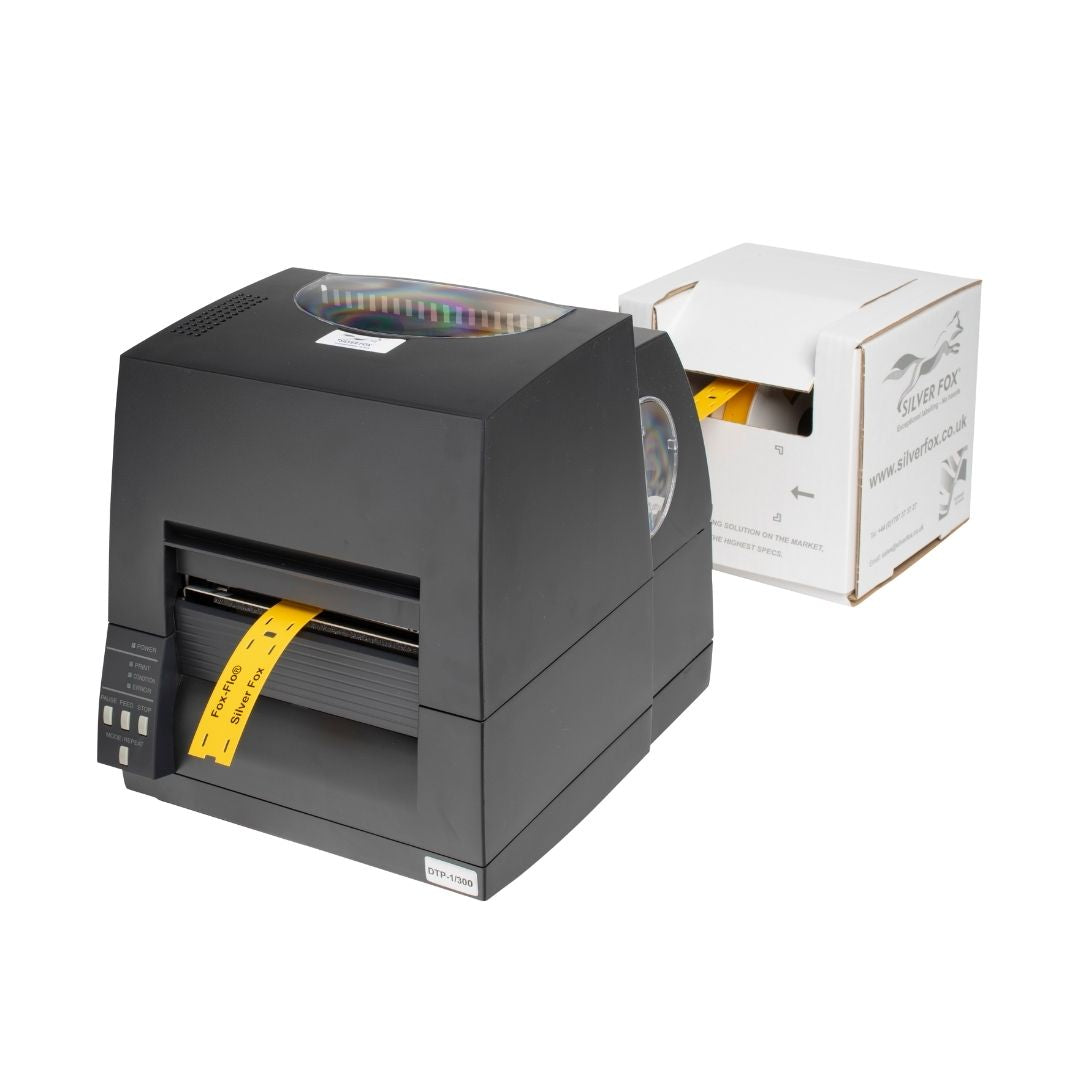

  • To achieve the best printing results, we recommend using a Fox-in-a-Box® DTP-1 thermal printer along with TSR3/300 thermal transfer ribbons.
  • Print via Fox-in-a-Box® thermal printer using ‘One software, One printer, One ribbon’ for our complete range of thermal labels. A 984ft thermal ribbon will yield approximately 3000 (x 3.54in) length labels.

*For more information call our Sales Team on +1 (833) 848-8484 or email sales@silverfoxlabeling.com

Printable Area

• FOX-FLO® Tie-on (1 Across) 4.33 x 0.591 inches: 3.15 x 0.551 inches
• FOX-FLO® Tie-on (1 Across) 4.33 x 0.984 inches: 3.15 x 0.945 inches
• FOX-FLO® Tie-on (1 Across) 4.33 x 1.97 inches: 2.91 x 1.93 inches
• FOX-FLO® Tie-on (1 Across) 5.12 x 0.591 inches: 3.94 x 0.551 inches
• FOX-FLO® Tie-on (1 Across) 5.12 x 0.984 inches: 3.94 x 0.945 inches
• FOX-FLO® Tie-on (1 Across) 5.12 x 1.97 inches: 3.70 x 1.93 inches
• FOX-FLO® Tie-on (1 Across) 1.97 x 0.591 inches: 0.787 x 0.551 inches
• FOX-FLO® Tie-on (1 Across) 1.97 x 0.984 inches: 0.787 x 0.945 inches
• FOX-FLO® Tie-on (1 Across) 2.76 x 0.591 inches: 1.57 x 0.551 inches
• FOX-FLO® Tie-on (1 Across) 2.76 x 0.984 inches: 1.57 x 0.945 inches
• FOX-FLO® Tie-on (1 Across) 2.76 x 1.97 inches: 1.34 x 1.93 inches
• FOX-FLO® Tie-on (1 Across) 3.54 x 0.591 inches: 2.36 x 0.551 inches
• FOX-FLO® Tie-on (1 Across) 3.54 x 0.984 inches: 2.36 x 0.945 inches
• FOX-FLO® Tie-on (1 Across) 3.54 x 1.97 inches: 2.13 x 1.93 inches
• FOX-FLO® Tie-on (2 Across) 1.97 x 0.394 inches: 1.10 x 0.315 inches (x2)
• FOX-FLO® Tie-on (2 Across) 2.76 x 0.394 inches: 1.89 x 0.315 inches (x2)
• FOX-FLO® Tie-on (3 Across) 4.33 x 0.591 inches: 3.15 x 0.551 inches (x3)
• FOX-FLO® Tie-on (3 Across) 5.12 x 0.591 inches: 3.94 x 0.551 inches (x3)
• FOX-FLO® Tie-on (3 Across) 1.97 x 0.591 inches: 0.787 x 0.551 inches (x3)
• FOX-FLO® Tie-on (3 Across) 2.76 x 0.591 inches: 1.57 x 0.551 inches (x3)
• FOX-FLO® Tie-on (3 Across) 3.54 x 0.591 inches: 2.36 x 0.551 inches (x3)

Available Colors

  • Magenta, White, Yellow, Blue, Orange, Red

*Earth option available to order. Contact sales@silverfoxlabeling.com for more information

Storage Instructions

  • Storage Instructions Store between 50ºF (10ºC) and 77ºF (25ºC)
  • Conditions Keep in dark conditions
  • Humidity Resistance 35% to 65% RH

FOX-IN-A-BOX® RANGE

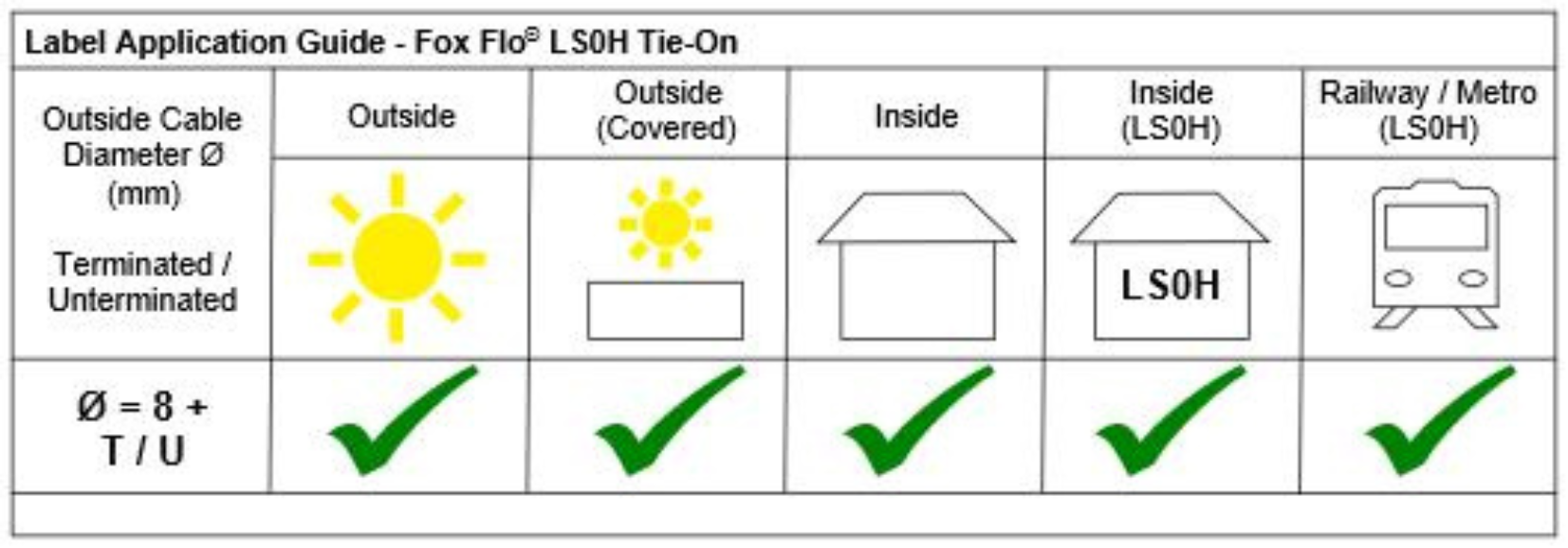

Typical Applications

Fox-Flo® is versatile and widely used in applications such as London Underground, offshore oil and gas installations, marine environments, and any industry where LSZH materials are a requirement.
