Silver Fox Limited

Legend™ Laser 2-Part System Cable Markers

Legend™ Laser 2-Part System Cable Markers

Regular price $90.44 USD
Regular price Sale price $90.44 USD
Sale Sold out

Our 2-part system is a really easy and fast way of producing wire markers. The system consists of a clear plastic tubing with 2 recesses; one for the label and one for the wire. Supplied as A4 sheets for convenient printing through any ordinary office laser printer with its normal cartridge.

  • Easy to use and apply
  • Change label after termination
  • Laser Printable A4 Sheets
  • Wide range of diameters
  • Available with the Fox-in-a-Box®

Download Datasheet Here

*Barcoding/QR Coding/Graphics functionality is available via the Professional level Labacus Innovator®

SKU:SKU: L75/20L(10) | Labels Per Pack: 750

View full details

LASER RANGE

Time Saving with Legend™ Laser 2-Part System Labels

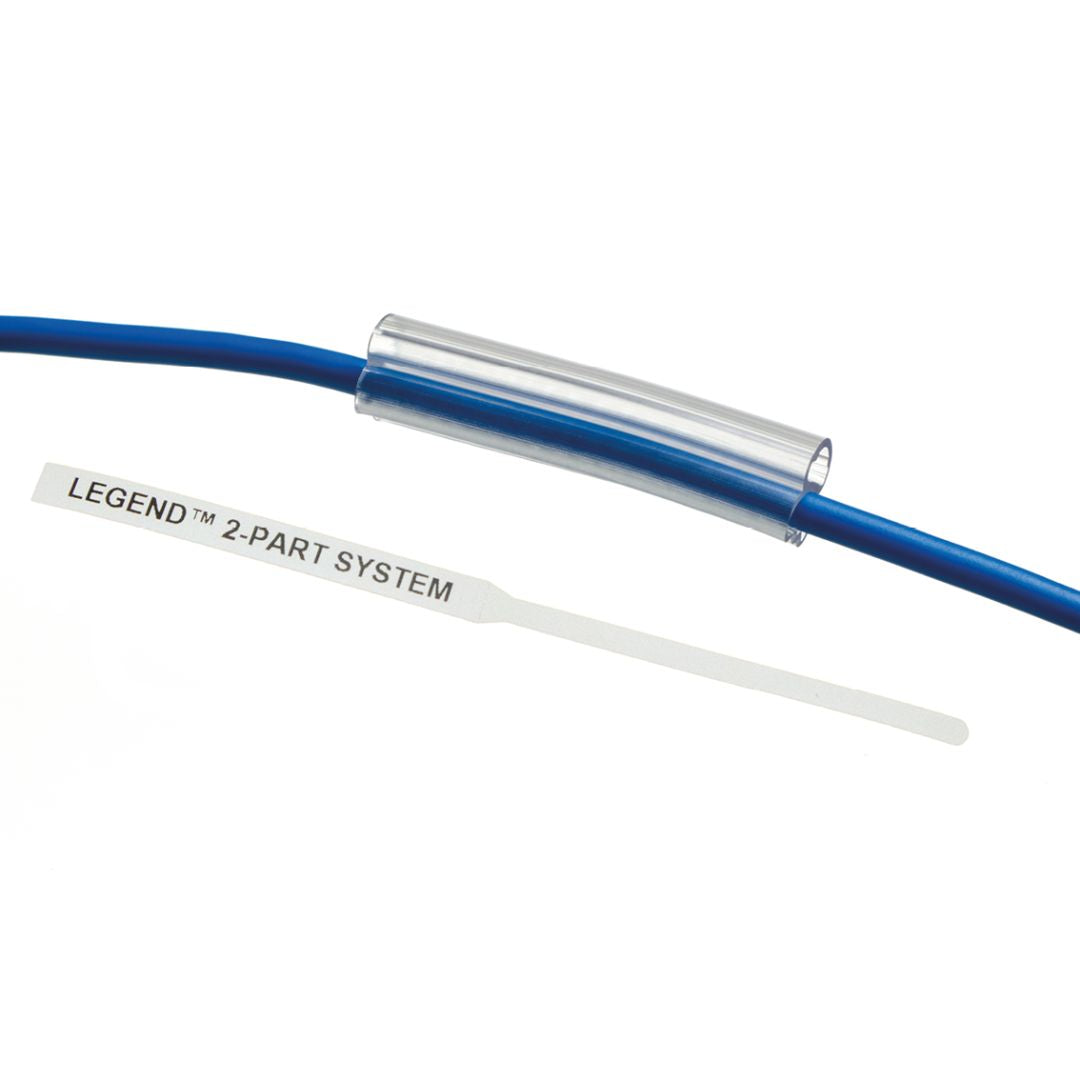

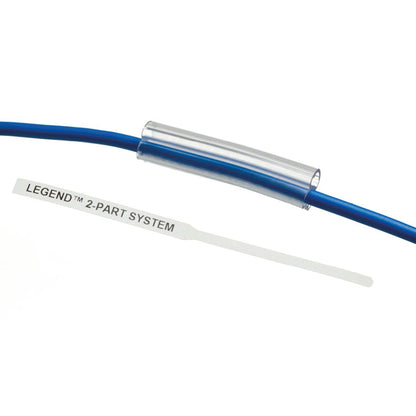

The key benefit of the 2-part system is that the wire ID can be changed even after termination without cutting off the wire. The flexible polyester label has a special ‘bottle’ shape allowing it to be pulled into the clear tubing, this style makes it quick and easy to ‘load/unload’ label.

Purchase Legend™ 2-Part System Labels
  • 3 Available Sizes

    Choice of 3 lengths: 0.787 inches, 1.18 inches, and 1.97 inches. Tubing is available in various sizes depending on the diameter of the cable; whatever the size, it still takes the same label.

  • Change Terminated Idents

    Due to this special design, it is possible to slide blank tubing onto the wire prior to termination. The label can then be inserted at any time during or after termination. The longer the label, the more characters that can be printed.

  • No Special Equipment Needed

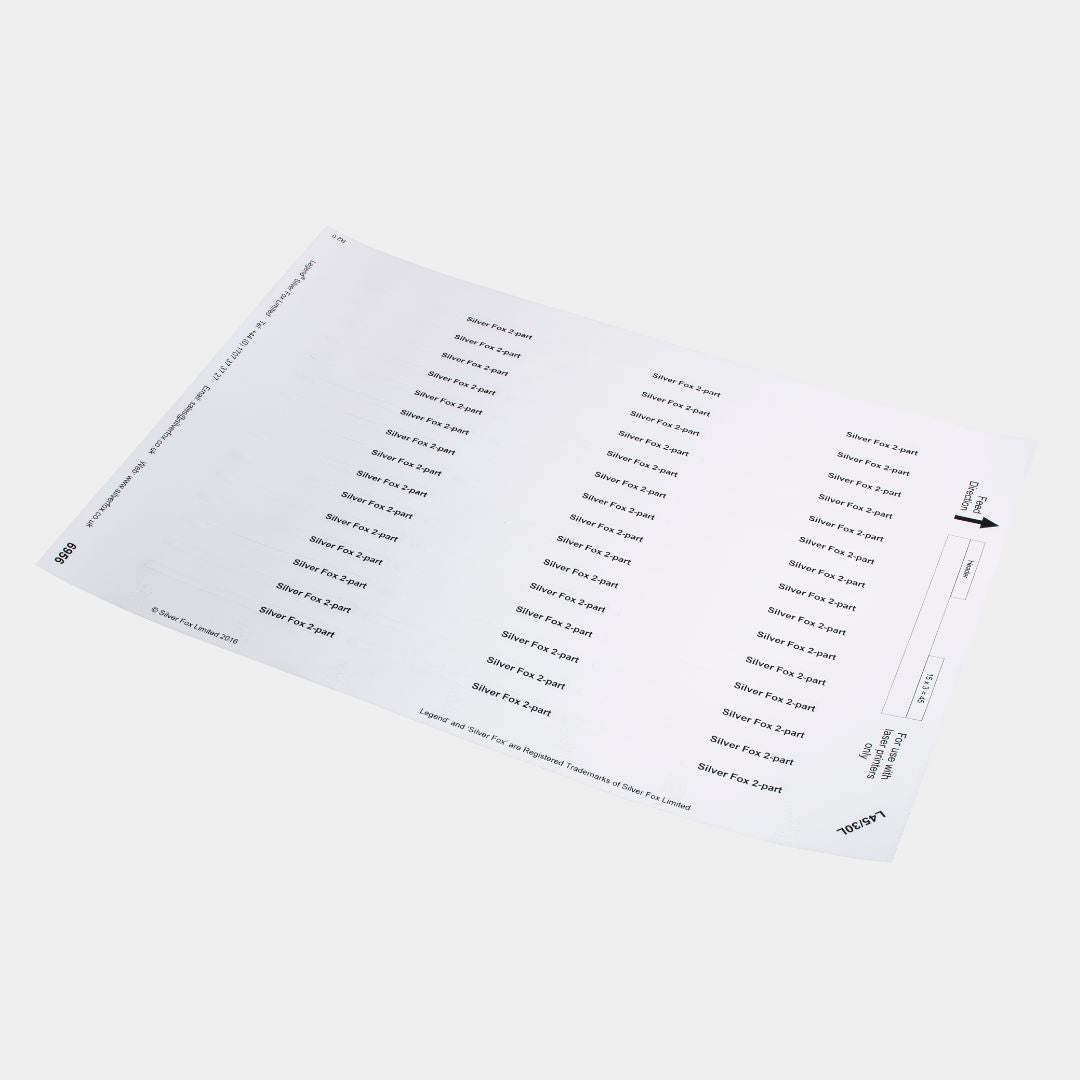

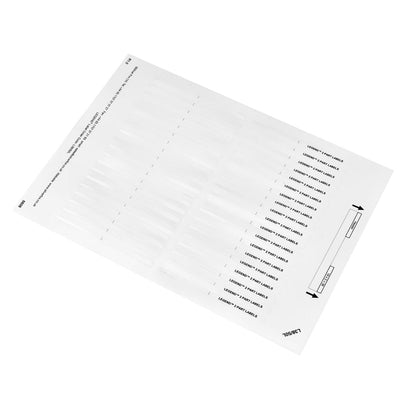

    Print 75 cable labels in the same time it takes to print a piece of paper. Supplied in pre-cut A4 polyester sheets, so that the labels can then be easily removed from the sheet.

Purchase With Labacus Innovator & Receive...

  • Free of charge training
  • Free of charge support

Technical Information

Material Specification

  • Material: Polyester

Available Dimensions

  • Available Label Dimensions (inches): 0.787 x 0.197, 1.18 x 0.197, 1.97 x 0.197
  • Wide range of diameters from OD Ø 0.0472 inches to 0.551 inches.

Product Testing

  • Reach Compliant: Yes
  • Low Temperature Testing 72 hours @ -40°F MIL-STD-810F Method 502.4
  • High Temperature Testing 500 hours @ 158°F MIL-STD-202G Method 108A
  • Moisture Resistance - MIL-STD-202G Method 106G
  • Hydrogen Sulphide - HS2 Sour Gas Exposure (2% H2S)
  • UV Weathering 500 hours* - ISO 4982 Part 3 Method A Cycle 1
  • Salt Mist Spray according to Lloyds Register Type Approval System - IEC60068-2-52 Test Kb Salt Mist (Cyclic)

Limited external applications generally away from direct sunlight but may be suitable in control boxes etc. Labels generally for internal use such as control rooms, power stations, substations etc.

Printing & Software Requirements

  • Print with your regular office laser printer
  • Labacus Innovator® Basic/Advanced/Professional - Windows Only
  • All templates included in Labacus Innovator® Software. To trial labels, no need to buy software. Download FOC Lite software (includes 3 days trial FOC of Basic/Advanced/Professional levels).

*For more information call our Sales Team on +1 (833) 848-8484 or email sales@silverfoxlabeling.com

Printable Area

  • LEGEND™ 2 part Wire Markers (1.97 inches) - Laser | L38/50L: 1.94 inches x 0.165 inches
  • LEGEND™ 2 part Wire Markers (1.18 inches) - Laser | L45/30L: 1.18 inches x 0.164 inches
  • LEGEND™ 2 part Wire Markers (0.787 inches) - Laser | L75/20L: 0.787 inches x 0.164 inches

Available Colors

  • White

*Also, consider color laser printer in conjunction with Advanced/Professional levels of software for producing color font/background or Resistor Color-Coding.

Storage Instructions

  • Storage Instructions Store between 50ºF (10ºC) and 77ºF (25ºC)
  • Conditions Keep in dark conditions
  • Humidity Resistance 35% to 65% RH

LASER RANGE

Typical 2-Part System Label Applications

Typical uses include; sub-stations, control rooms or any application where the ID is likely to need frequent changes.

Purchase Legend™ 2-Part System Labels

Why should you chose our laser labels?

LASER RANGE

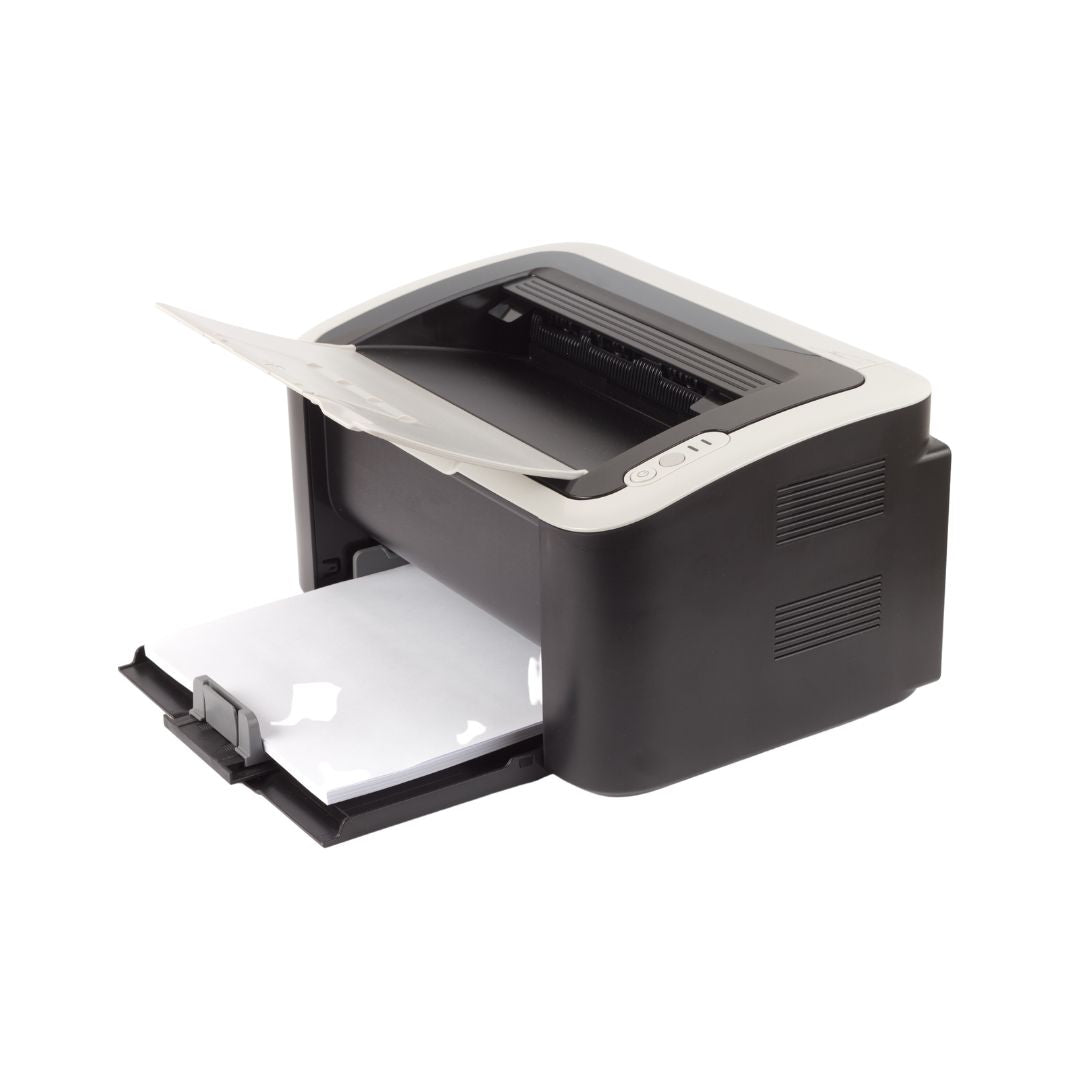

Print With Your Office Laser Printer & Labacus Innovator® Software

Since no special equipment is required, 75 labels can be printed in 20 seconds (the time it takes for the sheet to run through the printer) - using this solution is simple and fast.

Purchase Legend™ 2-Part System Labels
