Legend™ LSZH Ladder Heatshrink Cable Markers
Legend™ LSZH Ladder Heatshrink Cable Markers

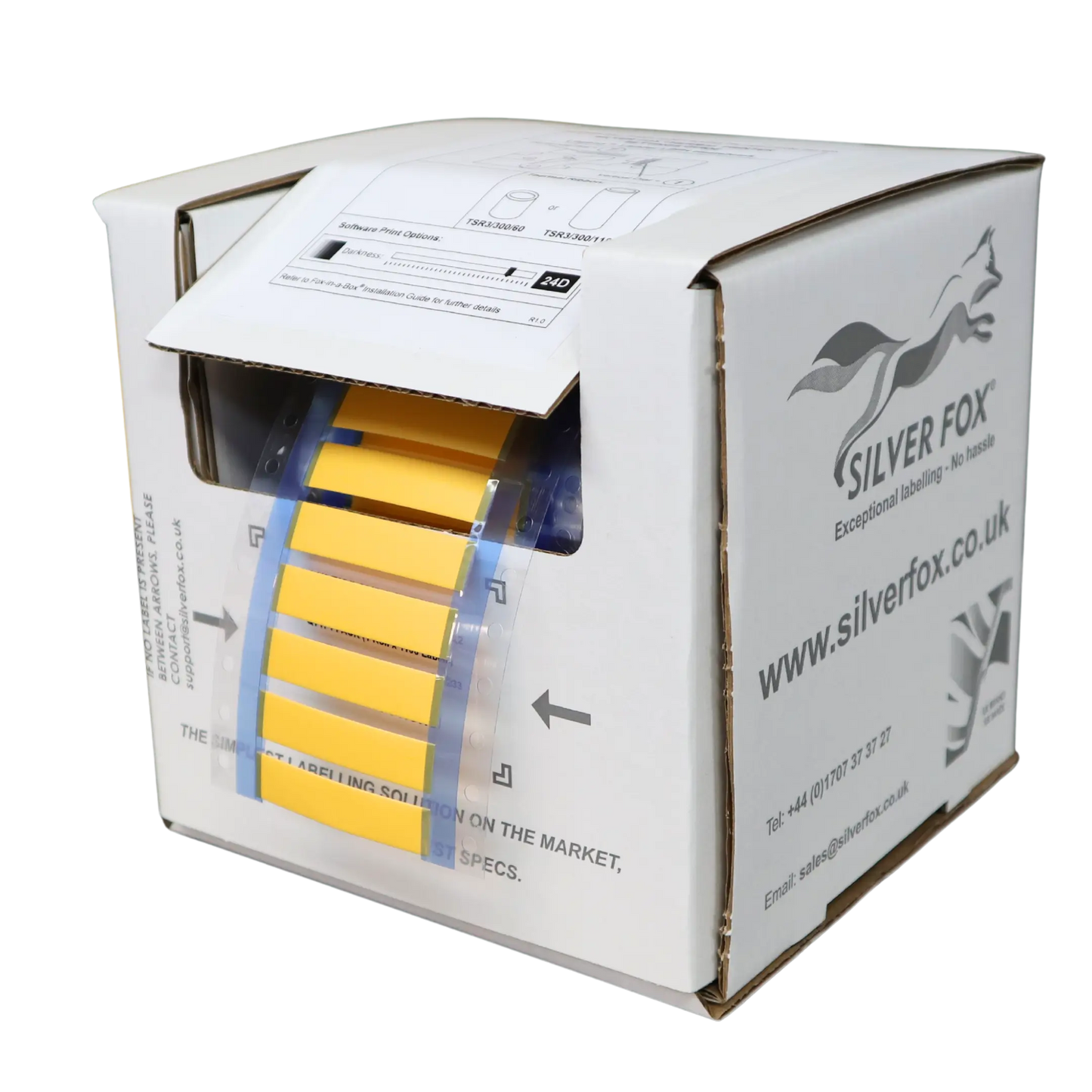

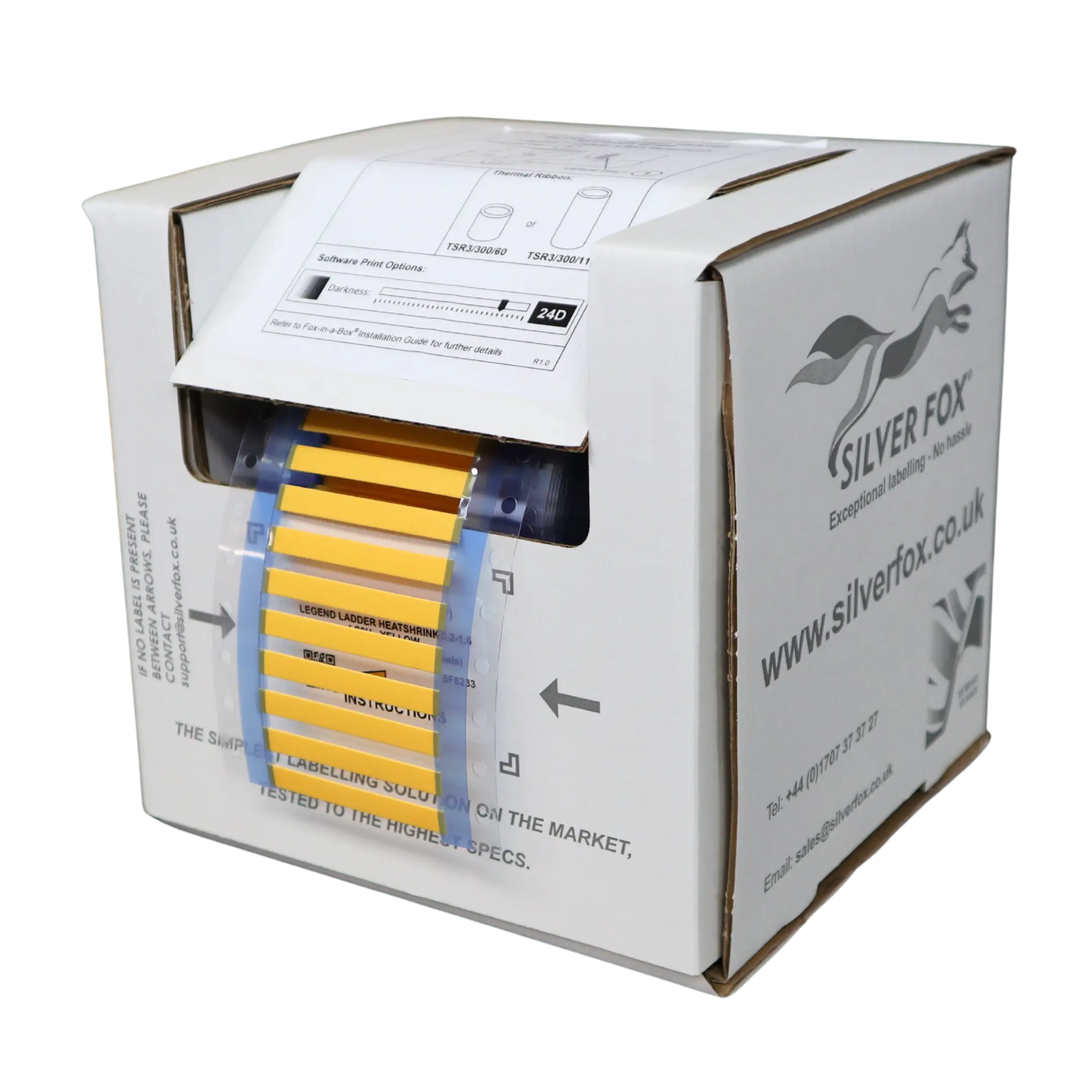

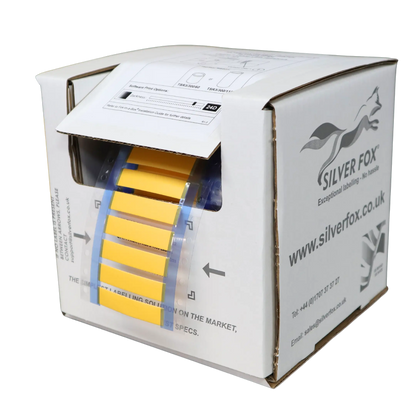

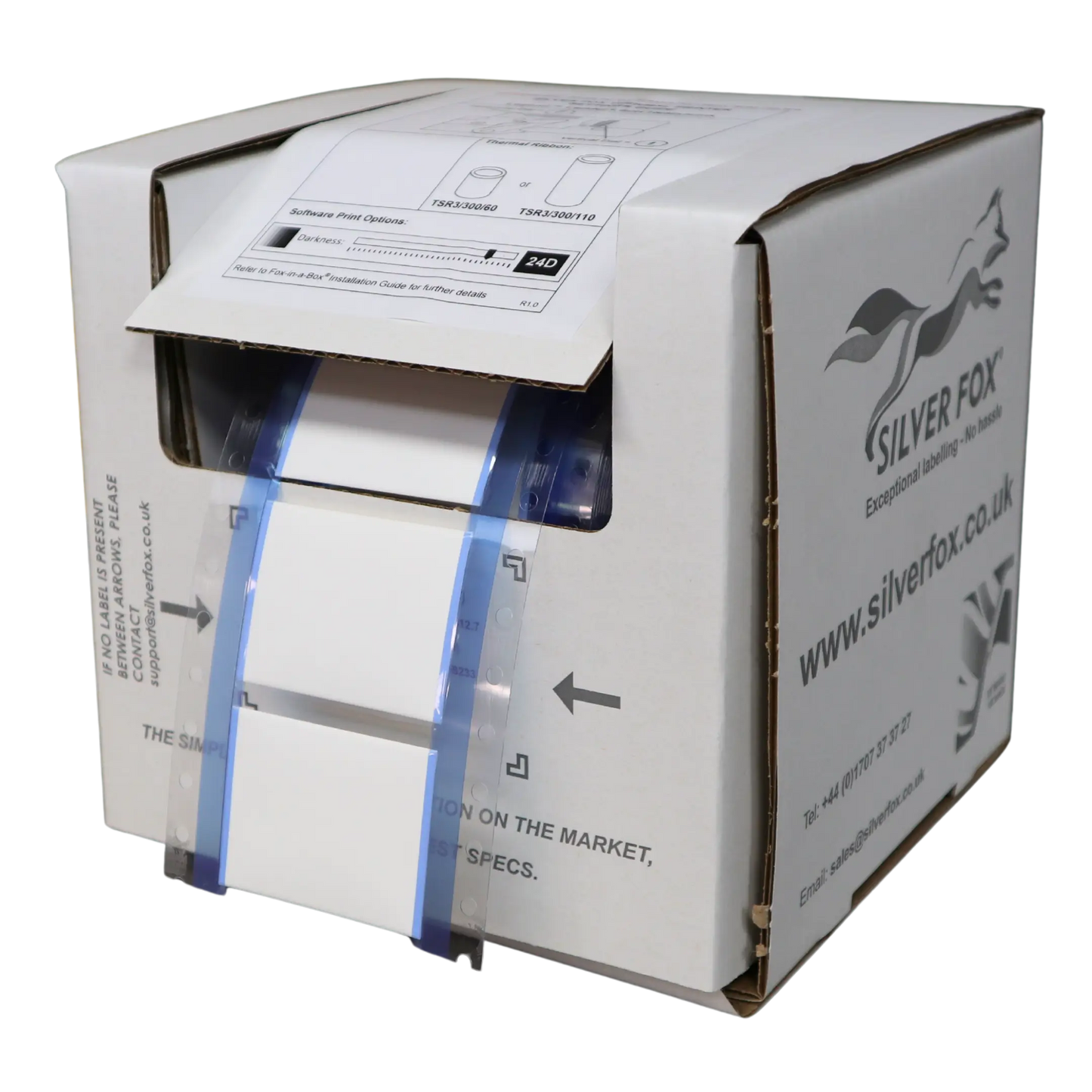

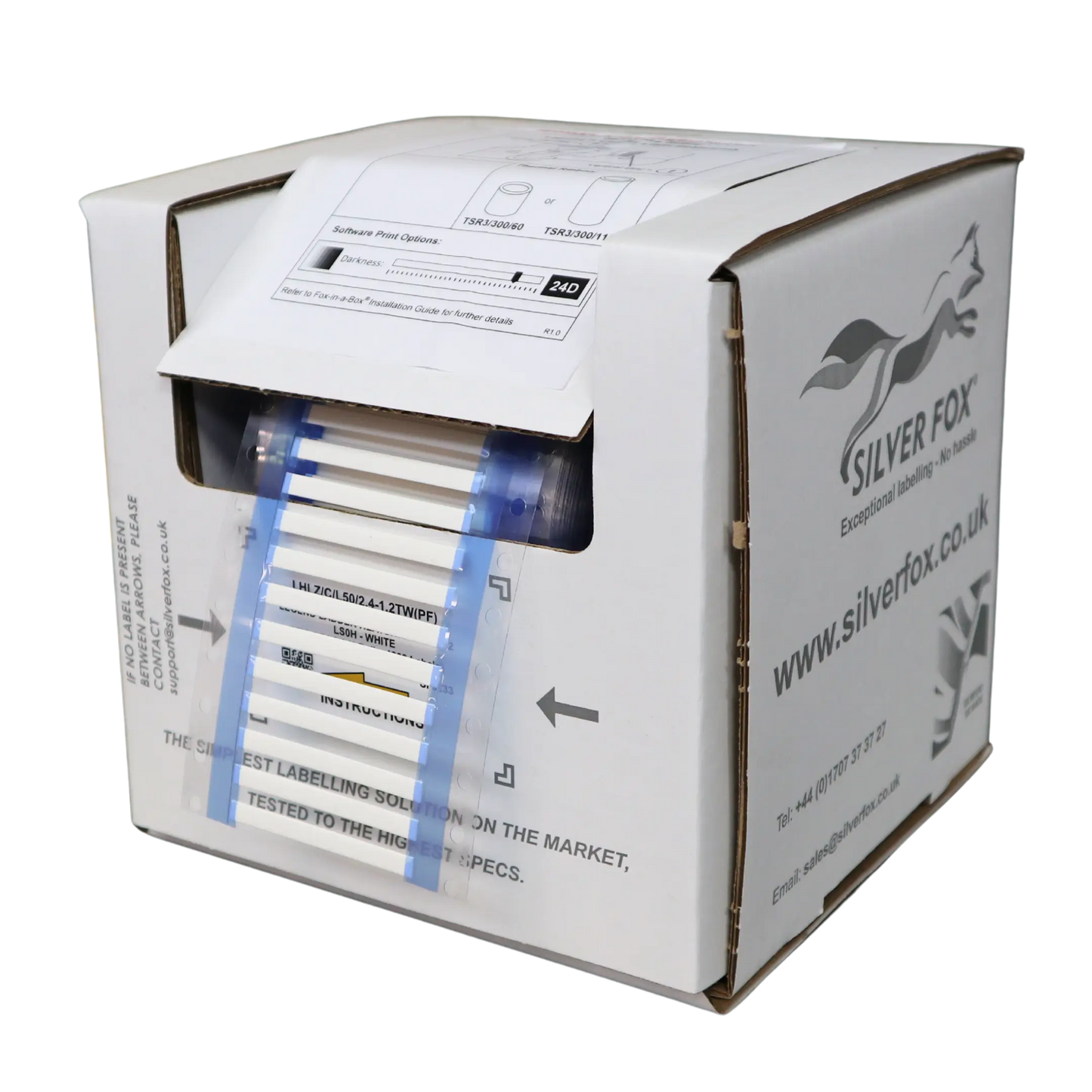

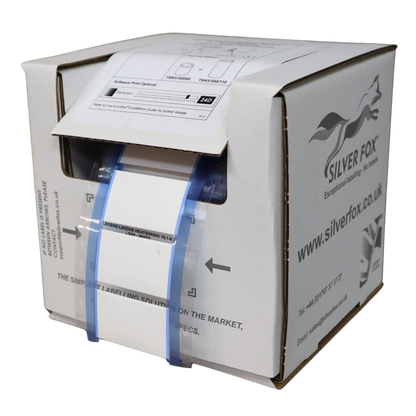

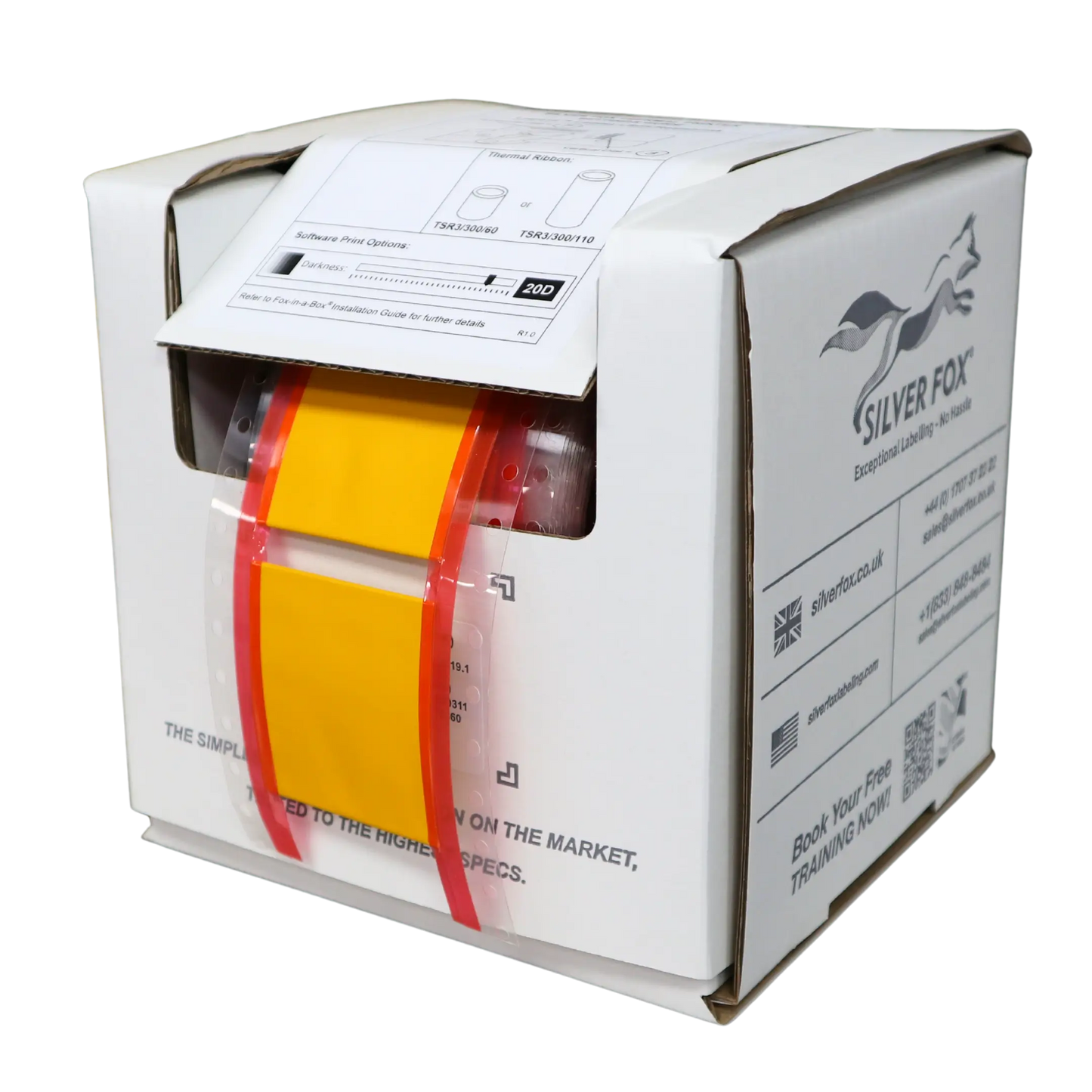

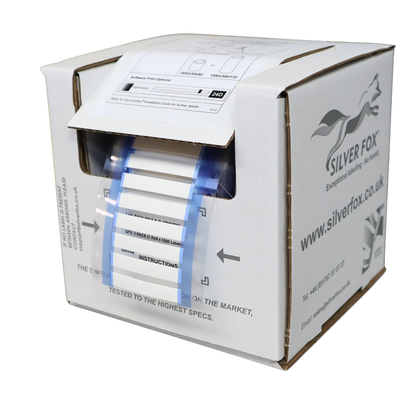

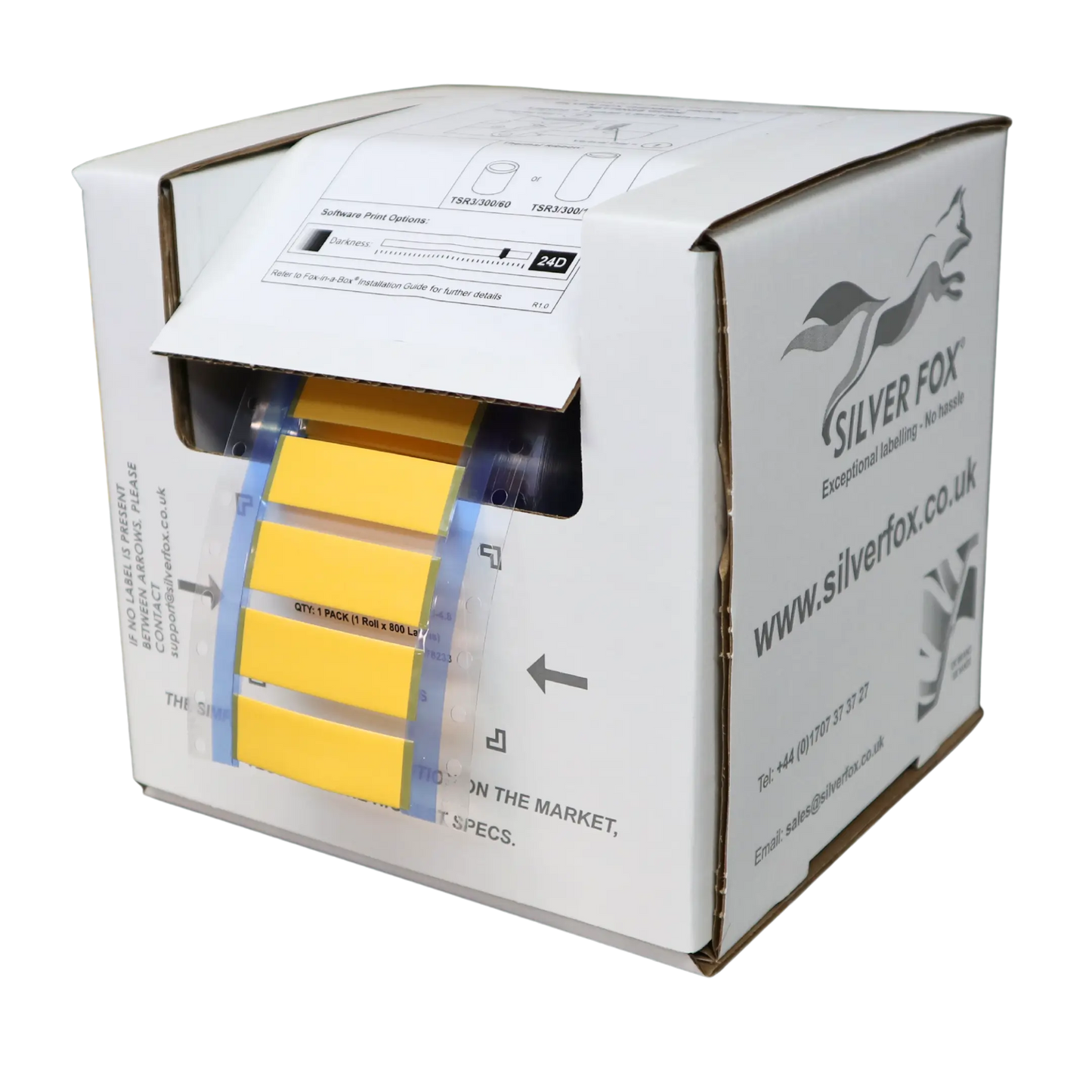

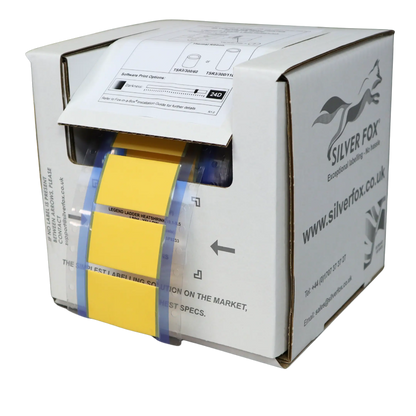

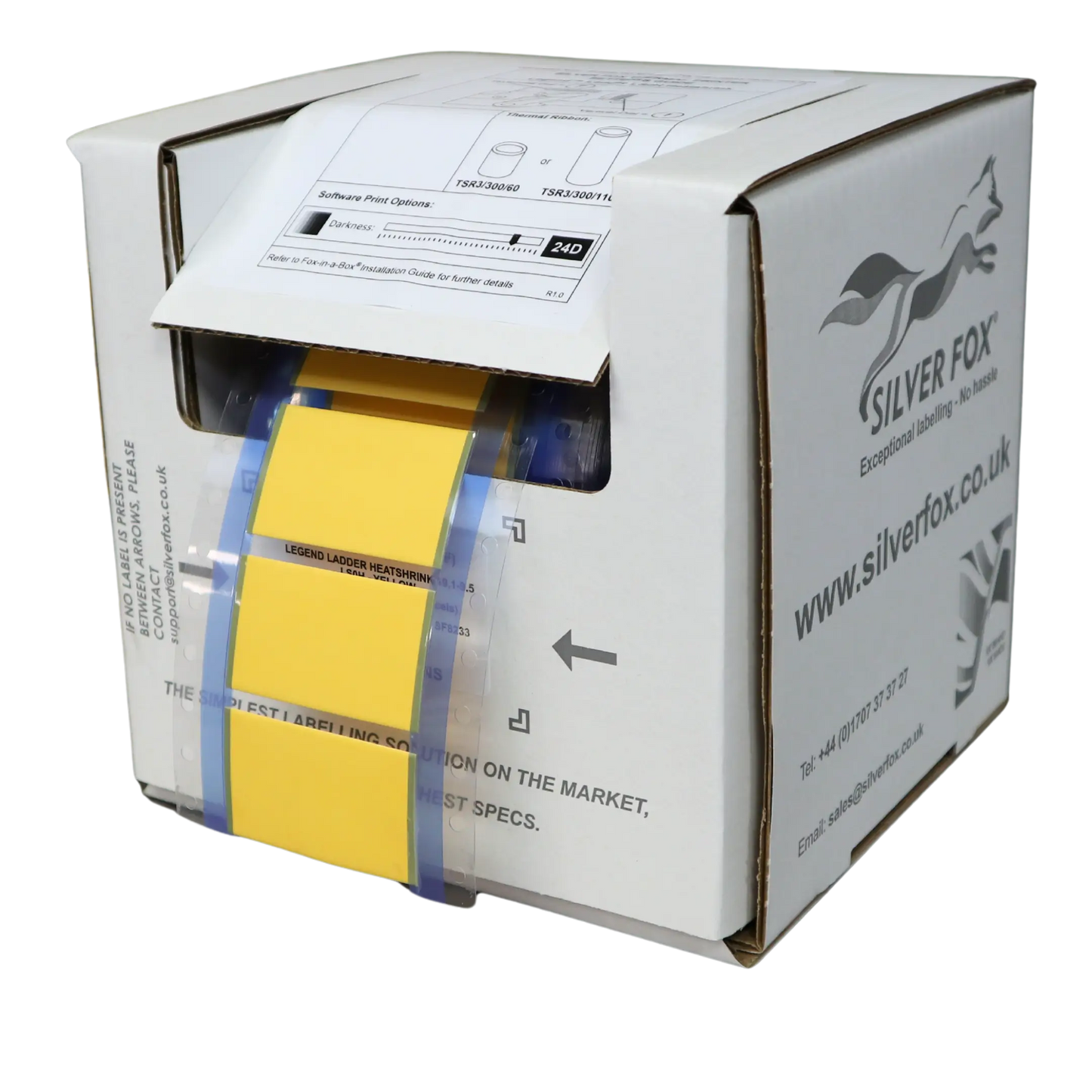

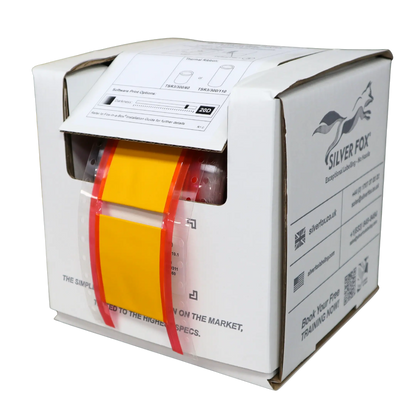

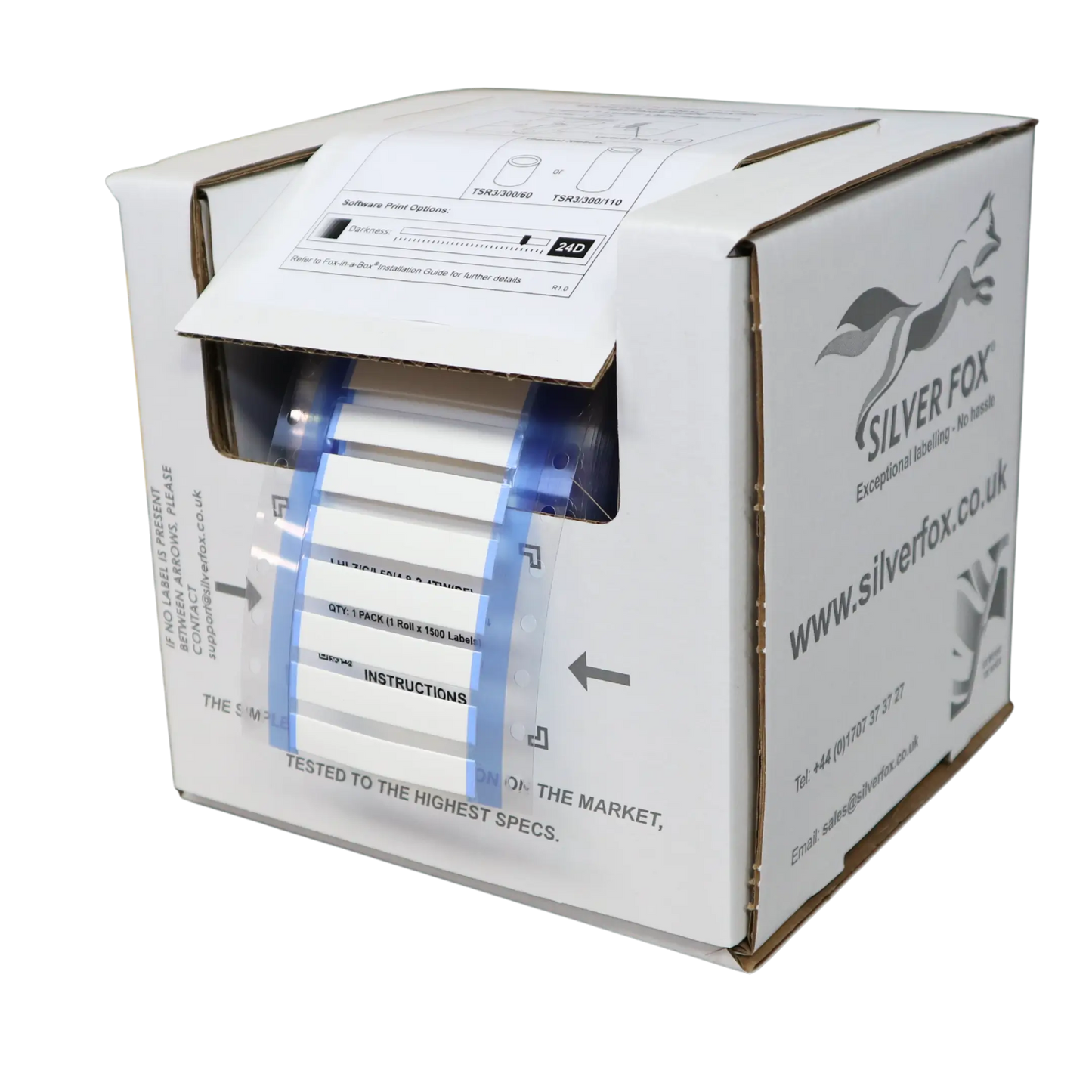

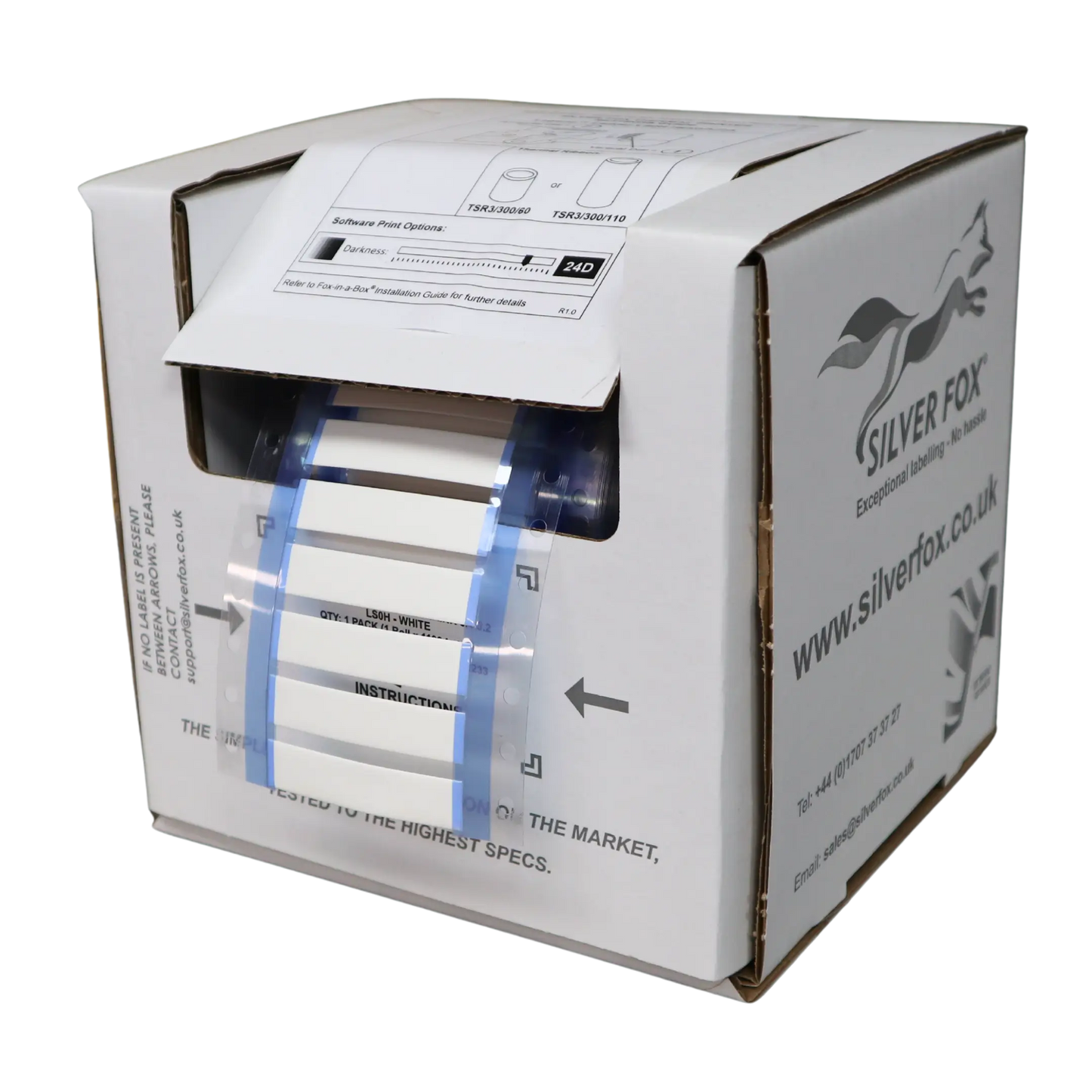

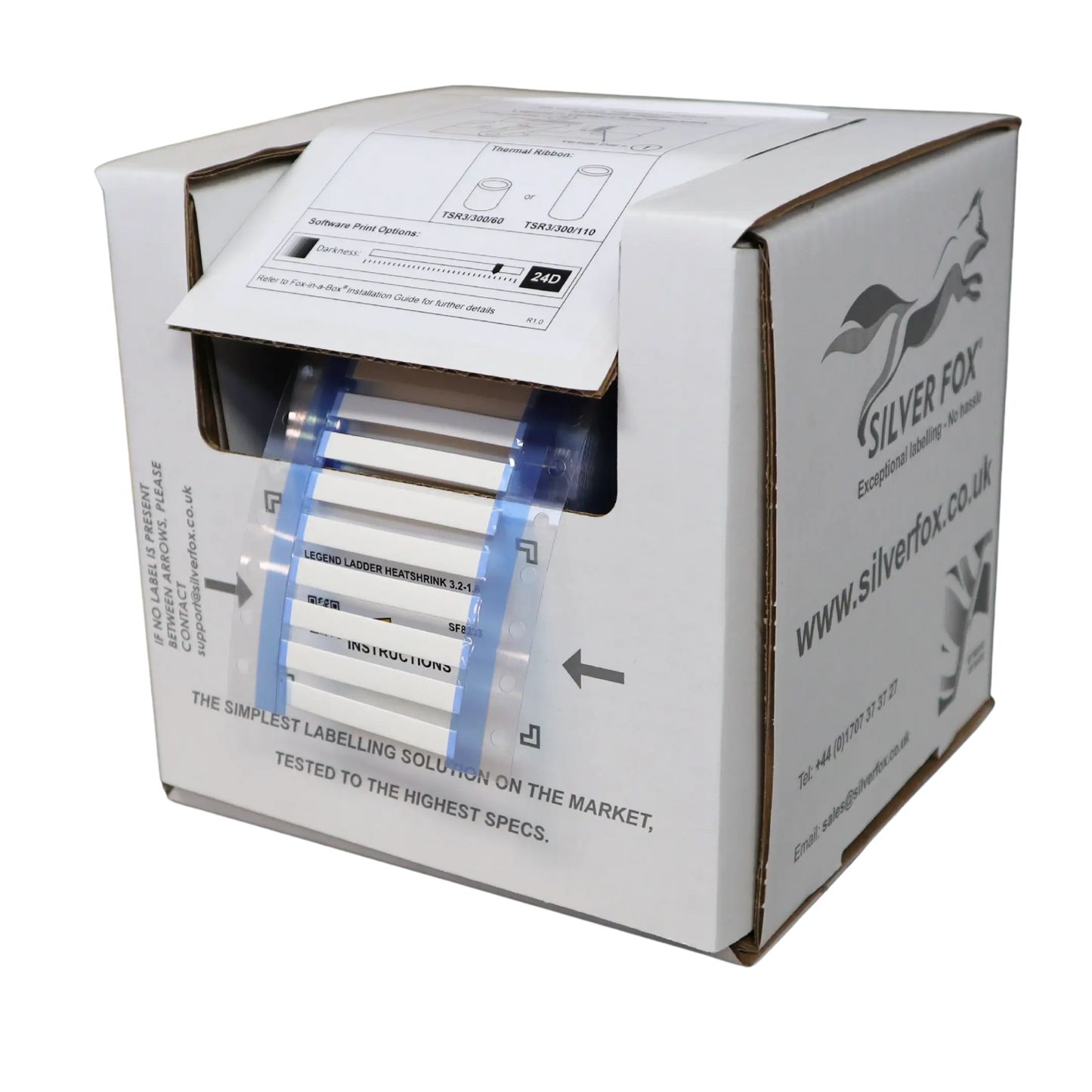

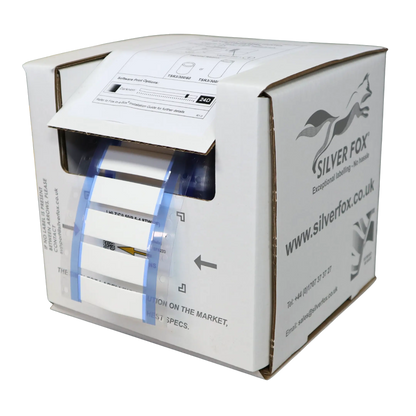

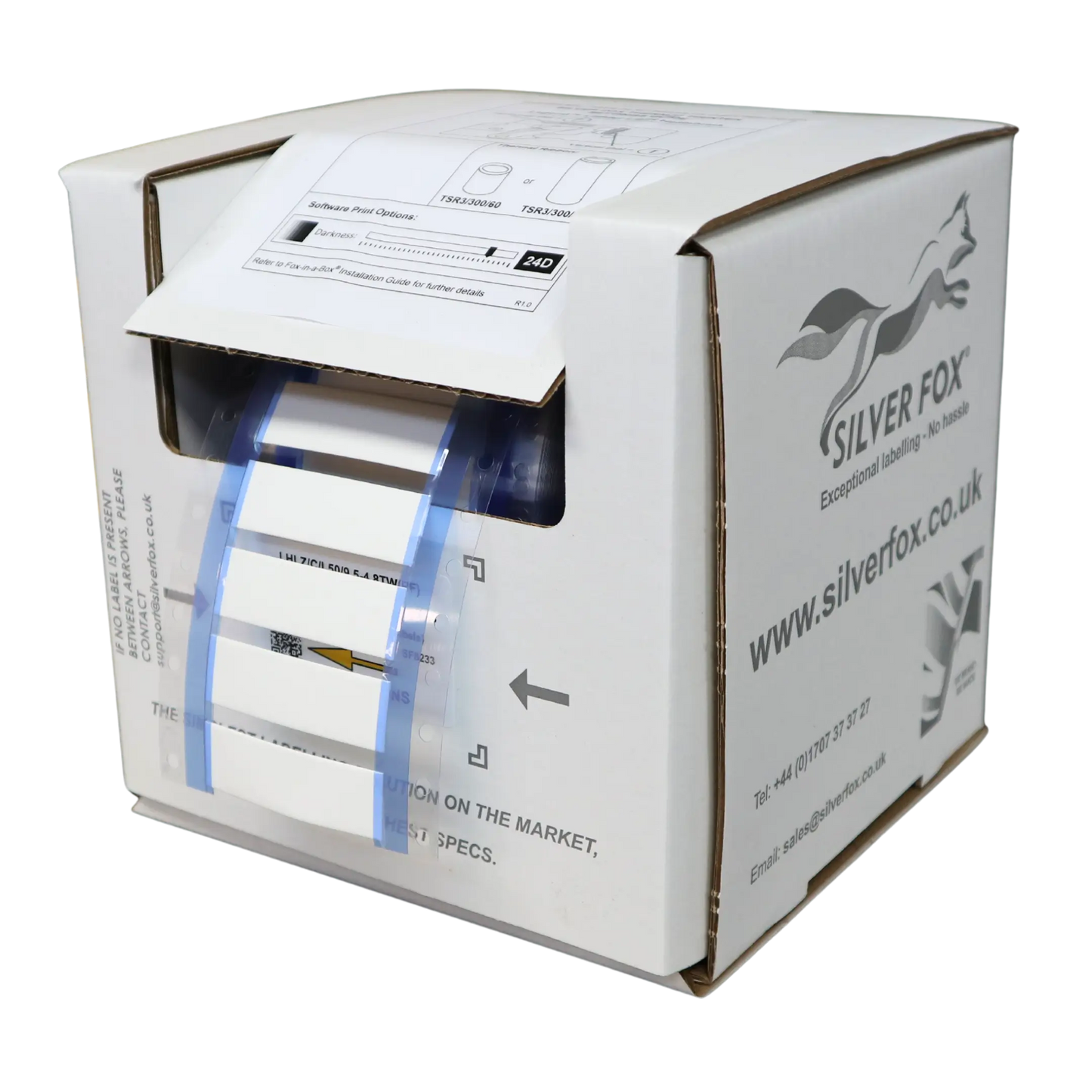

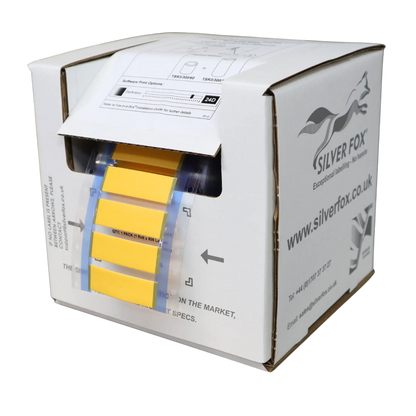

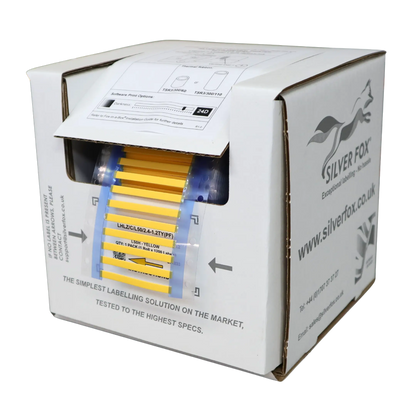

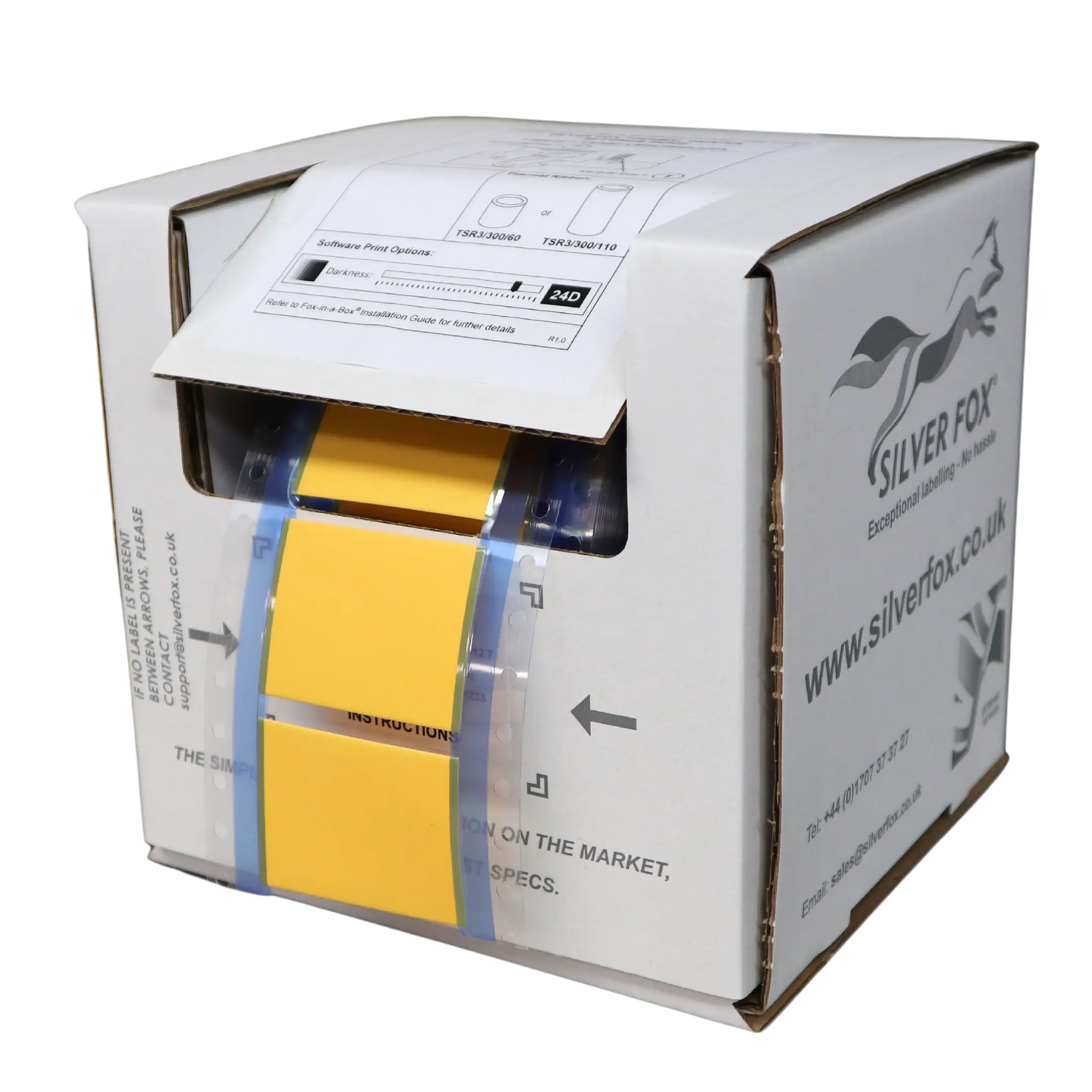

Legend™ Low-Smoke Zero-Halogen Ladder Heatshrink are halogen free shrinkable markers that are conveniently supplied in a ladder style format. With our bio-degradable all-in-one delivery, storage and dispenser boxes they can be rapidly printed with Silver Fox’s premium Fox-in-a-Box® thermal printer.
- 2:1 shrink ratio

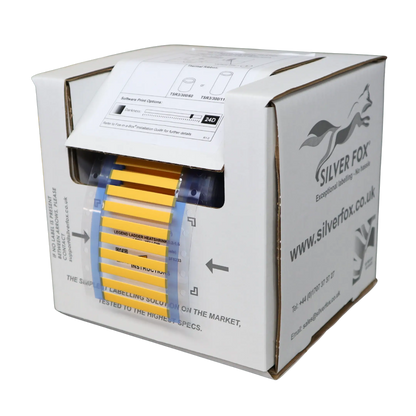

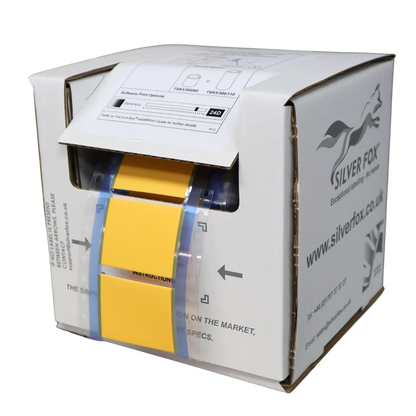

- Available in yellow & white
- Low smoke propagation & halogen free
- Self-extinguishing material

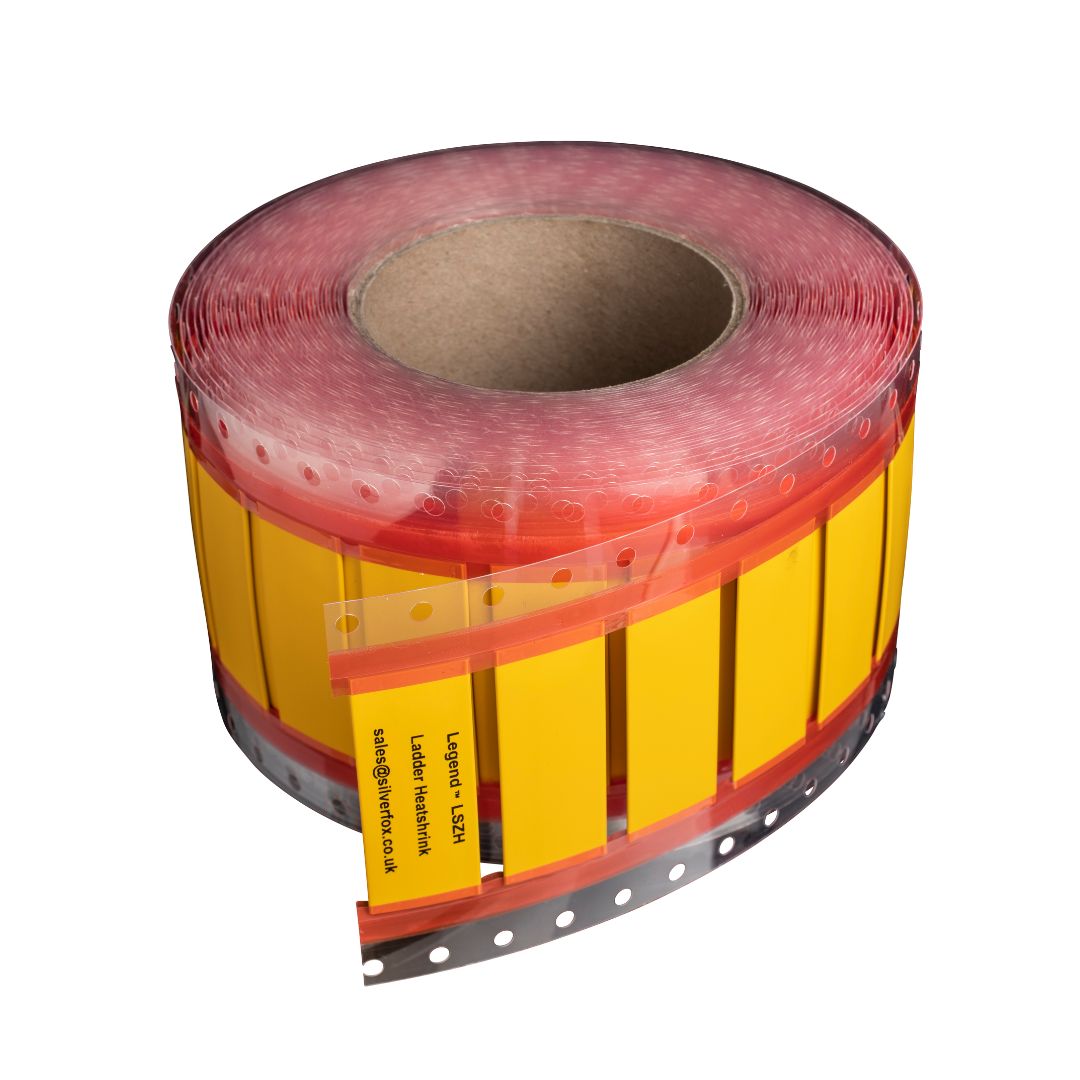

- Available in continuous roll format
Download Datasheet Here
*Barcoding/QR Coding/Graphics functionality is available via the Professional level Fox-in-a-Box®

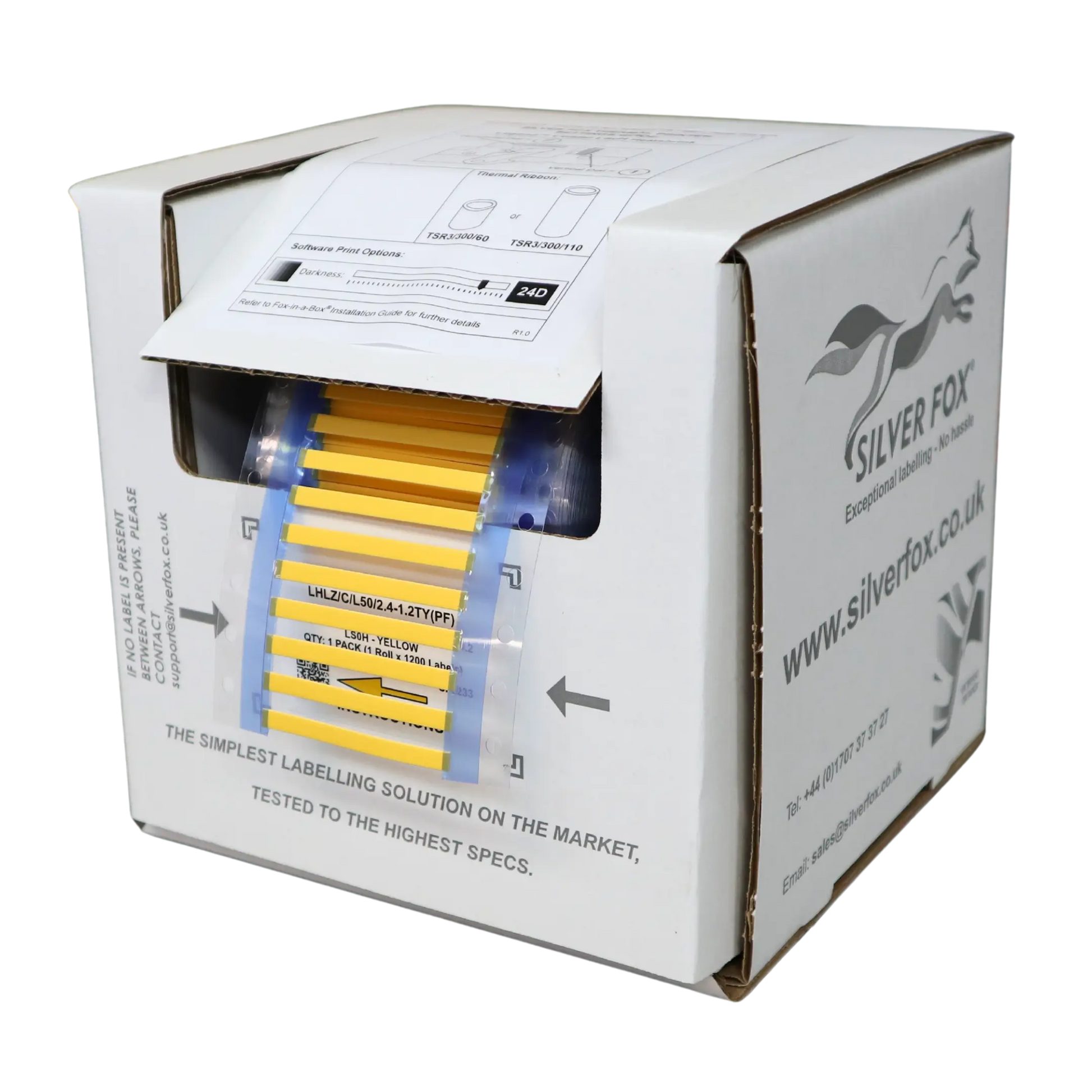

SKU:SKU: LHLZ/C/L50/2.4-1.2T(PF)Y | Labels Per Roll: 1500
Share
The Legend™ Range is Trusted by...

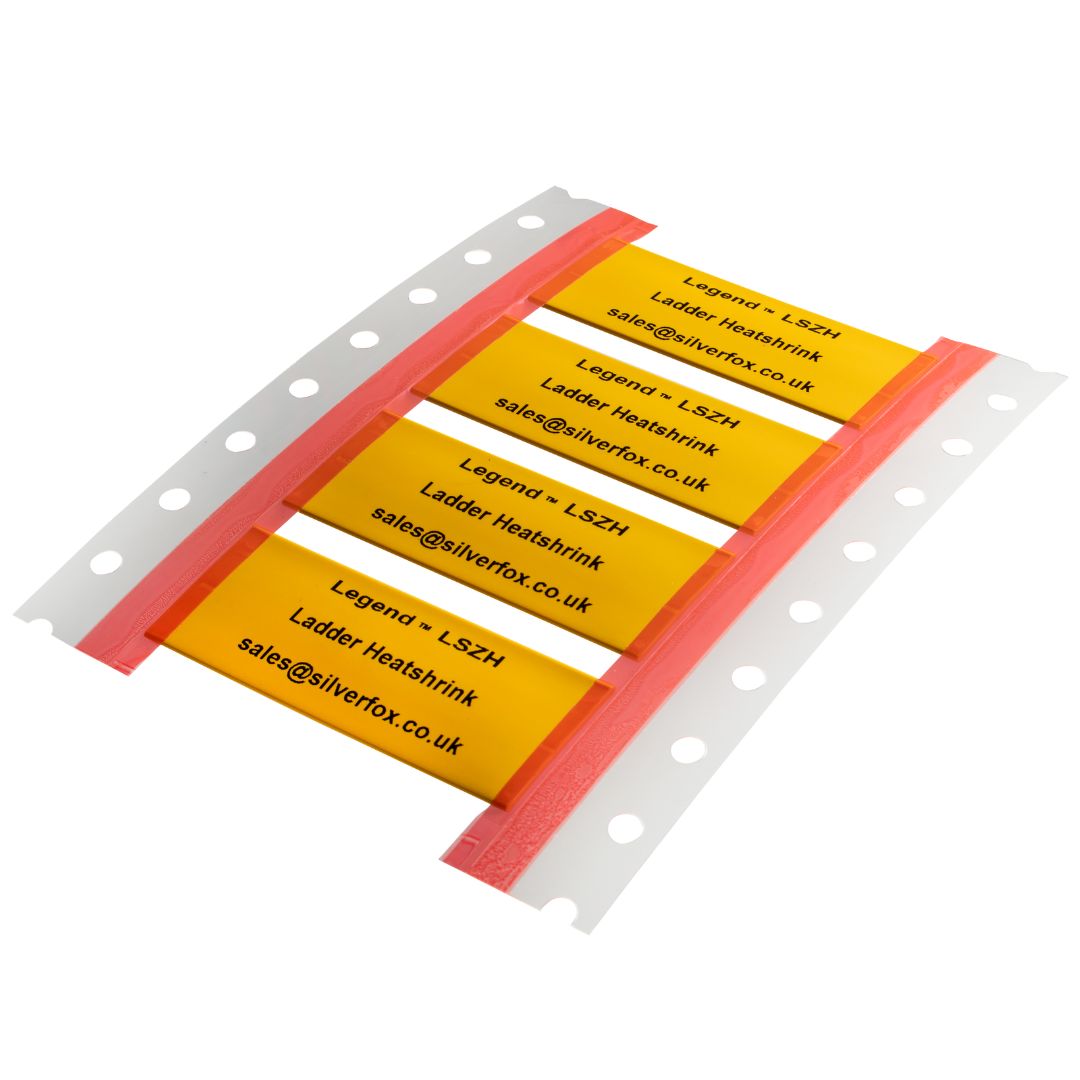

Efficient Ladder Style Format
Using the advanced or professional Fox-in-a-Box® cross-ferruling functionality you can print both ends of wire at the same time. This unique functionality cuts printing efforts in half and yields approximately 23,000, 0.984in labels with our included 984ft ribbon.
-
Low Smoke Zero Halogen
LSZH heatshrink is made of a premium halogen free, low smoke propagation material - an ideal choice for environments where safety and environmental concerns are paramount.
-
Preperforated 0.984in width
With the 0.984in width ladder style heat shrink you can print two idents at once cutting printing efforts in half.
-
Range of Diameters
Choose from an extensive range of diameters and colours to create a labeling system that aligns perfectly with your businesses needs and application environment.
And that's not all!
- Includes free of charge training
- Includes free of charge support
Technical Information
Material Specification
- Material: Polyolefin
- Shrink Ratio: 2-1
- Dielectric Strength: ≥ 787,400 V/mil
- Halogen Free & Flame Retardant
- Min. shrink temp: 239°F
- Operational temperature: −40°F to 221°F
Available Dimensions
- Label Shrink Diameters Ø (inches): 0.0945 - 0.0472, 0.126 - 0.0630, 0.189 - 0.0945, 0.252 - 0.126, 0.374 - 0.189, 0.500 - 0.252, 0.752 - 0.374, 1.00 - 0.500, 1.50 - 0.752
Product Testing
- Reach Compliant: Yes
- Flame retardant UL224
- Oxygen Index & Flue Gas Density EN 45545-2
- Resistance to Solvents MIL-STD-202-215 w/change 1
Printing & Software Requirements
- To achieve the best printing results, we recommend using a Fox-in-a-Box® DTP-1 thermal printer along with TSR3/300 thermal transfer ribbons.
- Print via Fox-in-a-Box® thermal printer using ‘One software, One printer, One ribbon’ for our complete range of thermal labels. A 984ft thermal ribbon will yield approximately 23,000 x 0.984in labels.
*We are often asked whether the print will shrink when the tubing shrinks. Like all heatshrink yes, it does. Suggested ways to minimise the reduction in print size: Shrink the tubing from the reverse side to the printing. Some customers also advise using a font like Arial Narrow.
**For more information call our Sales Team on +1 (833) 848-8484 or email sales@silverfoxlabeling.com
Printable Area
- LEGEND™ Ladder Heatshrink LSZH Ø 0.500 - 0.252 inches | LHLZ/C/L25X2/12.7-6.4T: 0.866 x 0.866 inches (x2)
- LEGEND™ Ladder Heatshrink LSZH Ø 0.752 - 0.374 inches | LHLZ/C/L25X2/19.1-9.5T: 0.866 x 1.26 inches (x2)
- LEGEND™ Ladder Heatshrink LSZH Ø 0.0945 - 0.0472 inches | LHLZ/C/L25X2/2.4-1.2: 0.925 x 0.197 inches (x2)
- LEGEND™ Ladder Heatshrink LSZH Ø 1.00 - 0.500 inches | LHLZ/C/L25X/25.4-12.7T: 0.866 x 1.61 inches (x2)
- LEGEND™ Ladder Heatshrink LSZH Ø 0.126 - 0.0630 inches | LHLZ/C/L25X2/3.2-1.6T: 0.866 x 0.276 inches (x2)
- LEGEND™ Ladder LSZH Heatshrink Ø 0.189 - 0.0945 inches | LHLZ/C/L25X2/4.8-2.4T: 0.866 x 0.315 inches (x2)
- LEGEND™ Ladder LSZH Heatshrink Ø 0.252 - 0.126 inches | LHLZ/C/L25X2/6.4-3.2T: 0.866 x 0.394 inches (x2)
- LEGEND™ Ladder LSZH Heatshrink Ø 0.374 - 0.189 inches | LHLZ/C/L25X2/9.5-4.8T: 0.866 x 0.591 inches (x2)
- LEGEND™ Ladder LSZH Heatshrink Ø 0.500 - 0.252 inches | LHLZ/C/L50/12.7-6.4T: 1.97 x 0.768 inches
- LEGEND™ Ladder LSZH Heatshrink Ø 0.752 - 0.374 inches | LHLZ/C/L50/19.1-9.5T: 1.97 x 1.22 inches
- LEGEND™ Ladder LSZH Heatshrink Ø 0.0945 - 0.0472 inches** | LHLZ/C/L50/2.4-1.2T: 1.93 x 0.157 inches
- LEGEND™ Ladder LSZH Heatshrink Ø 1.00 - 0.500 inches | LHLZ/C/L50/25.4-12.7T: 1.97 x 1.57 inches
- LEGEND™ Ladder LSZH Heatshrink Ø 0.126 - 0.0630 inches | LHLZ/C/L50/3.2-1.6T: 1.93 x 0.189 inches
- LEGEND™ Ladder LSZH Heatshrink Ø 1.50 - 0.752 inches | LHLZ/C/L50/38.1-19.1T: 1.93 x 2.52 inches
- LEGEND™ Ladder LSZH Heatshrink Ø 0.189 - 0.0945 inches | LHLZ/C/L50/4.8-2.4T: 1.93 x 0.335 inches
- LEGEND™ Ladder LSZH Heatshrink Ø 0.252 - 0.126 inches | LHLZ/C/L50/6.4-3.2T: 1.97 x 0.354 inches
- LEGEND™ Ladder LSZH Heatshrink Ø 0.374 - 0.189 inches | LHLZ/C/L50/9.5-4.8T: 1.73 x 0.594 inches
Available Colors
- White & Yellow
Storage Instructions
- Storage Instructions: Store between 50ºF (10ºC) and 77ºF (25ºC)
- Conditions: Keep in dark conditions
- Humidity Resistance: 35% to 65% RH
Typical Applications

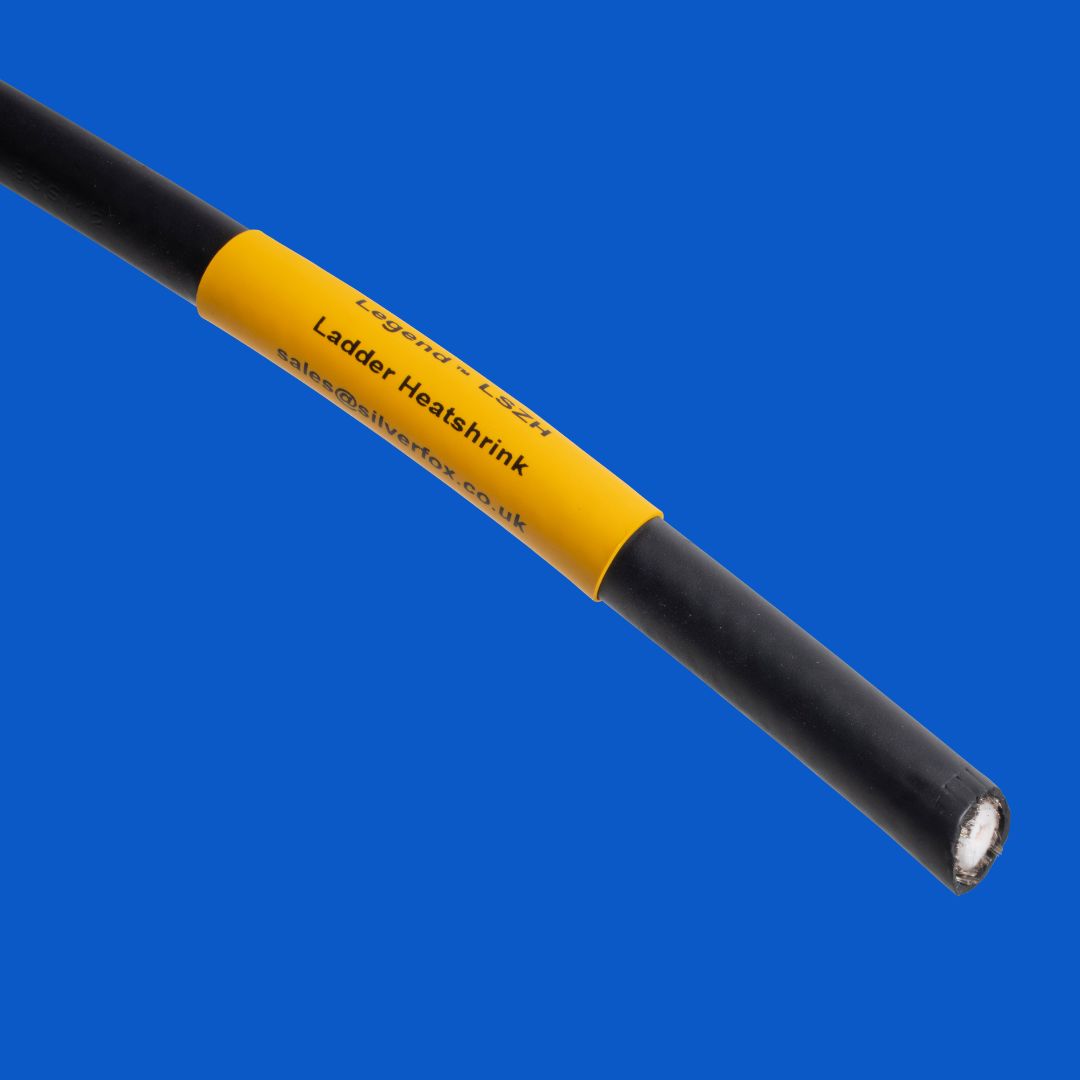

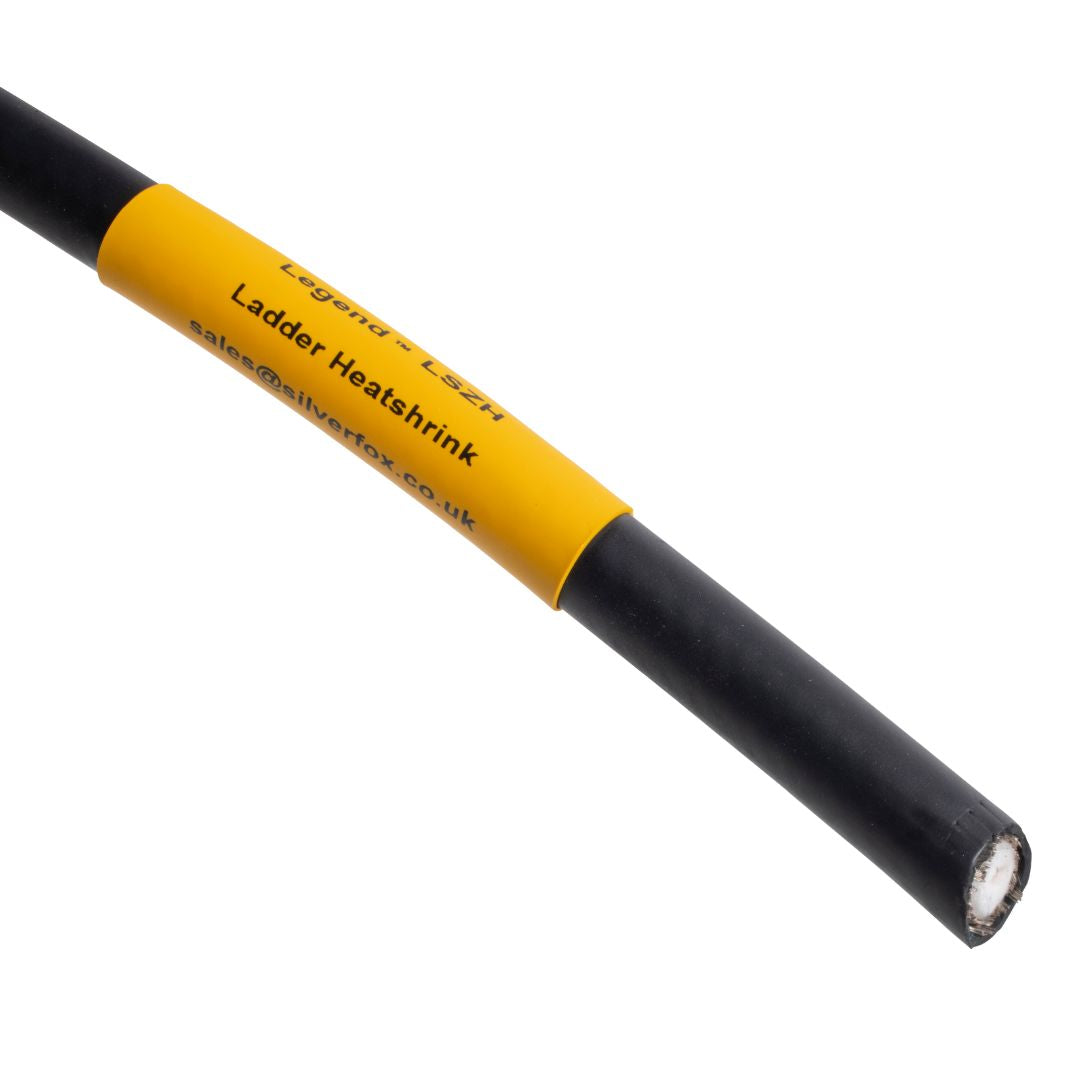

Heat shrink markers are highly adaptable and resistant to heat. They can conform to the shape of the cable, providing a secure fit. This can be particularly useful in environments where cables may be subject to movement or vibration.
How to load Legend™ LSZH Ladder Heatshrink

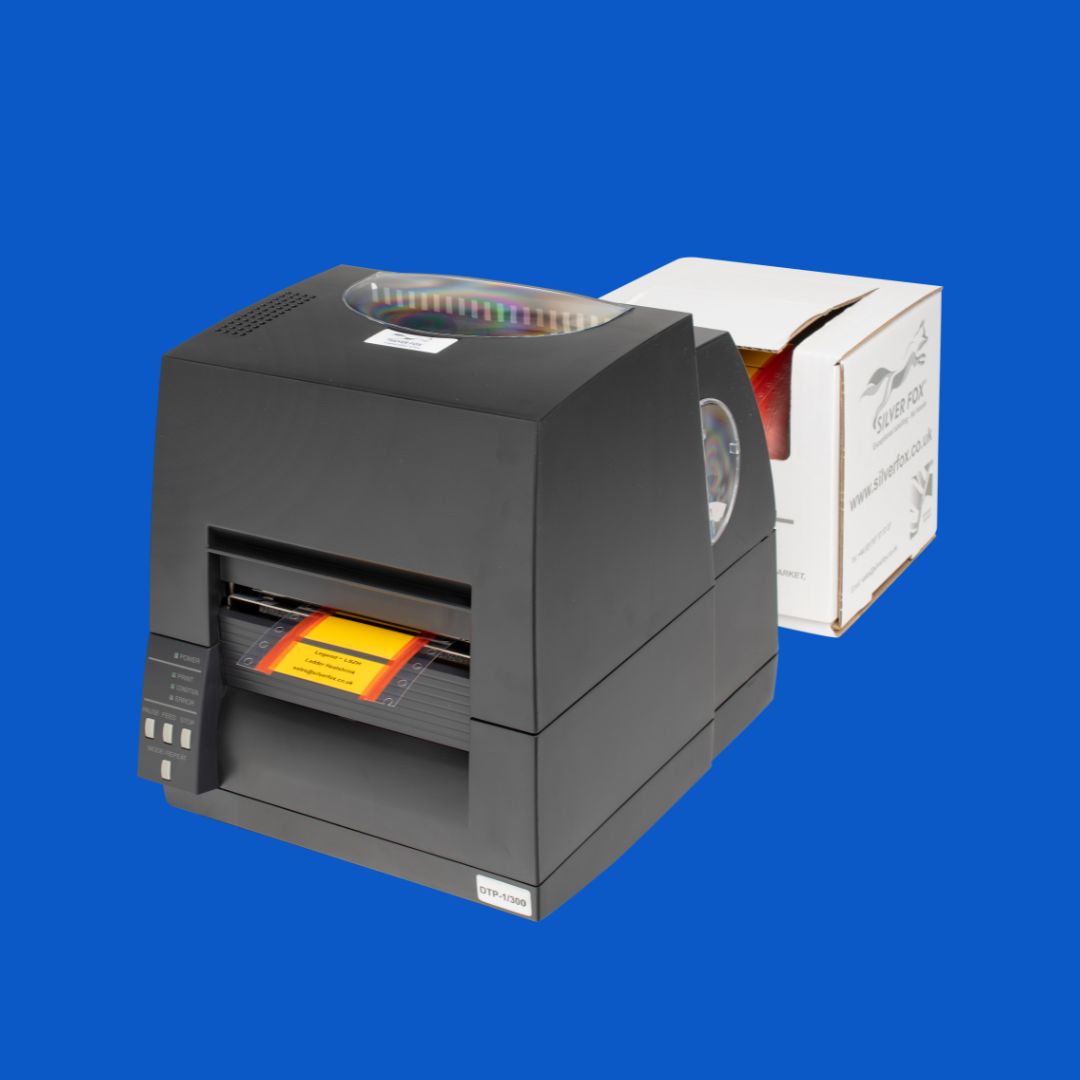

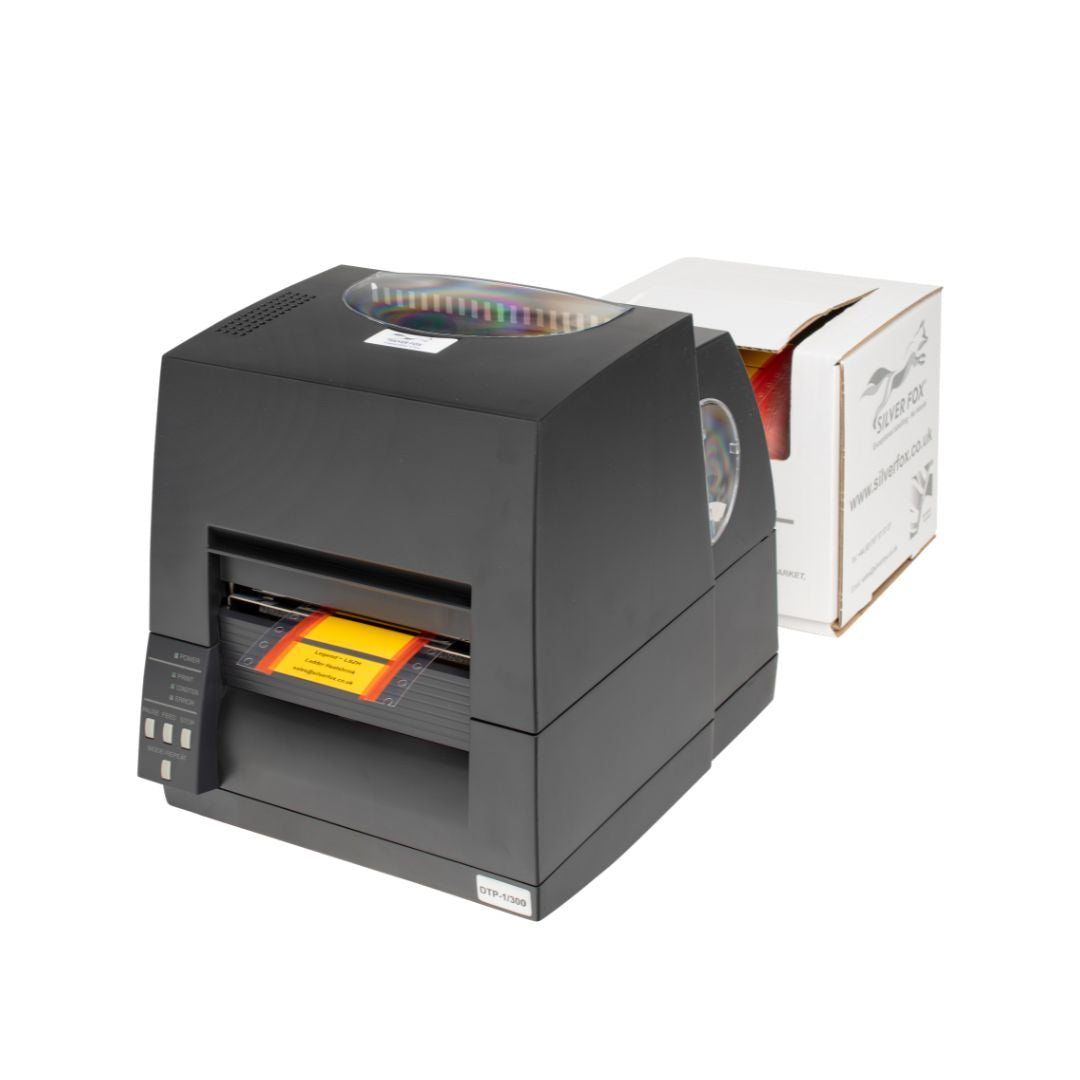

Print via the Fox-in-a-Box®
Designed for seamless compatibility, the Fox-in-a-Box® integrates with the Legend™ heatshrink range, ensuring optimal printing results. With the included Labacus Innovator® software, you can easily design and customize your labels, incorporating essential information, symbols, and barcodes.
FAQs
What is the shrink ratio of Legend™ LSZH Heatshrink Rolls?
This product has a 2:1 shrink ratio.
What are the best conditions for Legend™ LSZH Heashrink rolls to be used in?
The best conditions for Legend™ LSZH heatshrink labels are internal usage within public buildings such as airports, museums and so on. They are also suited for the conditions that are needed for rail and metro applications.
How do I edit and print what I want onto the Legend™ LSZH Heatshrink rolls?
You can edit what you want written on your label by using our Labacus Innovator software which has 3 separate levels so you can the software type that is most suited for your needs. Using this software alongside our one-of-a-kind Fox-In-A-Box® Thermal printer you will be able to add, edit and print any text, graphics or QR/Barcodes onto your labels.
Can I print more than one roll at a time?
Yes! When using the advanced or professional level of the software you can print 2 rolls at the same time. As an added bonus if you are using the professional level of the Labacus Innovator software you can print both end of the wire at the same time using our special cross ferruling feature.
What is the maximum operating temperature of these labels?
The maximum operating temperature for these labels is 221°F.
