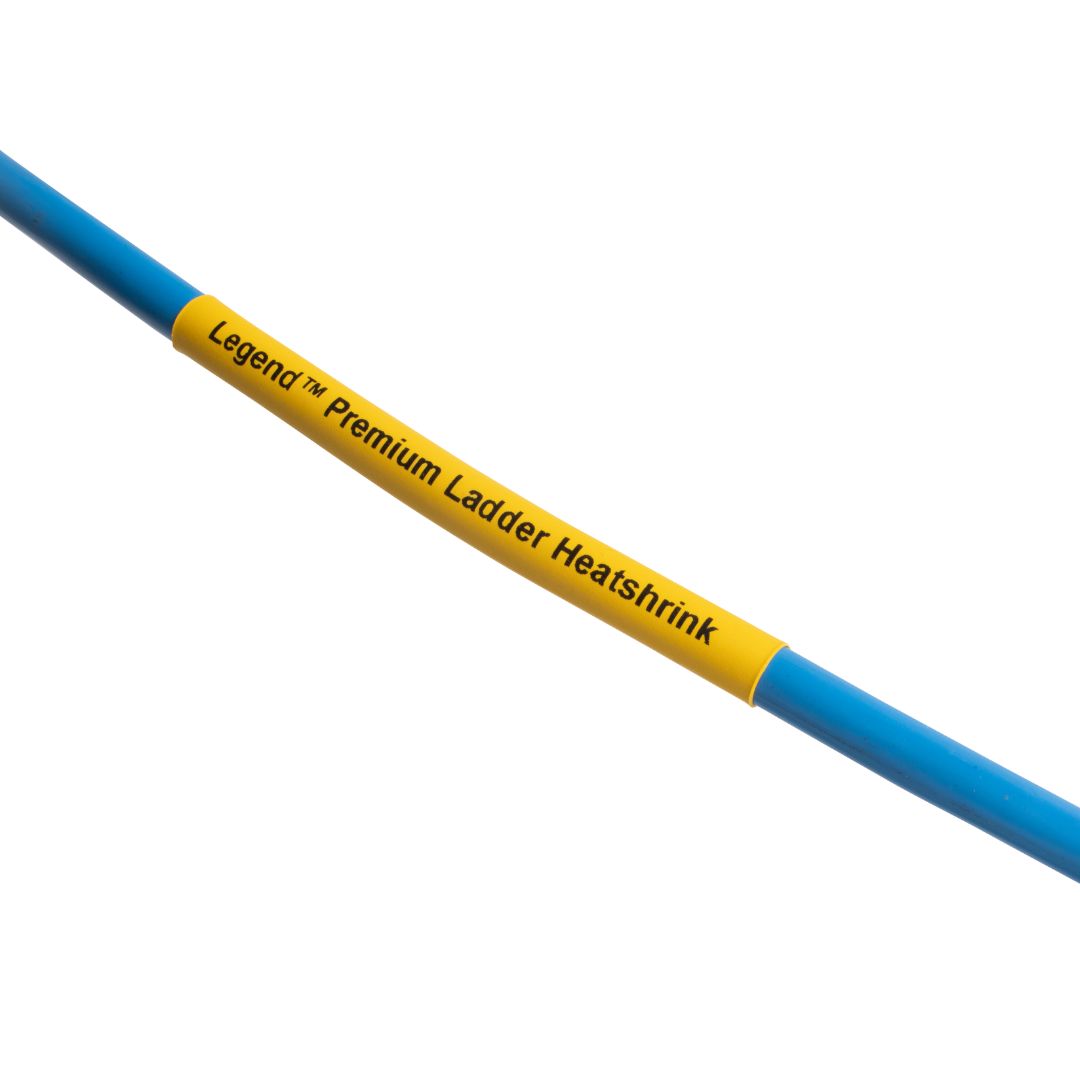

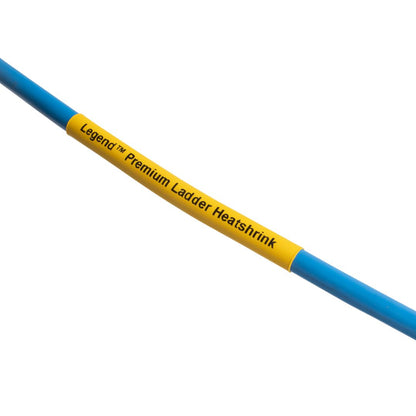

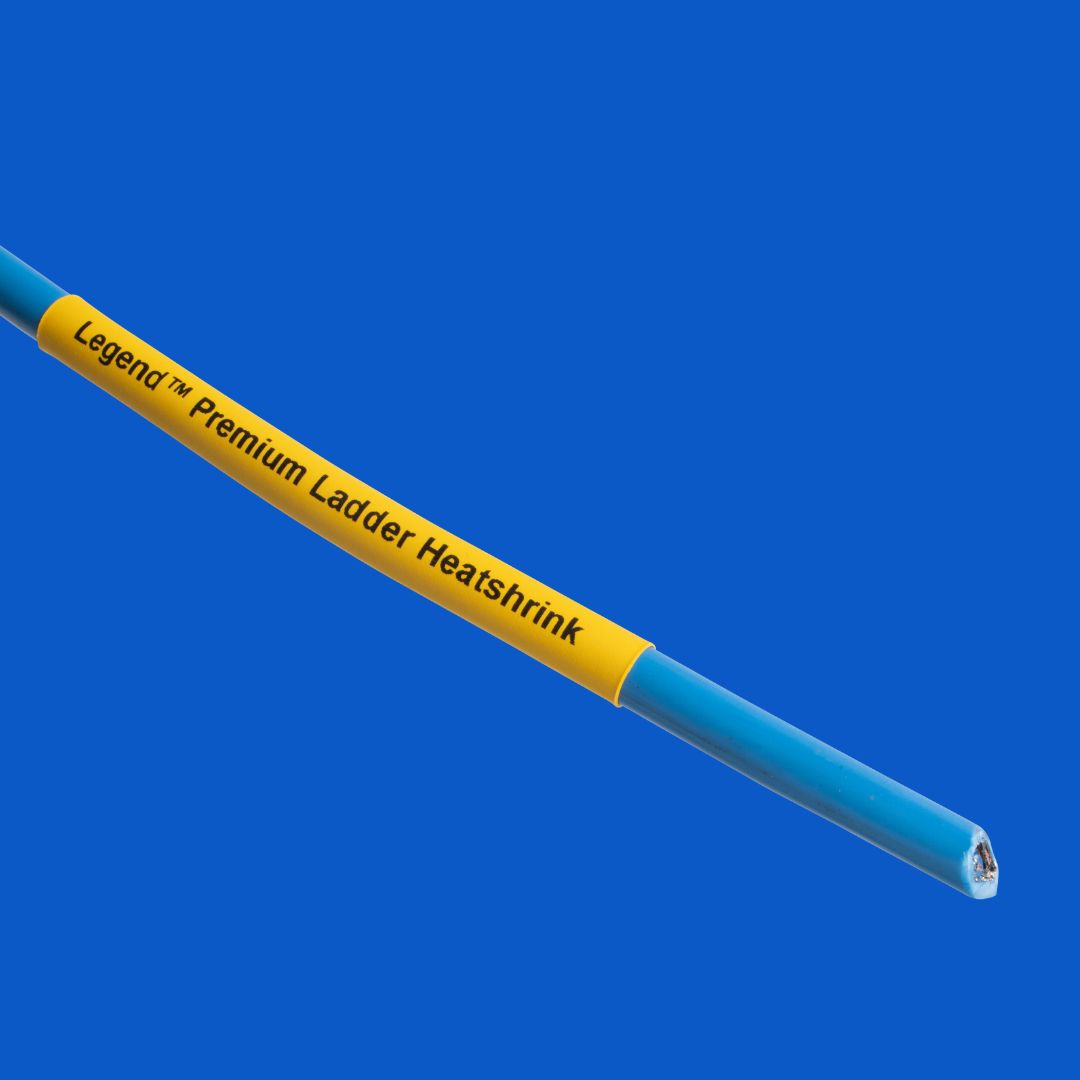

Legend™ Premium Ladder Heatshrink Cable Markers
Legend™ Premium Ladder Heatshrink Cable Markers
Legend™ Premium Ladder Heatshrink are shrinkable markers that are conveniently supplied in a ladder style format. With our recyclable all-in-one delivery, storage and dispenser boxes they can be rapidly printed with Silver Fox’s premium Fox-in-a-Box® thermal printer.
- 3:1 shrink ratio
- Low minimum shrink temperature
- Self-extinguishing material
- Available in yellow & white

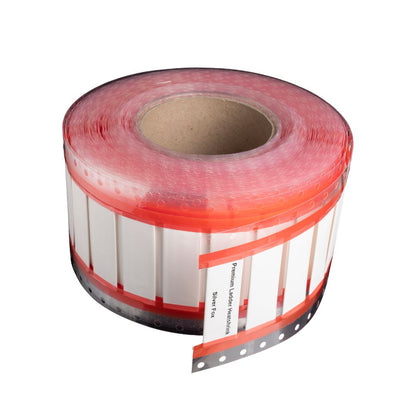

- Available in continuous roll format
Download Datasheet Here
*Barcoding/QR Coding/Graphics functionality is available via the Professional level Fox-in-a-Box®
SKU:SKU: LHS/L50/24-8T(PF)Y | Labels Per Roll: 250
Share
The Legend™ Range is Trusted by...

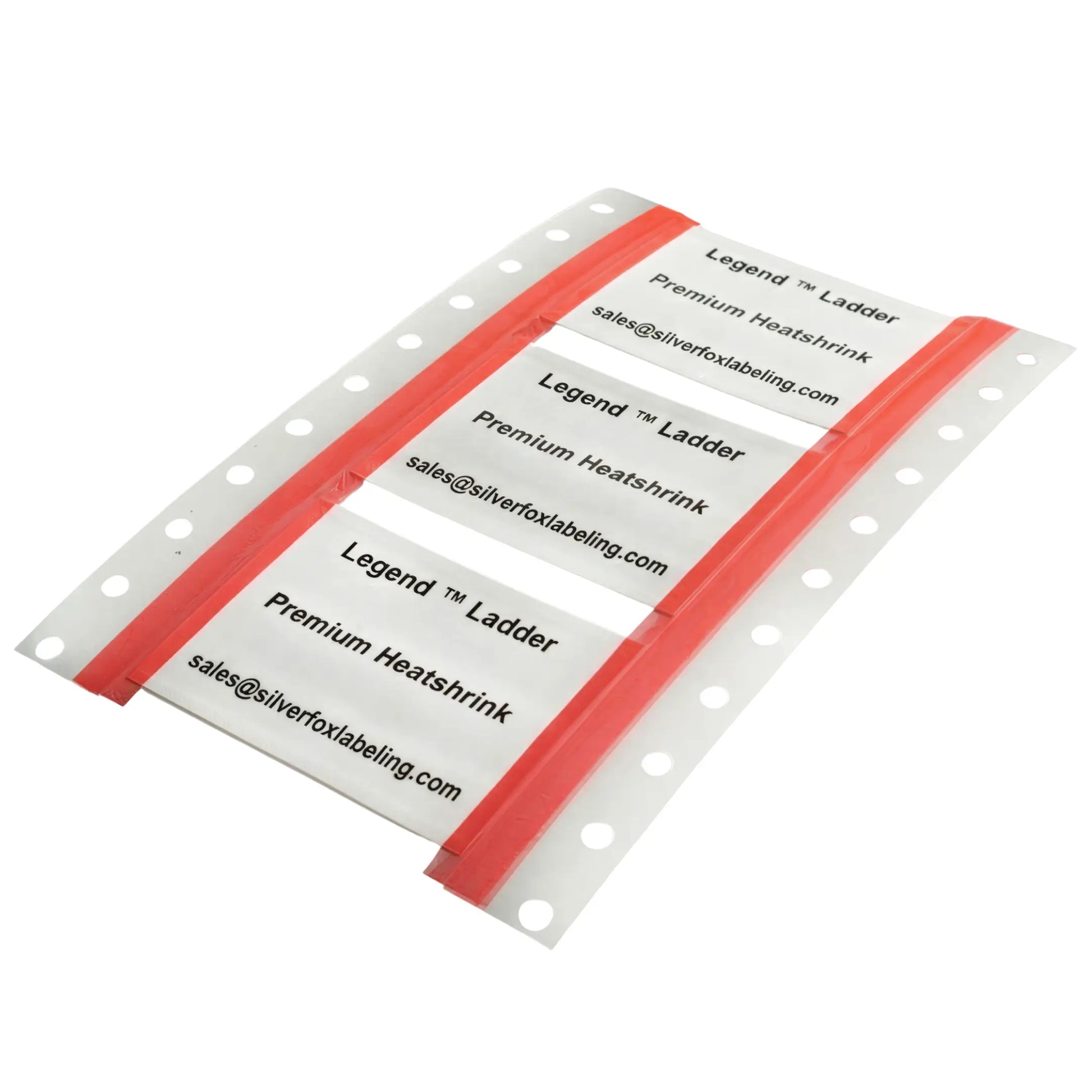

Efficient Ladder Format
With the ladder style format you can choose a predetermined 0.984 or 1.97 inches ident length that is supplied within a format that retains its structure, so that you can pull individual idents within a printed sequence.
-
3:1 Shrink Ratio
With a 3:1 shrink ratio each size covers a wider range of cable diameters. Specially designed with a lower minimum shrink temperature, saving you time when shrinking onto your cable.
-
Expertly Design with Labacus Innovator
With the 0.984in width ladder style heat shrink you can print two idents at once cutting printing efforts in half.
-
Range of Diameters
Choose from an extensive range of diameters and colours to create a labelling system that aligns perfectly with your businesses needs and application environment.
And that's not all!
- Includes free of charge training
- Includes free of charge support
Technical Information
Material Specification
- Flame retardant: single wall matt polyolefin
- Shrink ratio: 3:1
- Dielectric strength: ≥ 1,456,690 V/mil
- Minimum shrink temperature: 194°F (90°C) – fully recovered
- Operating temperature: -67°F to 275°F (-55°C to 135°C)
Available Dimensions
- Cable Shrink Diameter Ø (inches): 0.0945 - 0.0472, 0.126 - 0.0630, 0.189 - 0.0945, 0.252 - 0.126, 0.374 - 0.189, 0.500 - 0.252, 0.752 - 0.374, 1.00 - 0.500, 1.50 - 0.752
Product Testing
- Reach Compliant: Yes
- Successfully tested for High & Low Temperature
- Salt Mist Spray according to Lloyds Register Type Approval System.
- Successfully tested for 3000 hours accelerated UV ageing.
- Standards: UL 224 257°F (125°C) 600V VW-1 (File No. E48762)
- CSA C 22.2 No. 198.1: 257°F (125°C) 600V VW-1
Printing & Software Requirements
- To achieve the best printing results, we recommend using a Fox-in-a-Box® DTP-1 thermal printer along with TSR3/300 thermal transfer ribbons.
- Print via Fox-in-a-Box® thermal printer using ‘One software, One printer, One ribbon’ for our complete range of thermal labels.
*We are often asked whether the print will shrink when the tubing shrinks. Like all heatshrink yes, it does. Suggested ways to minimise the reduction in print size: Shrink the tubing from the reverse side to the printing. Some customers also advise using a font like Arial Narrow.
**For more information call our Sales Team on +1 (833) 848-8484 or email sales@silverfoxlabeling.com
Printable Area
- LEGEND™ Ladder Premium Heatshrink Ø 0.472 - 0.157 inches | LHS/L50/12-4T: 1.97 x 0.768 inches
- LEGEND™ Ladder Premium Heatshrink Ø 0.945 - 0.315 inches | LHS/L50/24-8T: 1.97 x 1.54 inches
- LEGEND™ Ladder Premium Heatshrink Ø 0.118 - 0.0394 inches | LHS/L50/3-1T: 1.93 x 0.189 inches
- LEGEND™ Ladder Premium Heatshrink Ø 1.54 - 0.512 inches | LHS/L50/39-13T: 1.93 x 2.52 inches
- LEGEND™ Ladder Premium Heatshrink Ø 0.189 - 0.0630 inches | LHS/L50/4.8-1.6T: 1.93 x 0.295 inches
- LEGEND™ Ladder Premium Heatshrink Ø 0.236 - 0.0787 inches | LHS/L50/6-2T: 1.97 x 0.354 inches
Available Colors
- White & Yellow
Storage Instructions
- Storage Instructions: Store between 50ºF (10ºC) and 77ºF (25ºC)
- Conditions: Keep in dark conditions
- Humidity Resistance: 35% to 65% RH
Typical Applications
Heatshrink markers are highly adaptable and tolerant to elevated temperatures. They can conform to the shape of the cable or wire, providing a secure fit. This is particularly useful in environments where cables may be subject to movement or vibration.
How to load Legend™ Premium Ladder Heatshrink

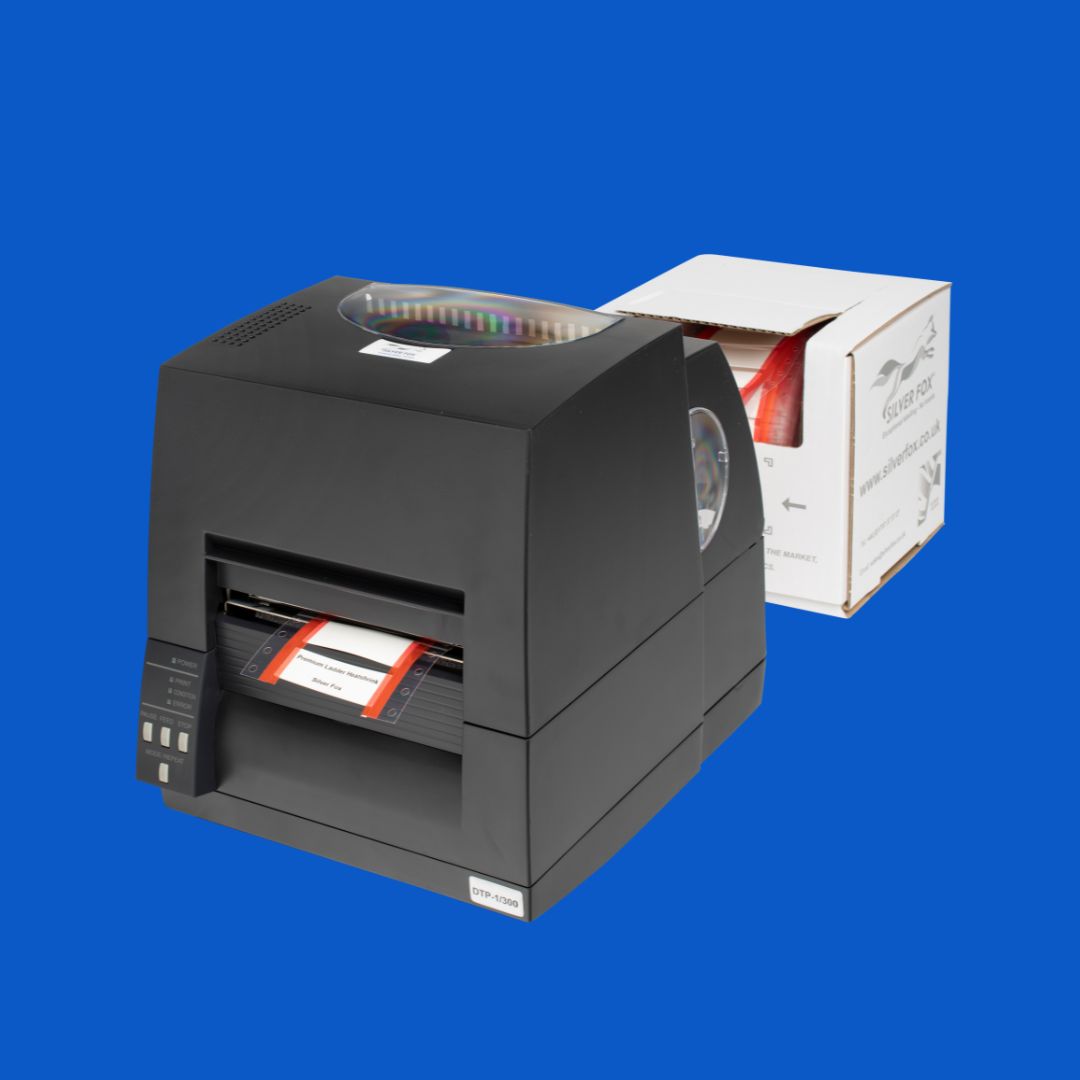

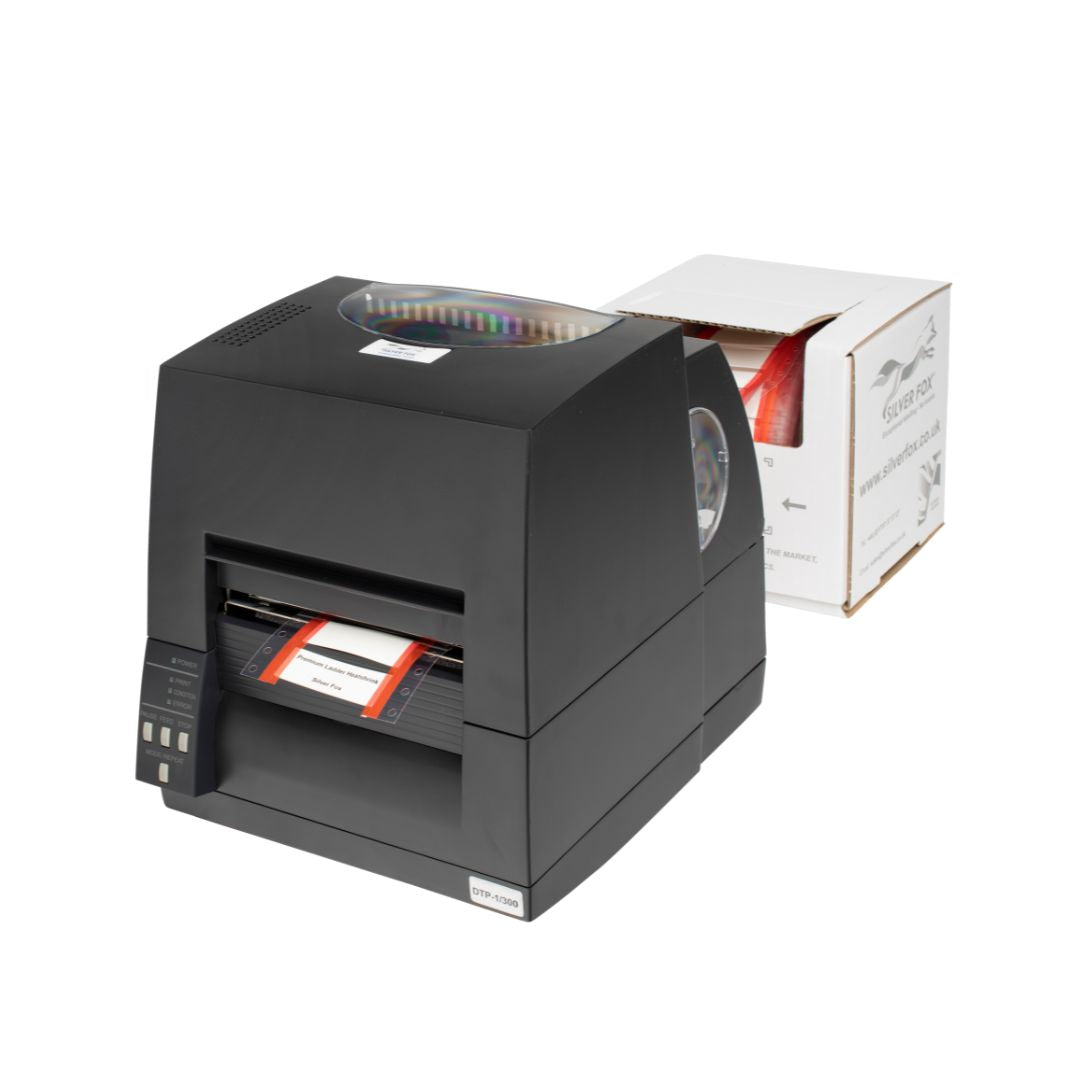

Print via the Fox-in-a-Box®
Designed for seamless compatibility, the Fox-in-a-Box® integrates with the Legend™ heatshrink range, ensuring optimal printing results. With the included Labacus Innovator® software, you can easily design and customize your labels, incorporating essential information, symbols, and barcodes.
