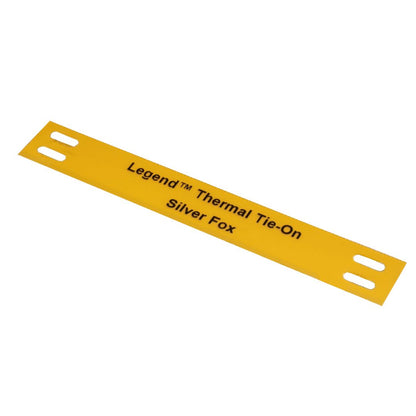

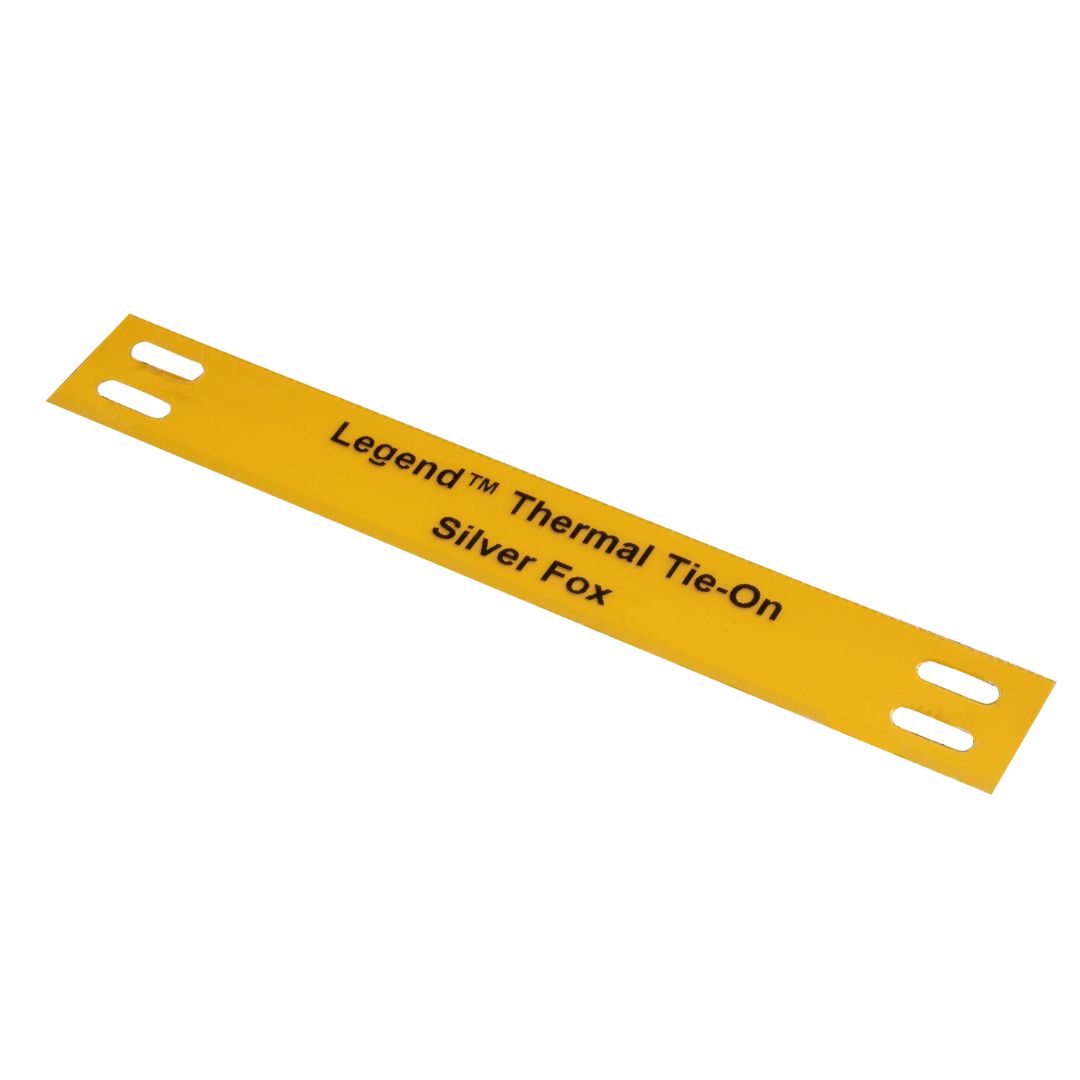

Legend™ Thermal Tie-On Cable Labels
Legend™ Thermal Tie-On Cable Labels
Made from a durable polyester, these labels are ideal for internal applications such as substations and control rooms. With our recyclable all-in-one delivery, storage and dispenser boxes they can be rapidly printed with Silver Fox’s premium Fox-in-a-Box® thermal printer.

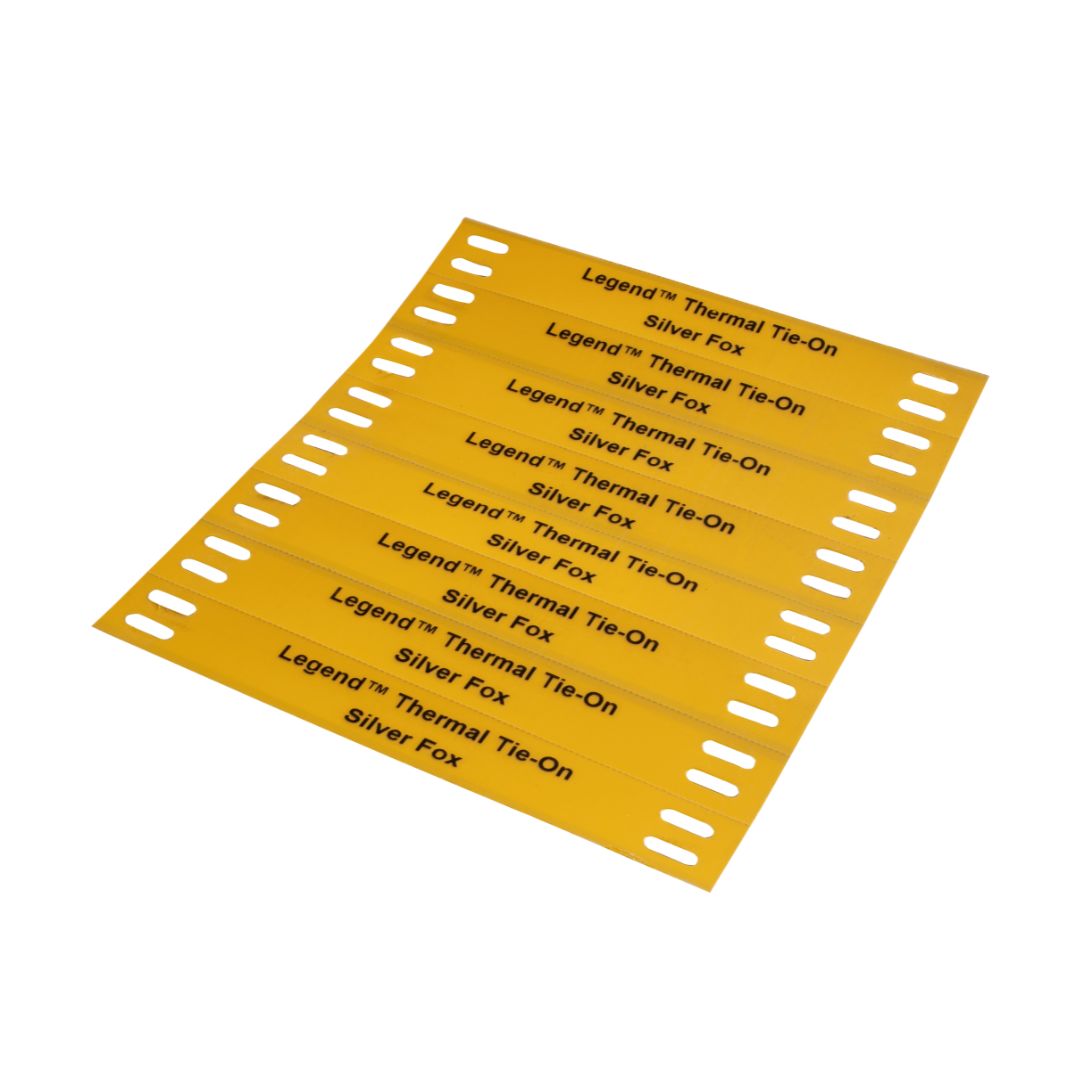

- Pre-perforated for rapid use
- London Underground Approved
- Rapid printing with the Fox-in-a-Box®
- Choice of two colors and six sizes
- Also available in laser range A4 sheets
Download Datasheet Here
*Barcoding/QR Coding/Graphics functionality is available via the Professional level Fox-in-a-Box®
SKU:SKU: LS6013TY | Labels Per Pack: 3000
Share
The Legend™ is Trusted by...
Save Time with Legend™ Thermal Tie-on's

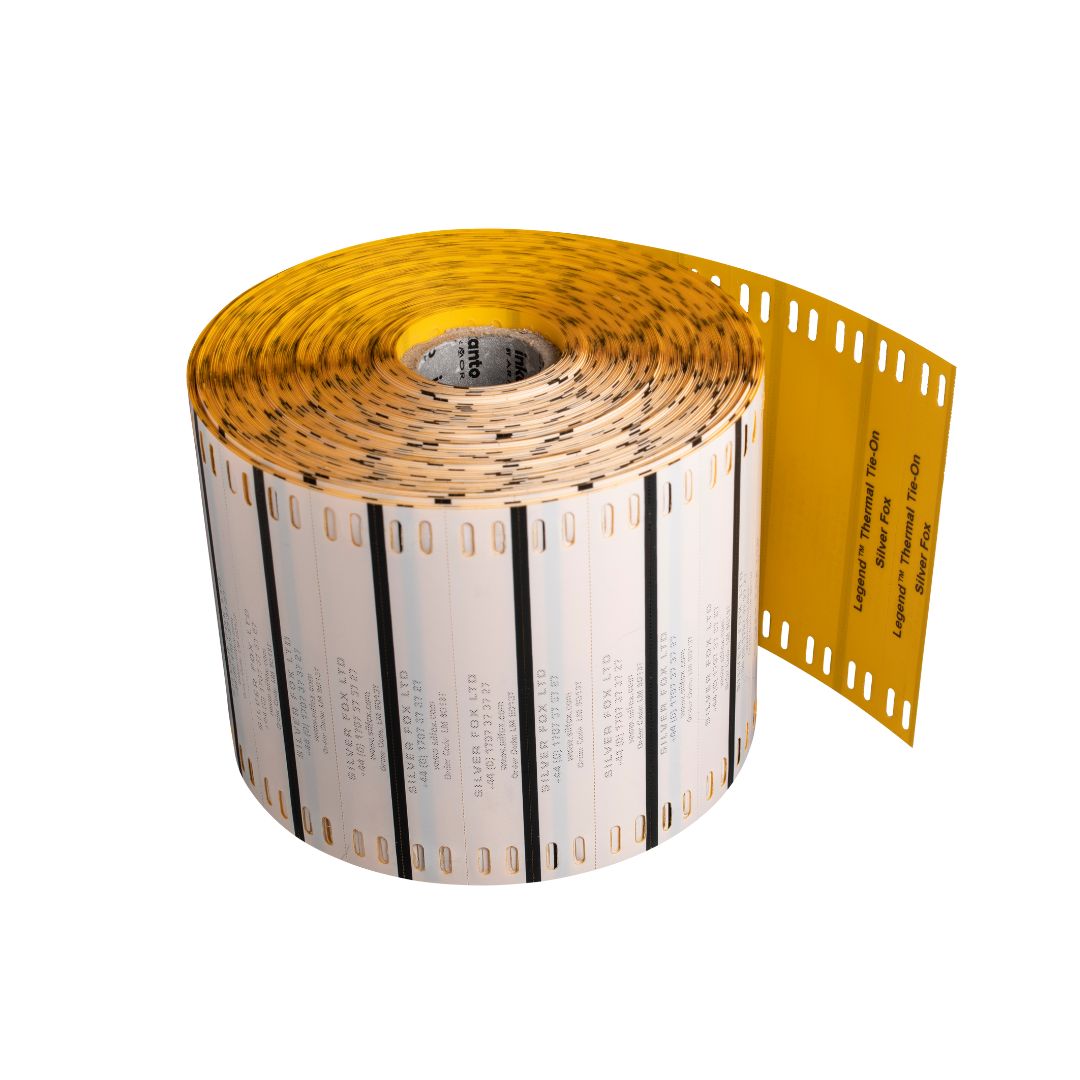

Legend tie-on’s are supplied in rolls of 3000! With our Fox-in-a-Box® thermal printer you can print at a rapid pace of 8 labels per second saving your engineers time and resources.
-
London Underground Approved
Legend™ tie-ons have undergone rigorous testing to meet the stringent requirements of LUL1-085, ensuring their suitability for London Underground installations.
-
Testing for all environments
Legend™ tie-ons are suitable for use in temperatures ranging from -40°F to 185°F. They have also been tested for H2S sour gas exposure and salt mist spray.
-
Select From 6 Label Variations
Depending on your application, you can select from 3 industry specific dimensions that can be supplied in either yellow or white.
And that's not all!
- Includes free of charge training
- Includes free of charge support
Technical Information
Material Specification
- Material: Polyester
- Thickness: 175 micron
- Operational Temperature: -40°F to 185°F (-40°C to 85°C)
Available Dimensions
- Label Dimensions (in.): 2.36 x 0.512, 3.54 x 0.512, 3.54 x 0.787
Product Testing
- Reach: Reach Compliant
- London Underground Approval: Fire Safety Performance of Material requirements of LUL 1-085.
- Elevated Temperature * MIL-STD-202G Method 108A - 2000 hrs @ 158°F to 212°F
- Low Temperature MIL-STD-810F Method 502.4 - 72 hrs @ -40°F
- H2S Sour Gas Exposure (2% H2S)
- Salt Mist Spray EC60068-2-52 Test Kb Salt Mist (Cyclic)
Printing & Software Requirements

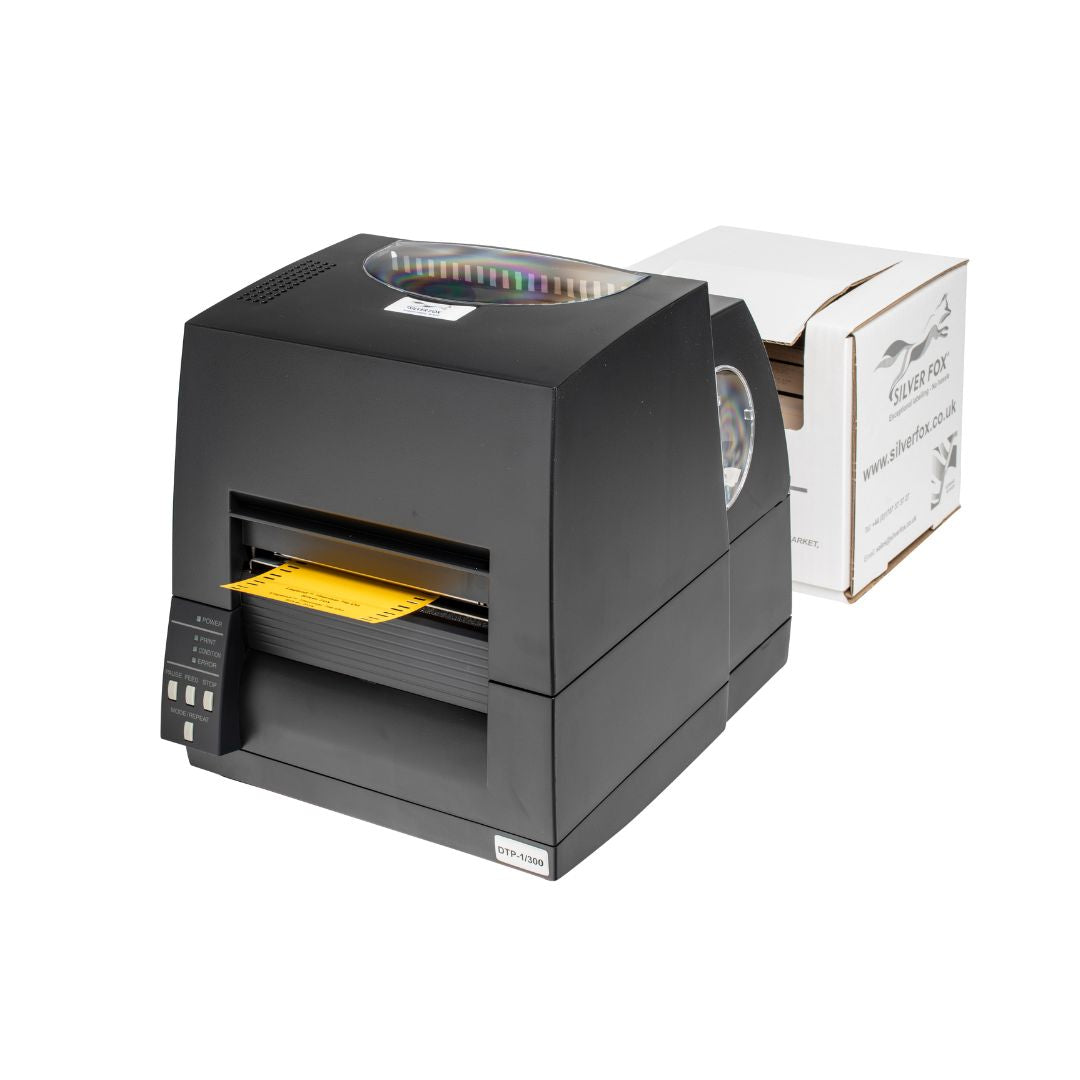

- To achieve the best printing results, we recommend using a Fox-in-a-Box® DTP-1 thermal printer along with TSR3/300 thermal transfer ribbons.
- Print via Fox-in-a-Box® thermal printer using ‘One software, One printer, One ribbon’ for our complete range of thermal labels. A 984ft thermal ribbon will yield approximately 16000 labels.
*For more information call our Sales Team on +1 (833) 848-8484 or email sales@silverfoxlabeling.com
Printable Area
- LEGEND™ LM Tie-on 3.54 x 0.512 inches Thermal | LM9013T: 2.76 x 0.433 inches
- LEGEND™ LS Tie-on 2.36 x 0.512 inches Thermal | LS6013T: 1.42 x 0.394 inches
- LEGEND™ LXL Tie-on 3.54 x 0.787 inches Thermal | LXL9020T: 2.68 x 0.709 inches
Available Colors
- White & Yellow
Storage Instructions
- Storage Instructions Store between 50ºF (10ºC) and 77ºF (25ºC)
- Conditions Keep in dark conditions
- Humidity Resistance 35% to 65% RH
Typical Applications

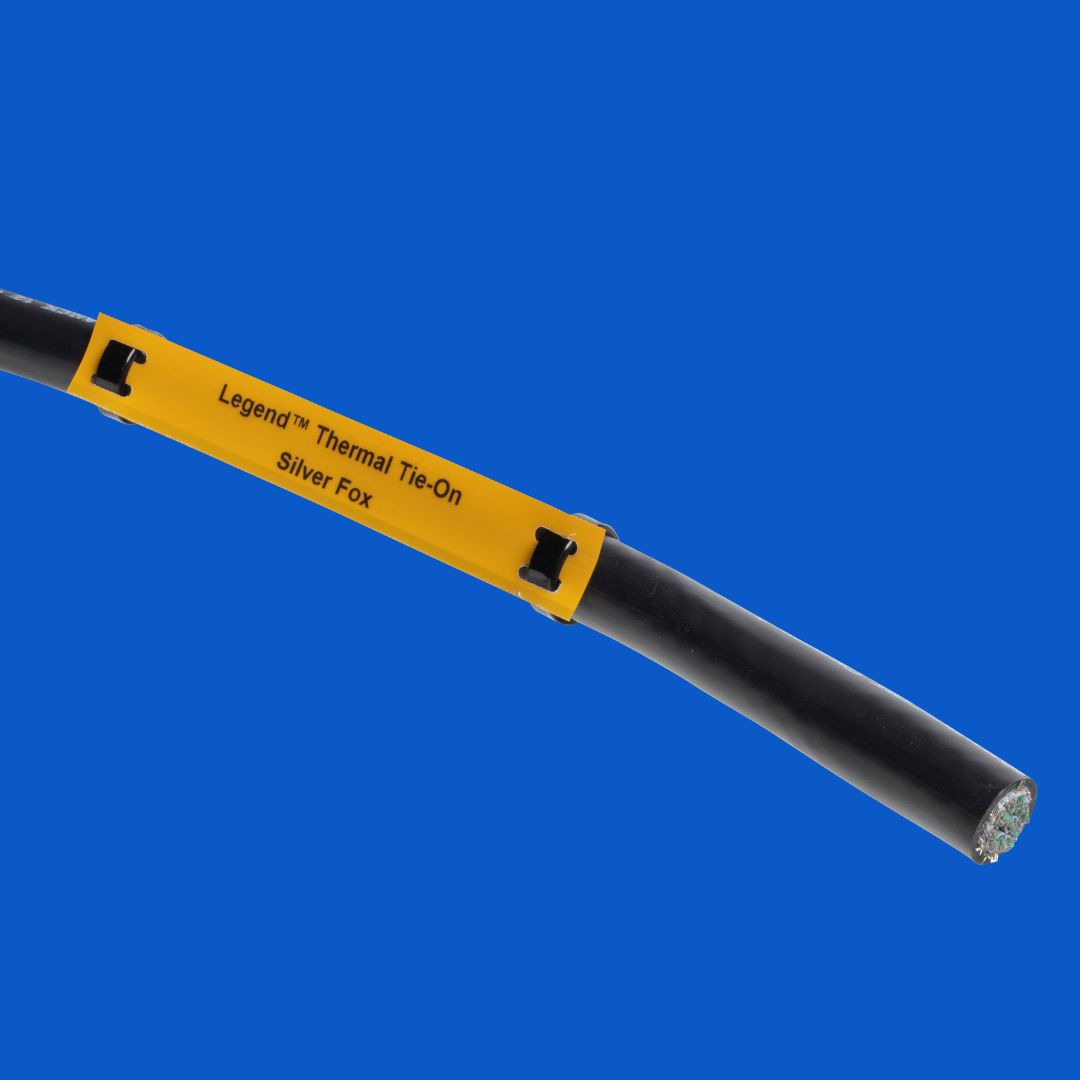

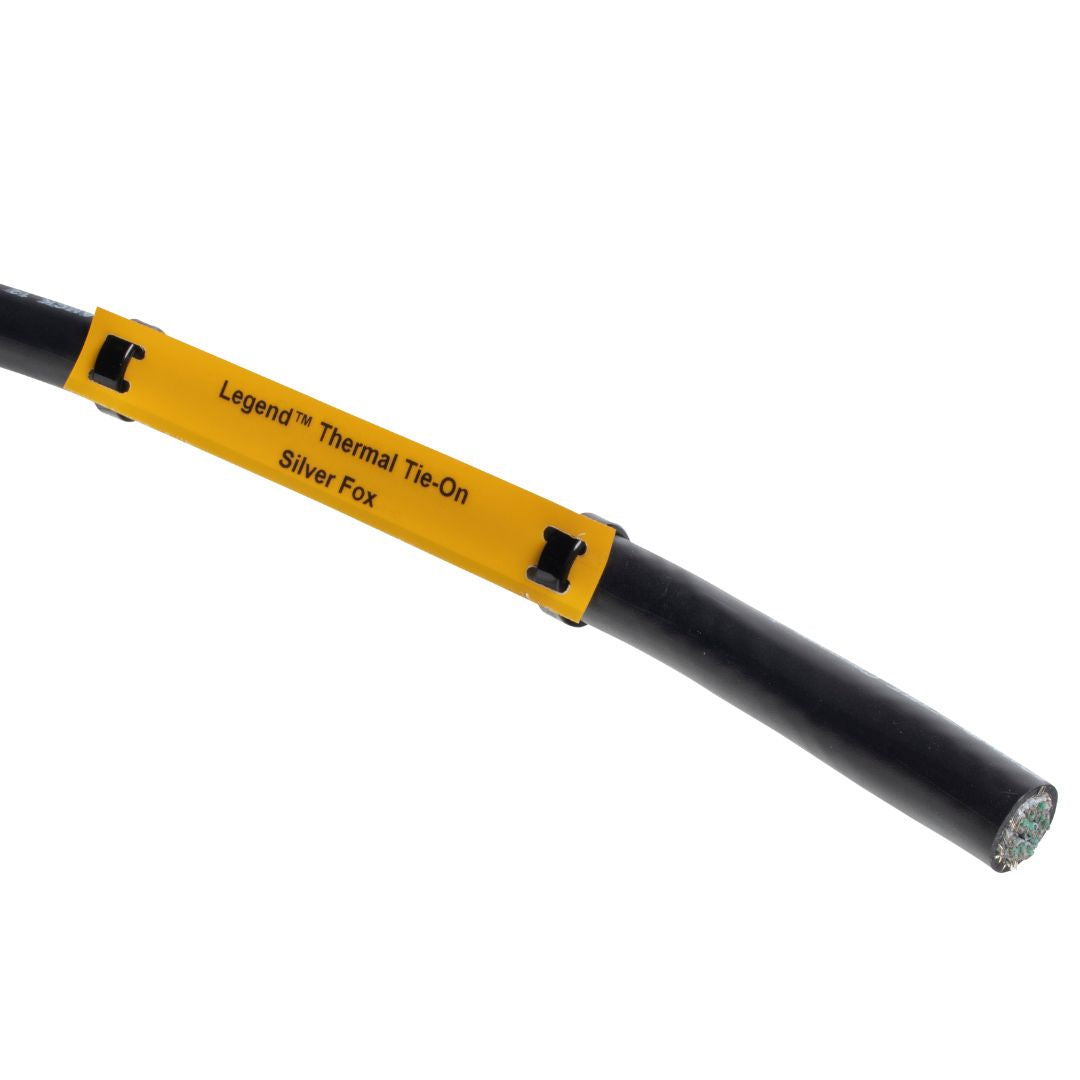

A tough tie-on cable label. Ideal for general commercial applications. Typical applications include; power stations, sub-stations, control rooms, commercial buildings, hotels. airports, universities, data centres, rail.
