Prolab® Laser Self-Laminating Wrap-Around Cable Labels

Prolab® Laser Self-Laminating Wrap-Around Cable Labels

$49.00 USD
$49.00 USD
Sale Sold out

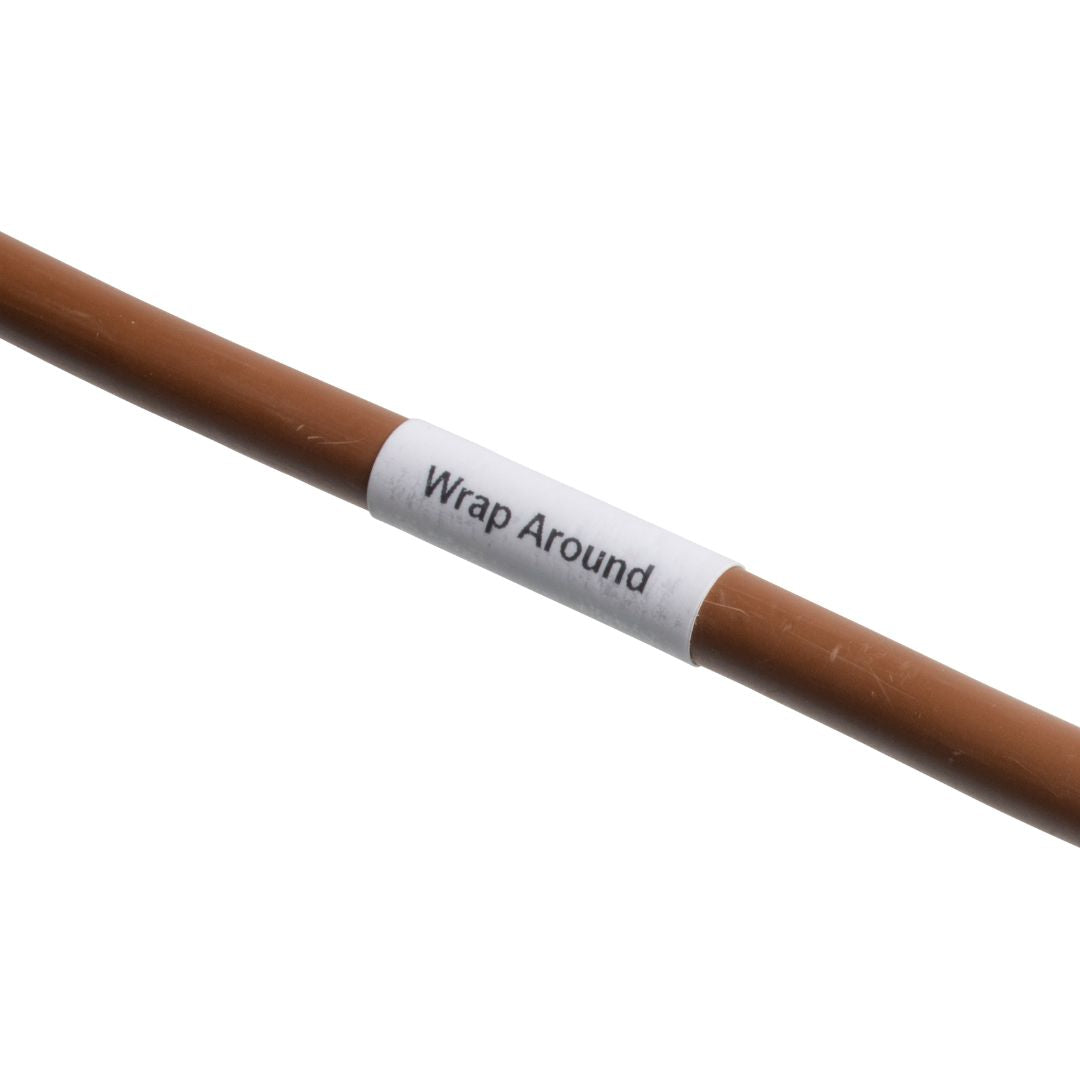

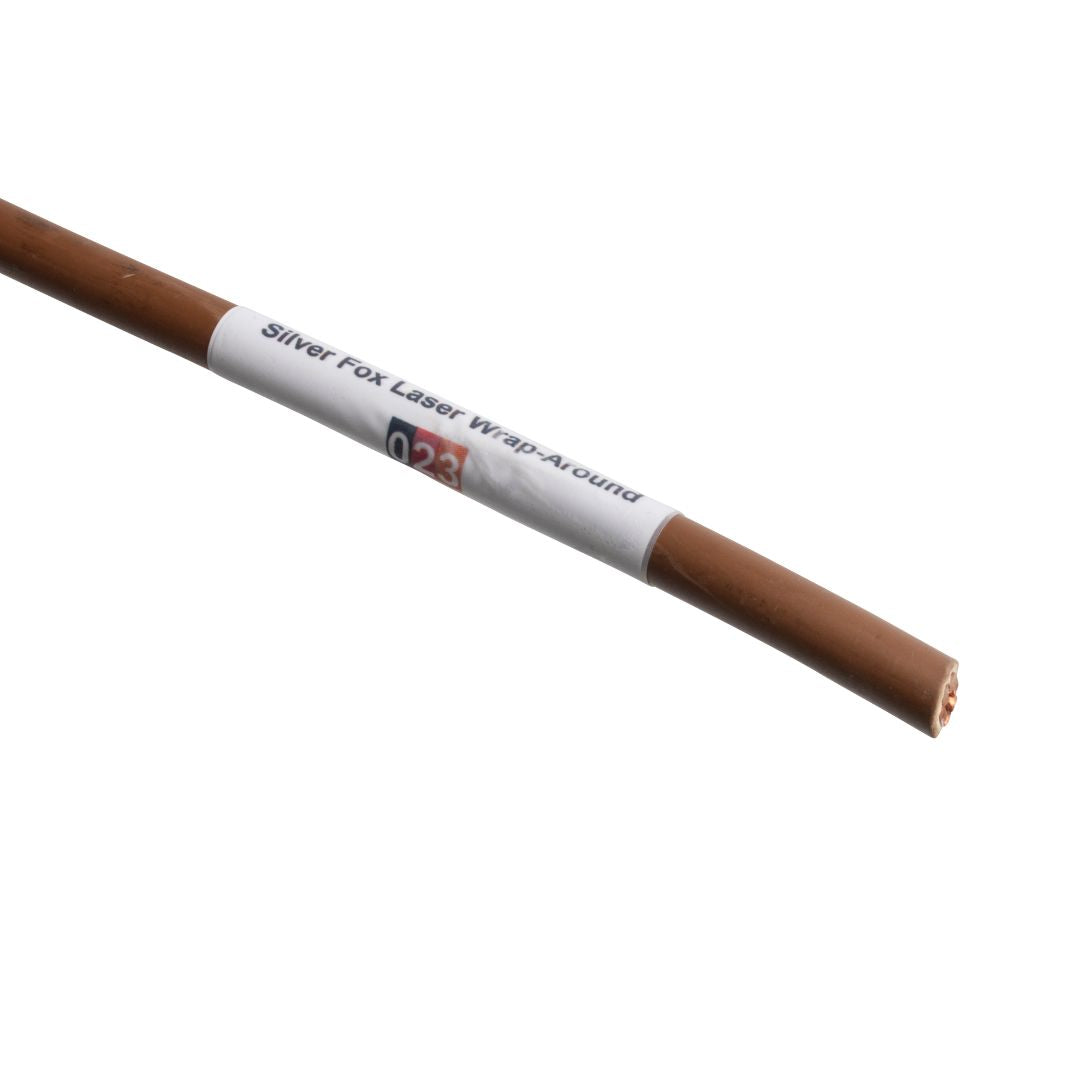

Prolab® polyethylene self-laminating wrap-around labels incorporate a strong, long-lasting acrylic adhesive and are ideal for data cabling. Supplied as A4 sheets for convenient printing through any ordinary office laser printer with its normal cartridge.

  • Laser Printable A4 Sheets
  • Large print areas available
  • Strong acrylic adhesive
  • Available for multiple diameters
  • Resistor color coding with a color laser printer and the Advanced or Professional Labacus Innovator® Software

Download Datasheet Here

*Barcoding/QR Coding/Graphics functionality is available via the Professional level Labacus Innovator®

When printing with the Labacus Innovator® software, the user will receive the following, free of charge:

  • Remote training to get you up and running as soon as possible.
  • Ongoing remote support to ensure you hit your project deadlines.
  • Feature updates to future-proof your investment so you stay on trend and don't need to buy a new solution next year.

SKU: P05/2508L(10)W | Labels Per Pack: 800
View full details

The Prolab® Range is Trusted by...

LASER RANGE

Print With Your Office Laser Printer & Labacus Innovator® Software

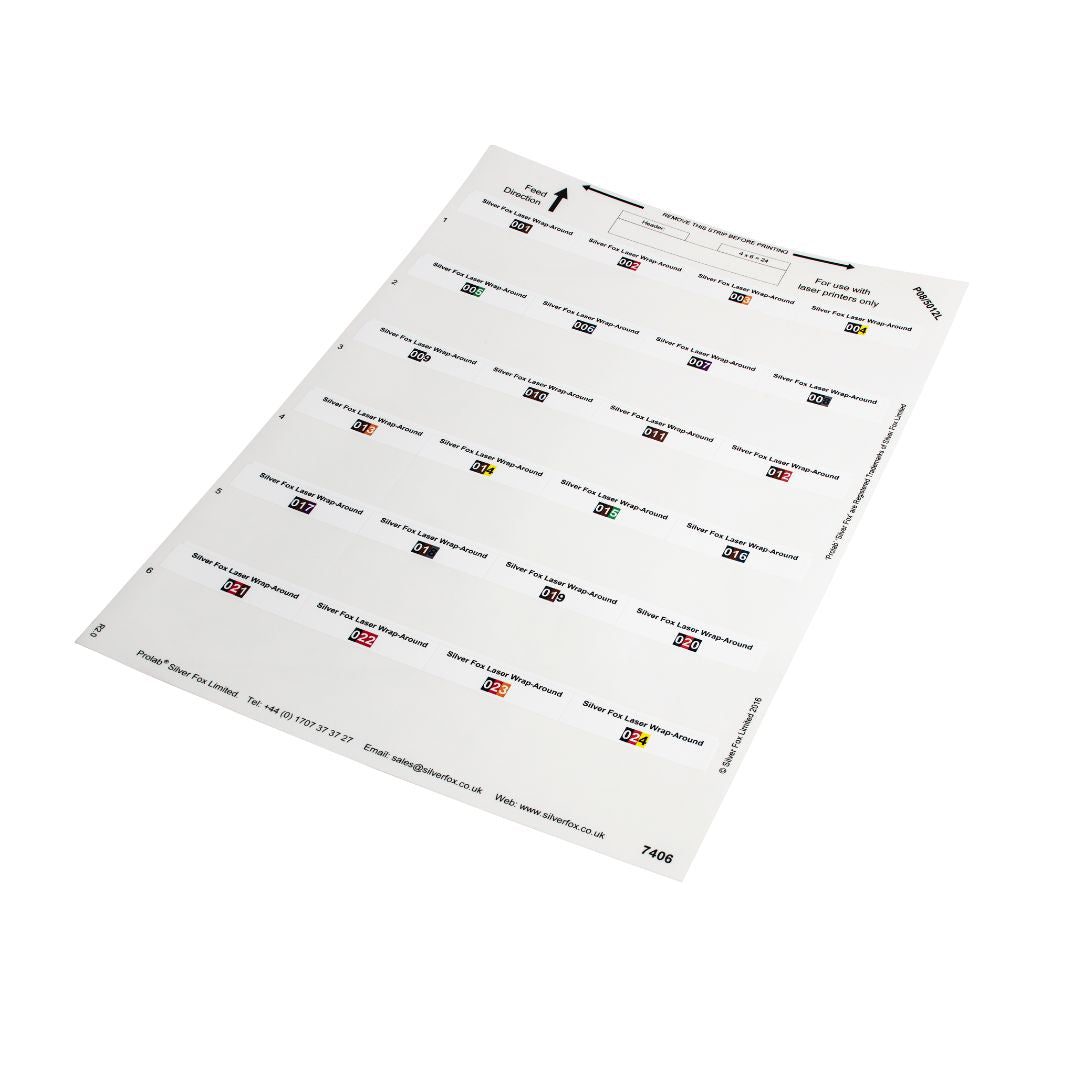

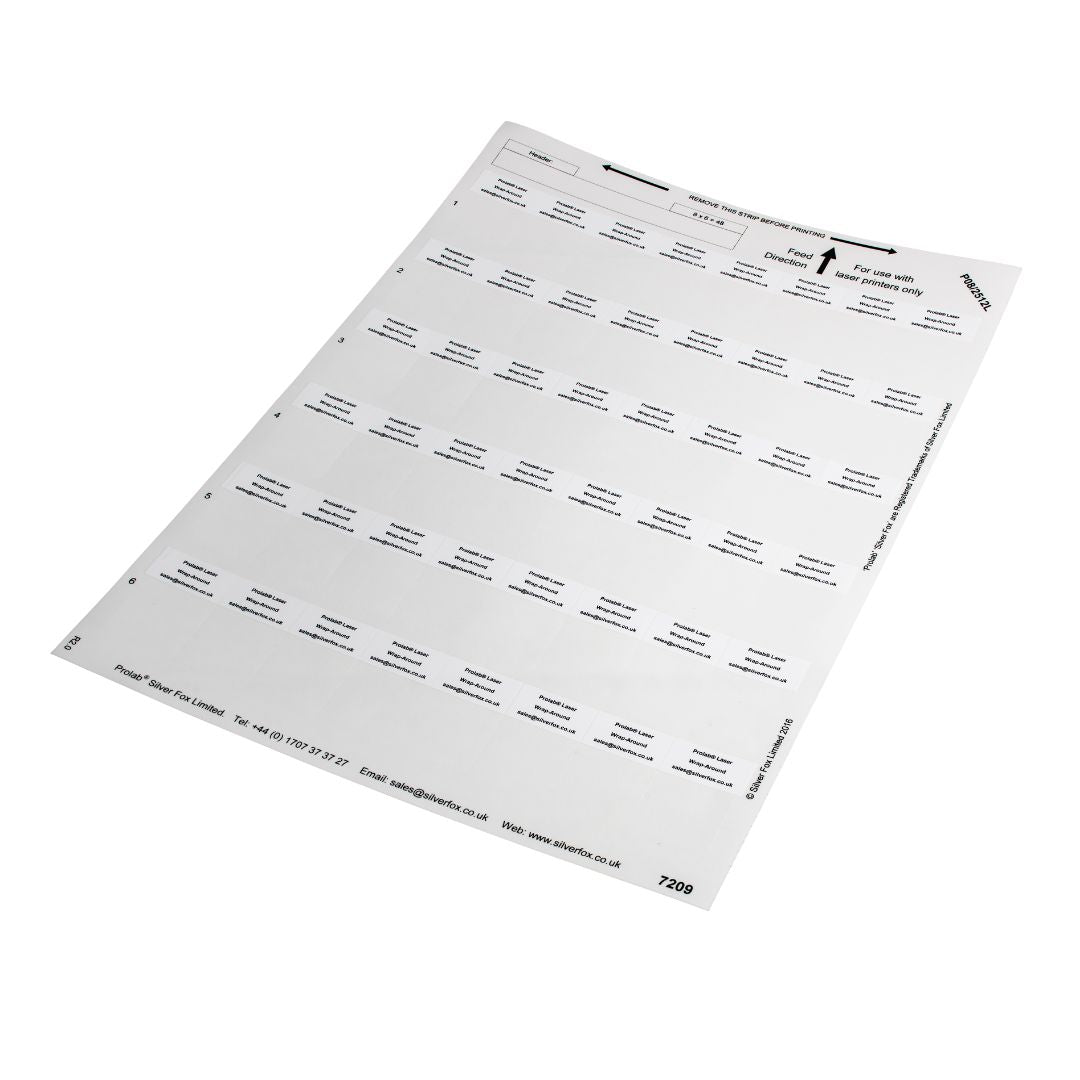

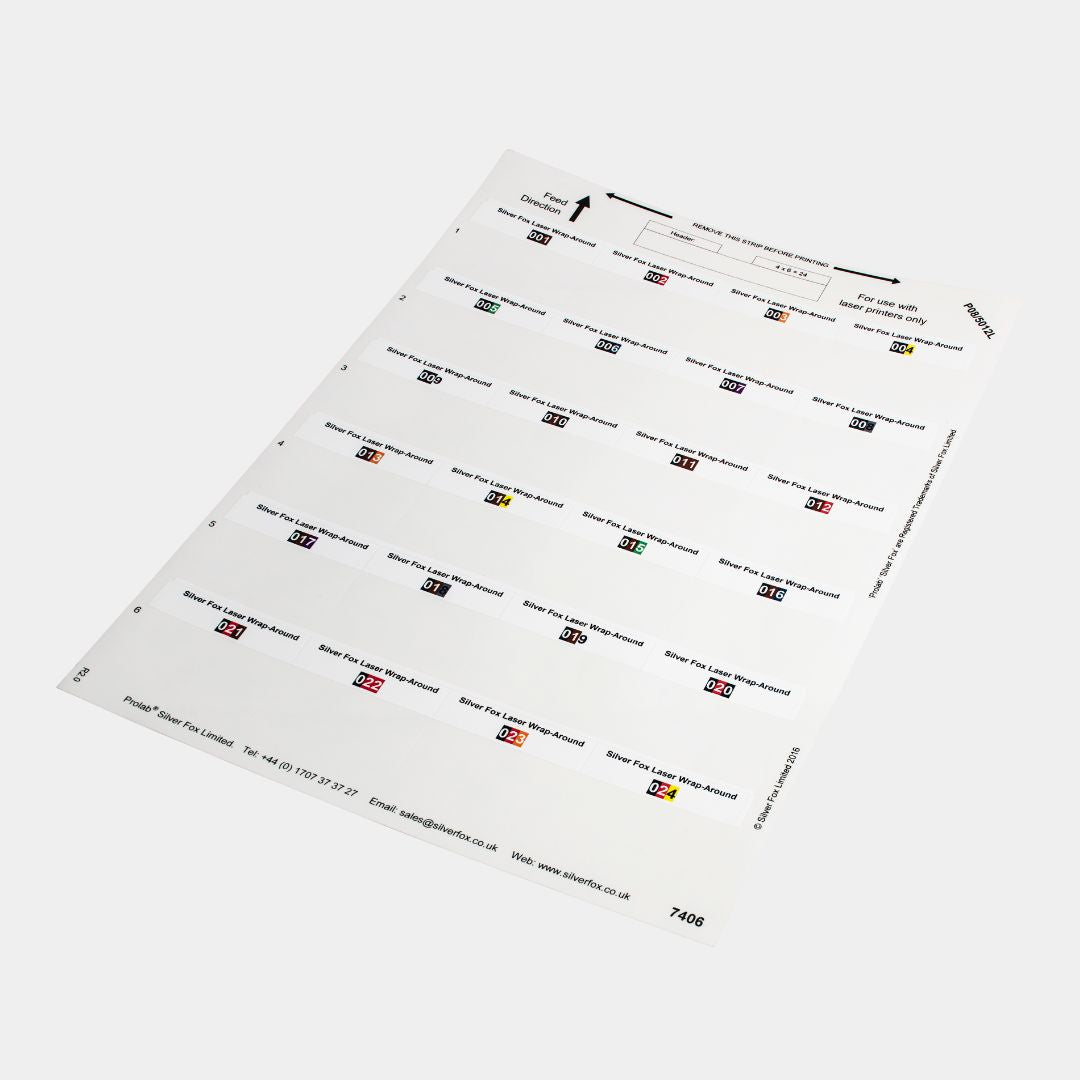

Print up to 90 labels in the same time it takes to print a piece of paper. Supplied in pre-perforated A4 sheets, the labels can then be easily removed from the sheet by folding along the perforations.

Purchase Prolab® Wrap-Around's

  • Print All Around The Cable

    By choosing the labels with the deeper print areas such as the P06/2419L this allows you to print your ID all around a 0.236 inches wide cable.

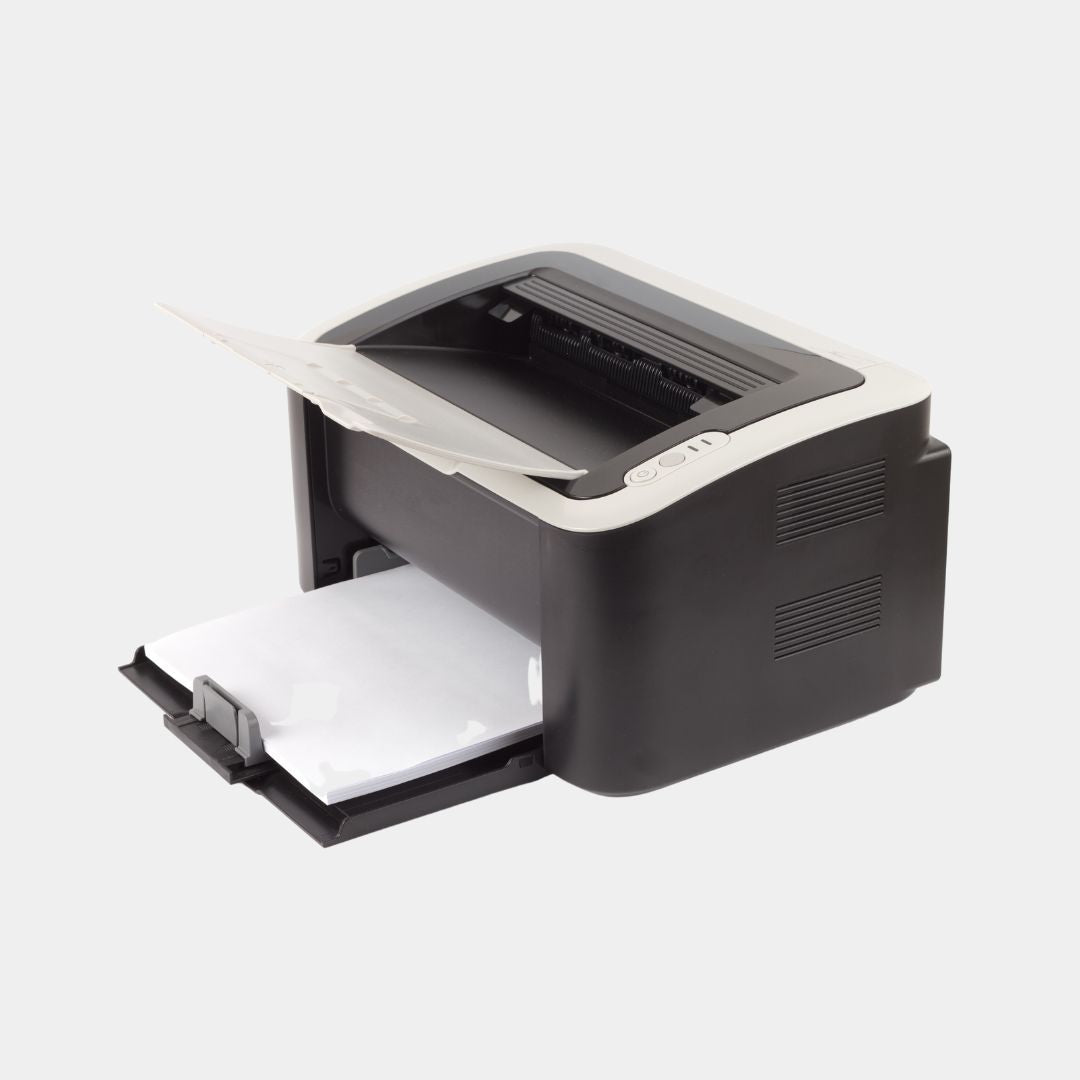

  • Print with Your Office Laser Printer

    Print 60 cable labels in the same time it takes to print a piece of paper. Supplied in pre-perforated A4 sheets, the labels can then be easily removed from the sheet by folding along the perforations.

  • Select from 3 Dimensions & 6 Colors

    Depending on your application, you can select from 3 industry specific dimensions that can be supplied in either yellow, white, orange, blue, red & green.

Purchase With Labacus Innovator & Receive...

  • Free of charge training
  • Free of charge support

Technical Information

Material Specification

  • Polyester
  • Thickness: 25 micron
  • Sheet Size: A4

Available Dimensions

  • Cable OD Ø (inches): 0.512-0.669, 0.669-0.787, 0.157-0.197, 0.236-0.315, 1.42, 0.197, 0.197-0.236, 0.197-0.315, 0.197-0.512, 0.315-0.512, 0.315-0.669, 0.394-0.787
  • Printable Area (inches): 0.984×0.315, 0.984 x 0.748, 0.472 x 0.472, 0.984 x 0.472, 1.97 x 0.472, 0.984 x 0.787, 1.97 x 0.787, 0.984 x 0.984

*To help you identify the label size you require, the maximum cable OD Ø diameter and printable area are included in the order code e.g.; P08/2512L Cable OD Ø = 0.315 inches Printable area

**Available in packs of 10 or 100 sheets

Product Testing

  • Independently tested to 185°F for 1000 hours.
  • Tested for Salt Mist Spray according to Lloyds Register Type Approval System.
  • Low Temperature MIL-STD-810F Method 502.4 - 72 hours @ -40°F
  • Elevated Temperature* MIL-STD-202G Method 108A - 2000 hours @ 158°F to 212°F
  • H2S Sour Gas Exposure (2% H2S)
  • UV Weathering ISO 4982 Part 3 Method A Cycle 1 - 500 hours*
  • Salt Mist Spray IEC60068-2-52 Test Kb Salt Mist (Cyclic)
  • Reach Compliant: Yes

Printing & Software Requirements

  • Print with your regular office laser printer
  • Labacus Innovator® Basic/Advanced/Professional - Windows Only
  • All templates included in Labacus Innovator® Software. To trial labels, no need to buy software. Download FOC Lite software (includes 3 days trial FOC of Basic/Advanced/Professional levels).

*For more information call our Sales Team on +1 (833) 848-8484 or email sales@silverfoxlabeling.com

Printable Area

  • PROLAB® Self-Lam Cable Label =<0.197 inches - 0.984x0.315 | P05/2508L: 0.866 x 0.283 inches
  • PROLAB® Self-Lam Cable Label =<0.236 inches - 0.984x0.748 | P06/2519L: 0.886 x 0.669 inches
  • PROLAB® Self-Lam Cable Label =<0.315 inches - 0.472x0.472 | P08/1212L: 0.453 x 0.472 inches
  • PROLAB® Self-Lam Cable Label =<0.315 inches - 0.984x0.472 | P08/2512L: 0.886 x 0.394 inches
  • PROLAB® Self-Lam Cable Label =<0.315 inches - 1.97x0.472 | P08/5012L: 1.81 x 0.394 inches
  • PROLAB® Self-Lam Cable Label =<0.512 inches - 0.984x0.787 | P13/2520L: 0.866 x 0.709 inches
  • PROLAB® Self-Lam Cable Label =<0.512 inches - 1.97x0.787 | P13/5020L: 1.89 x 0.748 inches
  • PROLAB® Self-Lam Cable Label =<0.669 inches - 0.984x0.984 | P17/2525L: 0.866 x 0.906 inches
  • PROLAB® Self-Lam Cable Label =<0.787 inches - 0.984x0.787 | P20/2520L: 0.906 x 0.728 inches
  • PROLAB® Self-Lam Cable Label =<0.787 inches - 1.97x0.787 | P20/5020L: 1.81 x 0.709 inches
  • PROLAB® Self-Lam Cable Label =<1.42 inches - 0.984x0.472 | P36/2515L: 0.925 x 0.551 inches

Available Colors

Depending on size - up to 5 colors available: White, Yellow, Blue, Red & Green.

Storage Instructions

  • Storage Instructions Store between 50ºF (10ºC) and 77ºF (25ºC)
  • Conditions Keep in dark conditions
  • Humidity Resistance 35% to 65% RH

LASER RANGE

Typical Applications

Typical applications include: LAN’s, Data Centres, and Industrial Ethernet as well as marine data applications.

Purchase Prolab® Wrap-Around's

Why should you choose our laser labels?

LASER RANGE

Print With Your Office Laser Printer & Labacus Innovator® Software

Since no special equipment is required, up to 90 labels can be printed in 20 seconds (the time it takes for the sheet to run through the printer) - using this solution is simple and fast.
