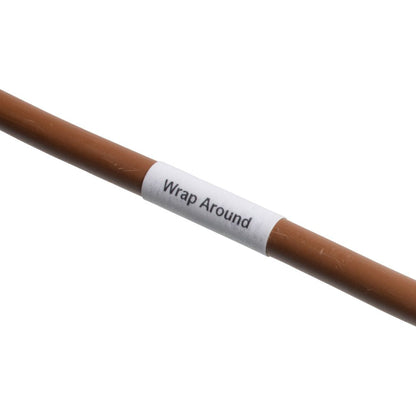

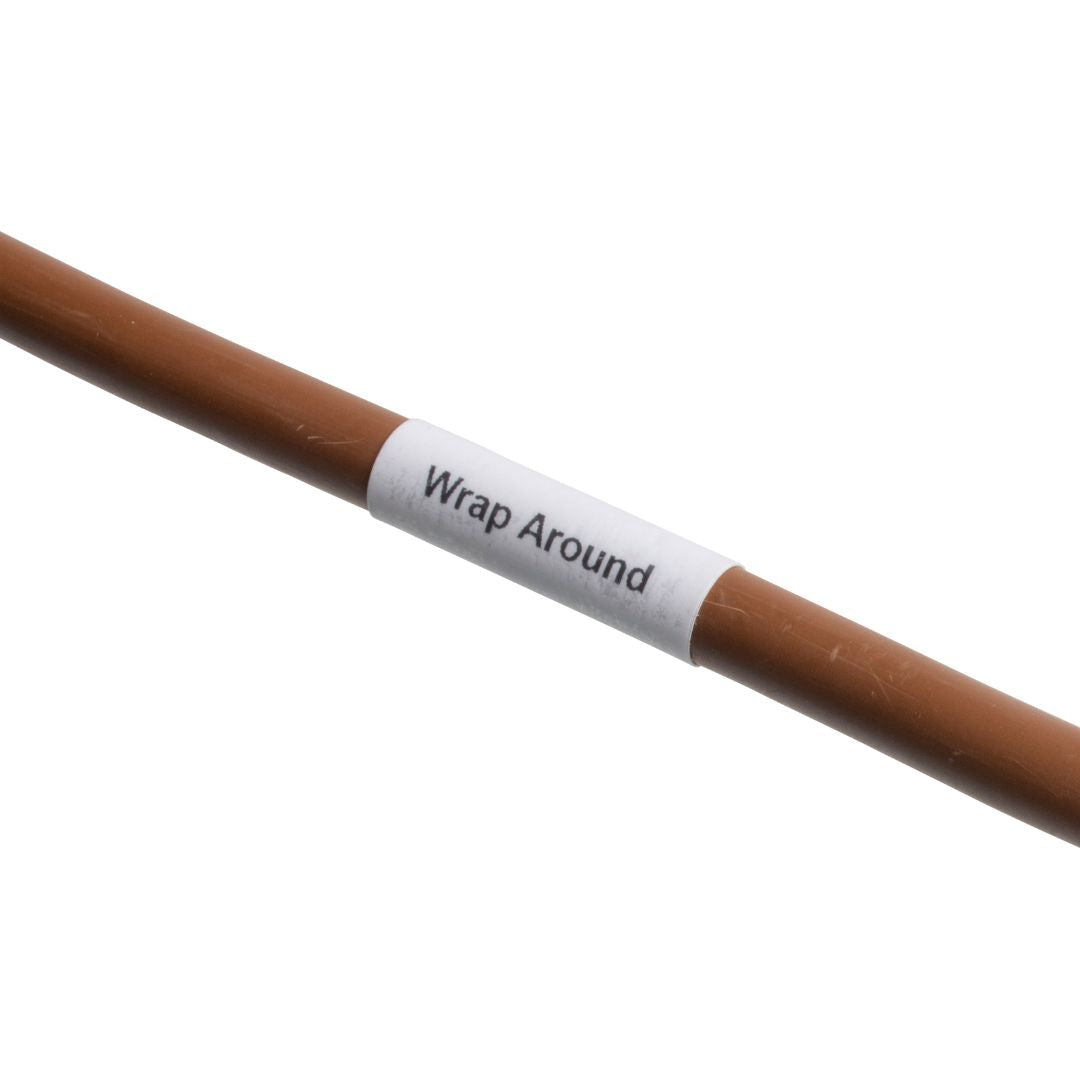

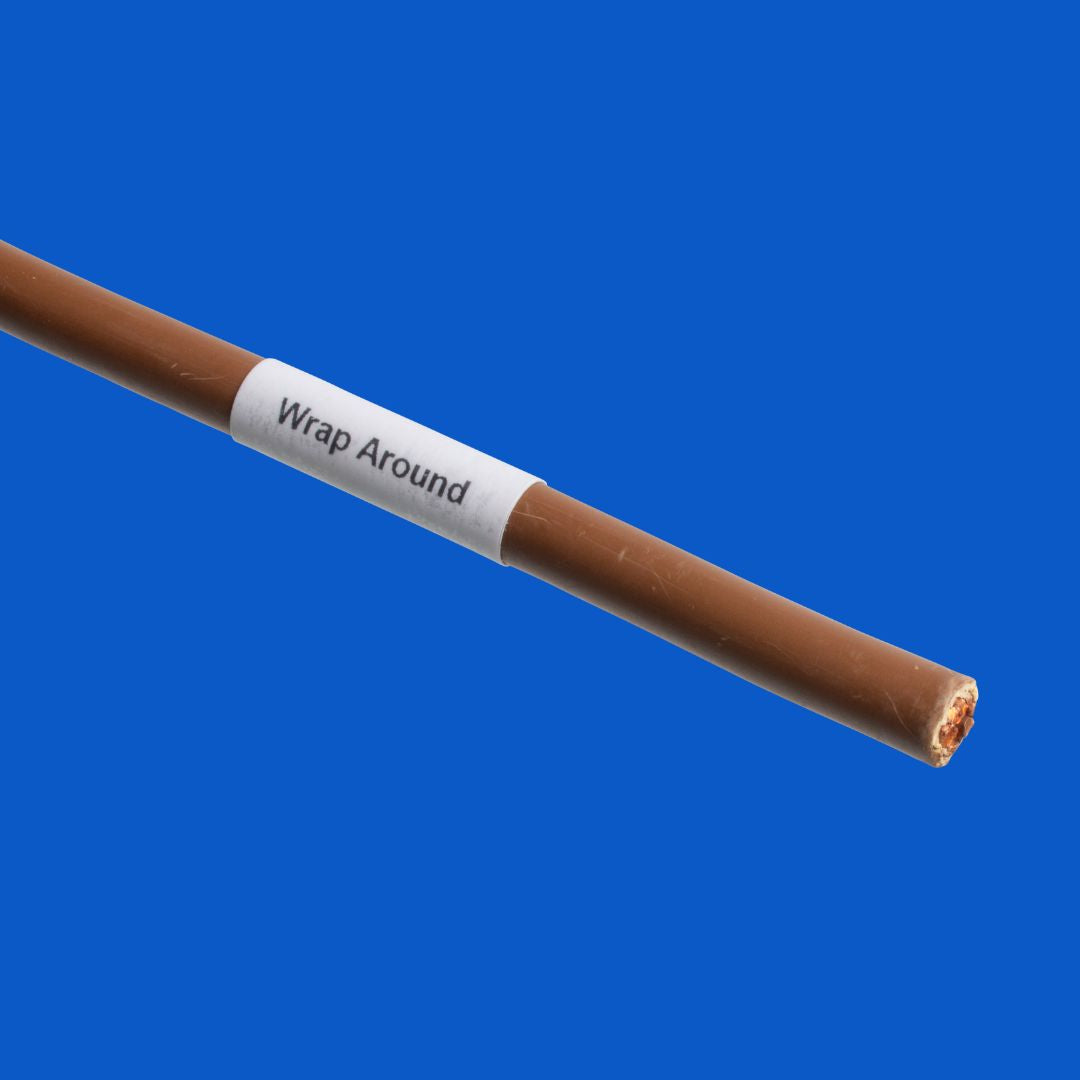

Prolab® Thermal Self-laminating wrap-around cable labels
Prolab® Thermal Self-laminating wrap-around cable labels
Prolab® polyethylene self-laminating wrap-around labels incorporate a strong long lasting acrylic adhesive and are ideal for data cabling. With our recyclable all-in-one delivery, storage and dispenser boxes they can be rapidly printed with Silver Fox’s premium Fox-in-a-Box® thermal printer.
- Rapid printing with the Fox-in-a-Box®
- 5000 labels supplied per roll
- Large print areas available
- Strong acrylic adhesive
- Available for multiple diameters
Download Datasheet Here
*Barcoding/QR Coding/Graphics functionality is available via the Professional level Fox-in-a-Box®
SKU:SKU: PSA1/07/2512T | Labels Per Roll: 5000
Share
The Prolab® Range is Trusted by...
Time Saving with Prolab® Thermal wrap-arounds
Prolab® Thermal wrap-arounds are supplied in rolls of 5000! With our Fox-in-a-Box® thermal printer you can print at a rapid pace of 32 labels per second saving your engineers time and resources.
-
Print All Around The Cable
By choosing the labels with the deeper print areas this enables you to print IDs that are visible on all sides around the cable for quick identification.
-
Multiple Diameters & Print Areas
The labels incorporate a highly opaque printable area ensuring excellent levels of clarity for your message whatever the color of the cable. We offer both 0.984 and 1.97 inch width labels -the latter is useful for longer ID’s.
-

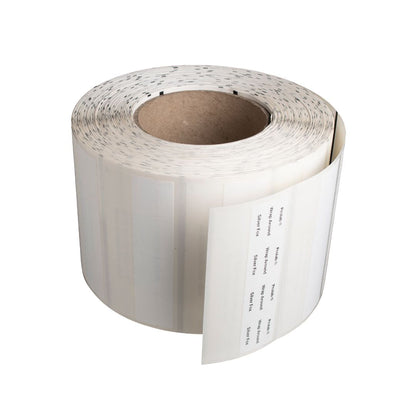

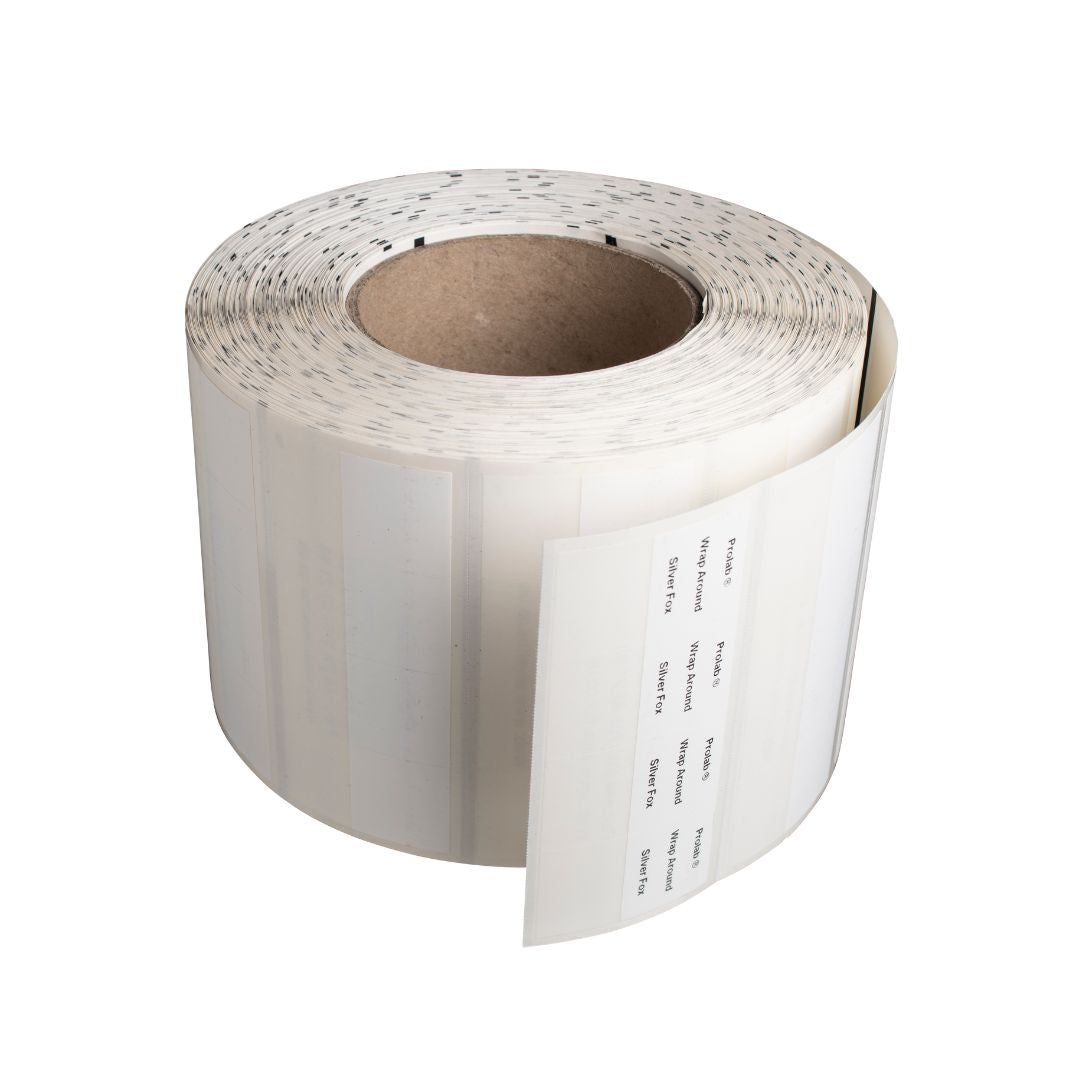

5000 Label Per Roll
Each roll boasts an impressive 5,000 labels, providing a substantial quantity to support long production cycles and minimize downtime due to roll changes.
And that's not all!
- Includes free of charge training
- Includes free of charge support
Technical Information
Material Specification
- Material: Polyethylene
- Thickness: 105 micron
Available Dimensions
- Cable Outer Diameter Ø (inches): 0.197 - 0.276, 0.197 - 0.315, 0.197 - 0.315
- Printable Area (inches): 0.984 x 0.472, 0.984 x 0.748, 0.984 x 0.945
Product Testing
- Reach Compliant: Yes
- Elevated Temperature*: MIL-STD-202G Method 108A - 2000 hrs @ 158°F to 212°F.
- Low Temperature: MIL-STD-810F Method 502.4 - 72 hrs @ 104°F.
- H2S Sour Gas: Exposure (2% H2S)
- Salt Mist Spray: EC60068-2-52 Test Kb Salt Mist (Cyclic)
- UV Weathering: ISO 4982 Part 3 Method A Cycle 1 - 500 hrs
Printing & Software Requirements
- To achieve the best printing results, we recommend using a Fox-in-a-Box® DTP-1 thermal printer along with TSR3/300 thermal transfer ribbons.
- Print via Fox-in-a-Box® thermal printer using ‘One software, One printer, One ribbon’ for our complete range of thermal labels. A 984ft thermal ribbon will yield approximately 23,000 x 0.984in labels.
*For more information call our Sales Team on +1 (833) 848-8484 or email sales@silverfoxlabeling.com
Printable Area
- PROLAB® Self-Lam Cable Label ≤0.236 inches - 0.984 x 0.748 | PSA1/06/2519T: 0.906 x 0.709 inches
- PROLAB® Self-Lam Cable Label ≤0.276 inches - 0.984 x 0.472 | PSA1/07/2512T: 0.866 x 0.394 inches
- PROLAB® Self-Lam Cable Label ≤0.315 inches - 0.984 x 0.945 | PSA1/08/2524T: 0.906 x 0.866 inches
Available Colors
- White
Storage Instructions
- Storage Instructions: Store between 50ºF (10ºC) and 77ºF (25ºC)
- Conditions: Keep in dark conditions
- Humidity Resistance: 35% to 65% RH
Typical Applications
Ideal applications would be industrial Ethernet, data centres etc.
How to load Prolab® Thermal Wrap-Arounds

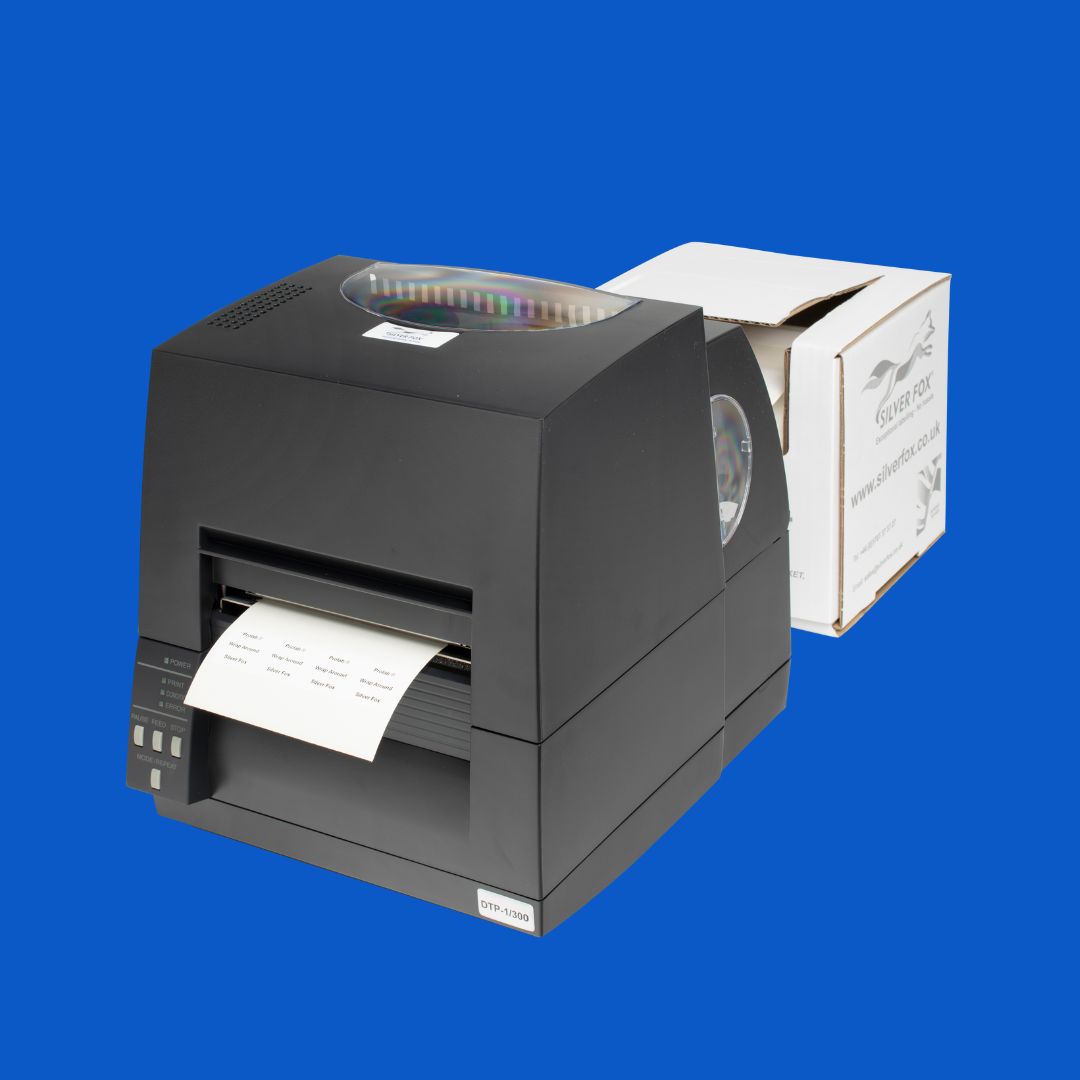

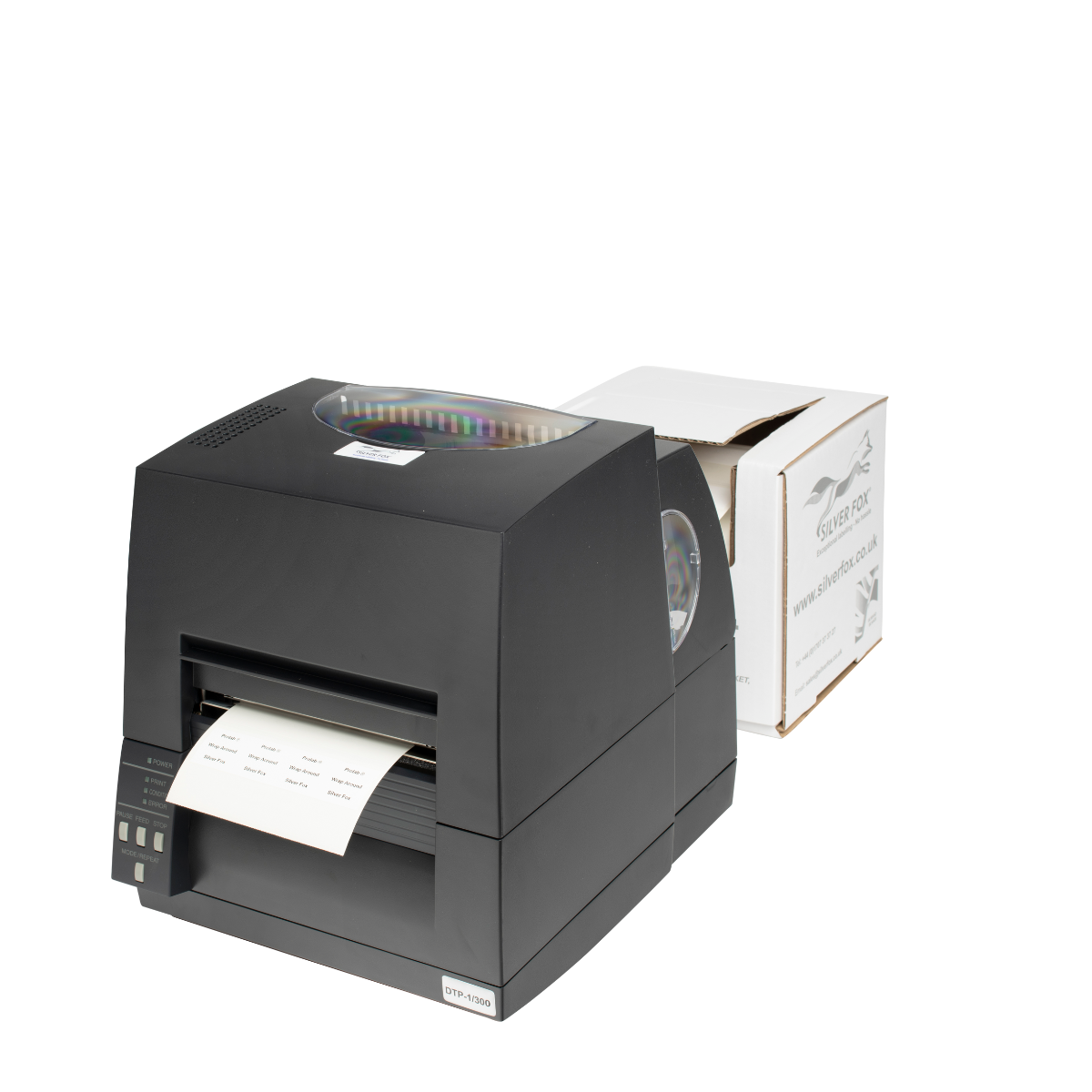

Print via the Fox-in-a-Box®
Designed for seamless compatibility, the Fox-in-a-Box® integrates with the Prolab® Thermal Self-laminating wrap-around cable label range, ensuring optimal printing results. With the included Labacus Innovator® software, you can easily design and customize your labels, incorporating essential information, symbols, and barcodes.
FAQs
What is the shrink ratio of Legend™ LSZH Heatshrink Rolls?
This product has a 2:1 shrink ratio.
What are the best conditions for Legend™ LSZH Heashrink rolls to be used in?
The best conditions for Legend™ LSZH heatshrink labels are internal usage within public buildings such as airports, museums and so on. They are also suited for the conditions that are needed for rail and metro applications.
How do I edit and print what I want onto the Legend™ LSZH Heatshrink rolls?
You can edit what you want written on your label by using our Labacus Innovator software which has 3 separate levels so you can the software type that is most suited for your needs. Using this software alongside our one-of-a-kind Fox-In-A-Box® Thermal printer you will be able to add, edit and print any text, graphics or QR/Barcodes onto your labels.
Can I print more than one roll at a time?
Yes! When using the advanced or professional level of the software you can print 2 rolls at the same time. As an added bonus if you are using the professional level of the Labacus Innovator software you can print both end of the wire at the same time using our special cross ferruling feature.
What is the maximum operating temperature of these labels?
The maximum operating temperature for these labels is 221°F
